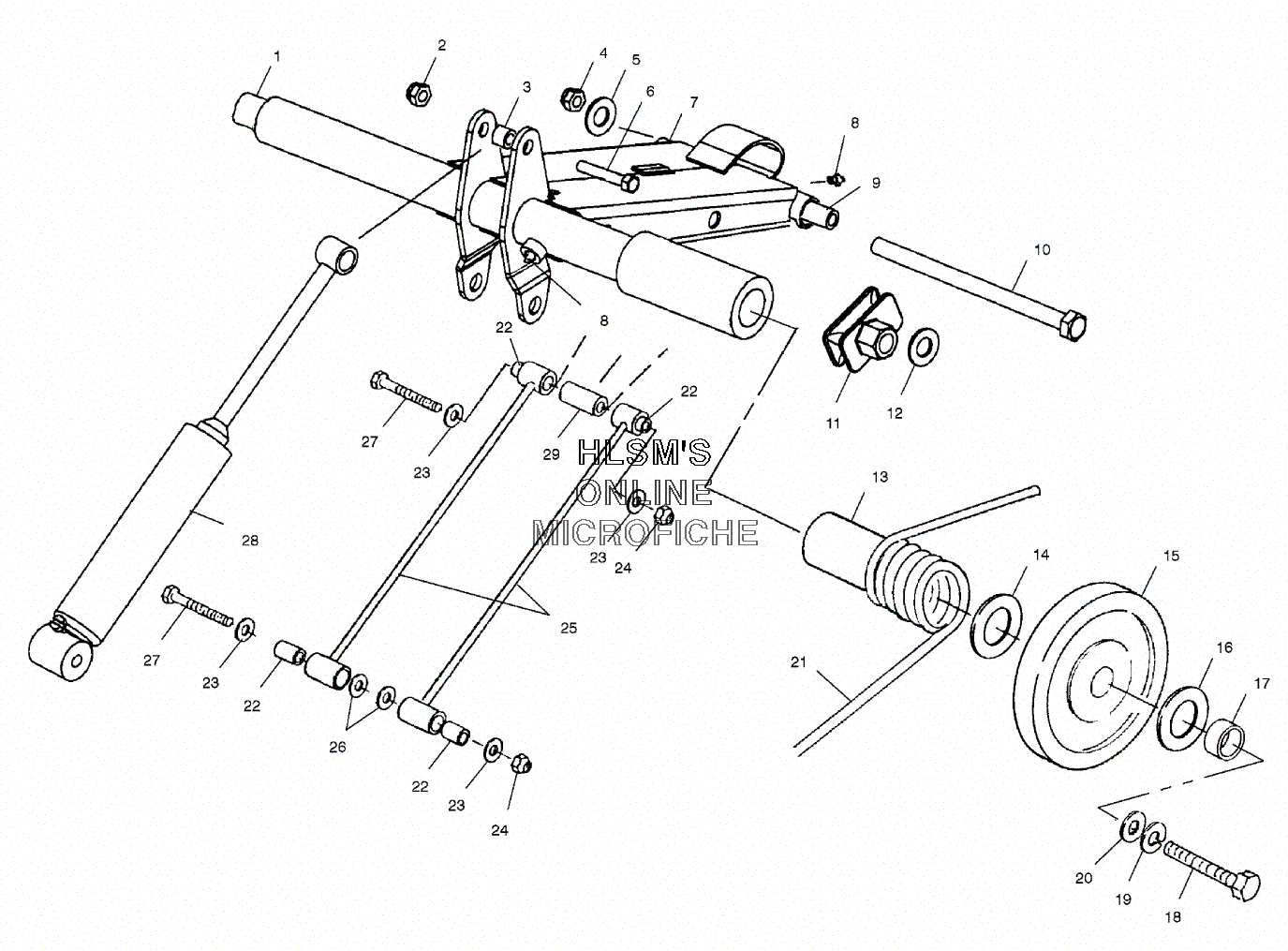

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris INDY 340 DELUXE (S01LD3AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5131996 SHAFT, MTG (REAR)
    SHAFT, MTG (REAR)
  • 2
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 3
    5132217 BUSHING
    BUSHING
  • 4
    7542319 NUT FLEX LOC
    NUT FLEX LOC
  • 5
    7558402 WASHER STEEL
    WASHER STEEL
  • 6
    7515433 BOLT
    BOLT
  • 7
    1541373-067 TORQUE ARM (BLACK/REAR)
    TORQUE ARM (BLACK/REAR)
  • 8
    7080424 FITTING, LUBE.
    FITTING, LUBE.
  • 9
    5333483 TUBE
    TUBE
  • 10
    7517757 SCREW
    SCREW
  • 11
    5431168 ROLLER, SPRING ADJUST
    ROLLER, SPRING ADJUST
  • 12
    7080394 CLIP
    CLIP
  • 13
    5521234 TUBE, SPRING
    TUBE, SPRING
  • 14
    7555877 WASHER, THRUST
    WASHER, THRUST
  • 15
    1543022 WHEEL, CARRIER, ASSY.
    WHEEL, CARRIER, ASSY.
  • 15
    3513504 BEARING-5/8I.D. (1 PER WHEEL)
    BEARING-5/8I.D. (1 PER WHEEL)
  • 15
    7710403 RETAINER (1 PER WHEEL)
    RETAINER (1 PER WHEEL)
  • 16
    7555726 WASHER
    WASHER
  • 17
    5332730 SPACER, CARR. WHEEL
    SPACER, CARR. WHEEL
  • 18
    7517435 BOLT
    BOLT
  • 19
    7552603 WASHER
    WASHER
  • 20
    7555893 WASHER
    WASHER
  • 21
    7041521-067 SPRING, TORS, .406X82 DEG (STD) (BLACK/LEFT)
    SPRING, TORS, .406X82 DEG (STD) (BLACK/LEFT)
  • 21
    7041522-067 SPRING TORS (STD) (RIGHT)
    SPRING TORS (STD) (RIGHT)
  • 21
    7041555-067 SPRING, TORS .393/77DEG. (OPT) (LEFT)
    SPRING, TORS .393/77DEG. (OPT) (LEFT)
  • 21
    7041556-067 SPRING, TORS, .393/77DEG. (OPT) (RIGHT)
    SPRING, TORS, .393/77DEG. (OPT) (RIGHT)
  • 21
    7041557-067 SPRING, TORS, .393/80DEG. (LEFT)
    SPRING, TORS, .393/80DEG. (LEFT)
  • 21
    7041558-067 SPRING, TORS, .393/80DEG. (RIGHT)
    SPRING, TORS, .393/80DEG. (RIGHT)
  • 22
    5020561 BUSHING, PIVOT TUBE
    BUSHING, PIVOT TUBE
  • 23
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 24
    7542411 NUT LOCK
    NUT LOCK
  • 25
    1541154-067 ROD, SHOCK (BLACK)
    ROD, SHOCK (BLACK)
  • 26
    7555957 WASHER
    WASHER
  • 27
    7515472 BOLT
    BOLT
  • 28
    7041331 SHOCK, TORQUE ARM (REAR)
    SHOCK, TORQUE ARM (REAR)
  • 29
    5333420 SPACER
    SPACER
