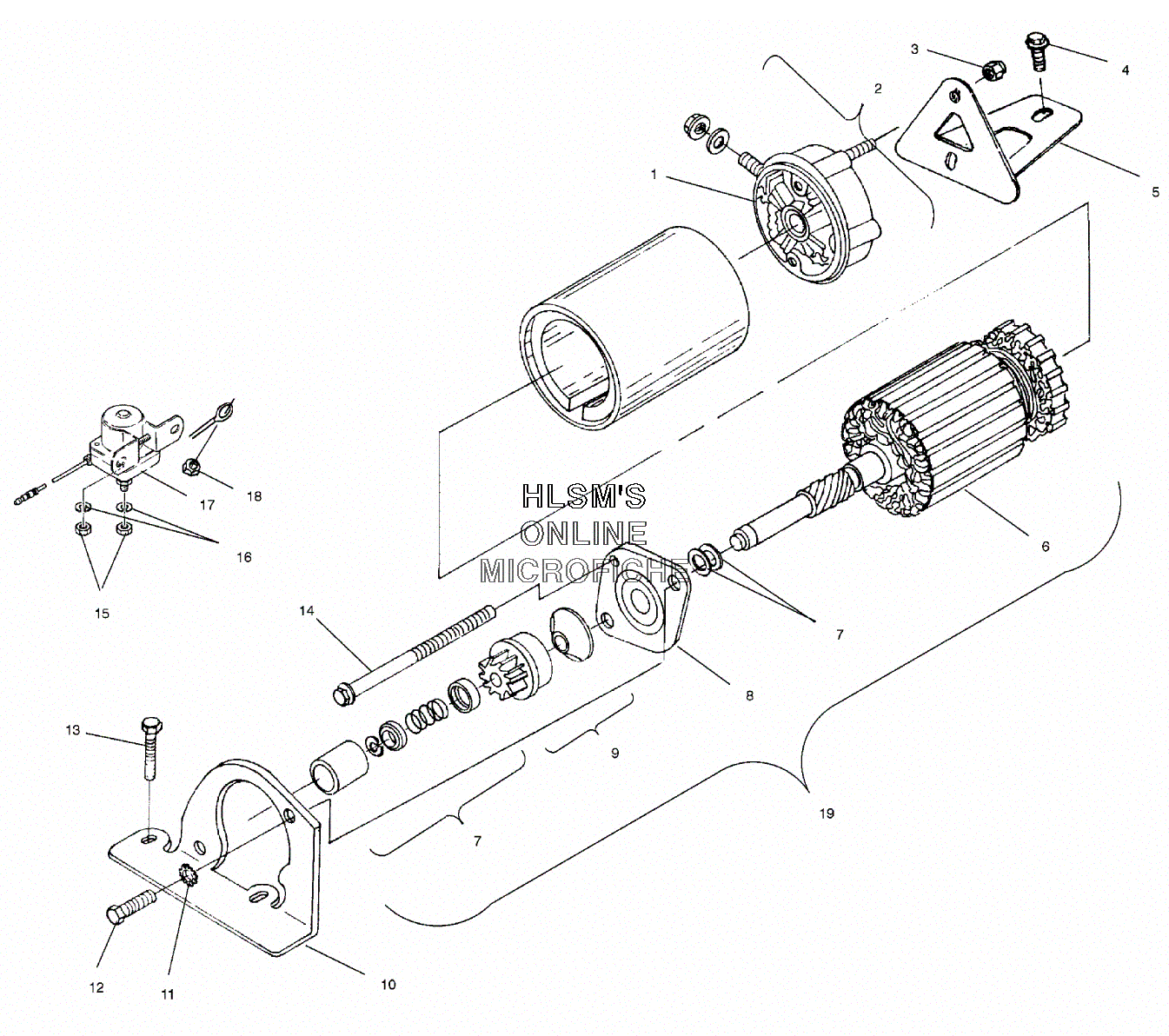

STARTING MOTOR для Polaris INDY 340 DELUXE (S01LD3AS) - 2001 года выпуска`
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
22200758 COMMUTATOR CAP ASSY. (INCL.1)COMMUTATOR CAP ASSY. (INCL.1)
-
37542153 NUTNUT
-
47516815 SCREWSCREW
-
55241786 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
62200756 ARMATURE ASSY.ARMATURE ASSY.
-
72200755 DRIVE HDWE. KITDRIVE HDWE. KIT
-
82200757 DRIVECAP ASSY.DRIVECAP ASSY.
-
92200754 DRIVE ASSY.DRIVE ASSY.
-
105241316 BRACKET, STARTER, (3/LITE) (FRONT)BRACKET, STARTER, (3/LITE) (FRONT)
-
117552603 WASHERWASHER
-
127512492 SCREWSCREW
-
137516730 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
142200753 KIT, SCREWKIT, SCREW
-
153082939 NUTNUT
-
163080077 WASHER SPRINGWASHER SPRING
-
173083211 SWITCH, MAGNETIC (INCL. 15, 16)SWITCH, MAGNETIC (INCL. 15, 16)
-
187542103 NUT, LOCKNUT, LOCK
-
194170006 MOTOR, STARTER (DOMESTIC)MOTOR, STARTER (DOMESTIC)
