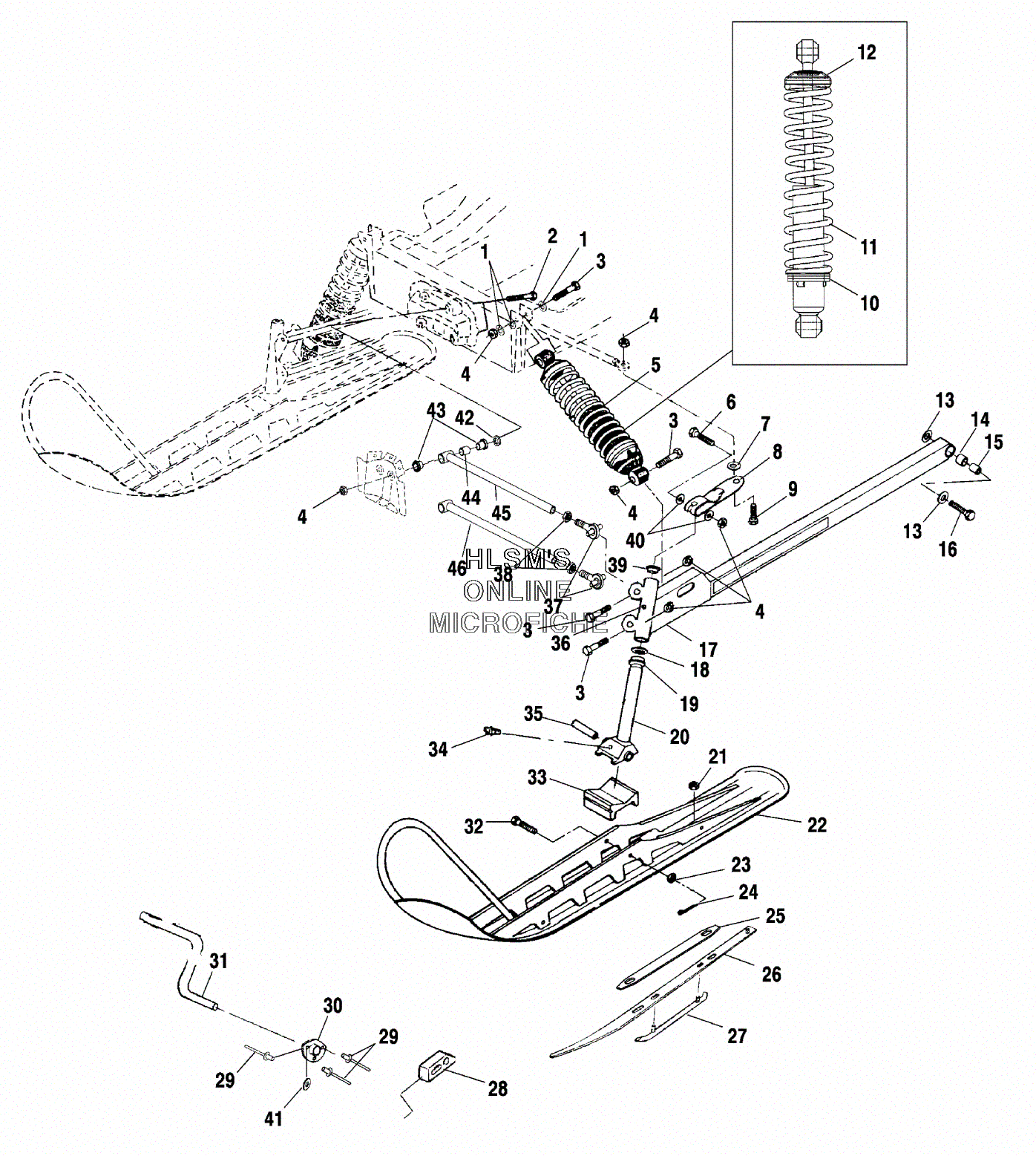

SUSPENSION - FRONT W/ SKI для Polaris INDY 340 DELUXE (S01LD3AS) - 2001 года выпуска
-
№АртикулНазвание
-
17555806 WASHERWASHER
-
27515417 BOLTBOLT
-
37515415 BOLTBOLT
-
47542439 NUT, NYLOKNUT, NYLOK
-
57041788 SHOCK-IFS, NITREXSHOCK-IFS, NITREX
-
67517583 SCREWSCREW
-
77555976 WASHERWASHER
-
85220326-067 ARM, STEERINGARM, STEERING
-
97515528 BOLTBOLT
-
105210953 SPACER, SHOCK RETAINERSPACER, SHOCK RETAINER
-
117041261-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
125220225 RETAINER (TOP)RETAINER (TOP)
-
137555721 WASHERWASHER
-
145410382 PIVOT, TRAILING ARMPIVOT, TRAILING ARM
-
155010187 TUBE, TRAILING ARMTUBE, TRAILING ARM
-
167512557 BOLTBOLT
-
171823136-067 ARM, TRAILING (BLACK/LEFT)ARM, TRAILING (BLACK/LEFT)
-
171823137-067 ARM, TRAILING (BLACK/RIGHT)ARM, TRAILING (BLACK/RIGHT)
-
187556509 WASHER SPECIALWASHER SPECIAL
-
193574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
206230073-067 SPINDLE (BLACK)SPINDLE (BLACK)
-
217542324 NUTNUT
-
221820333-067 SKI (BLACK)SKI (BLACK)
-
237542438 NUT, CASTLENUT, CASTLE
-
247661209 PIN, COTTERPIN, COTTER
-
255245145-067 SHIM, SKAG PLATE (BLACK)SHIM, SKAG PLATE (BLACK)
-
261011829-067 PLATE, SKAGPLATE, SKAG
-
271820318-067 SKAG (BLACK)SKAG (BLACK)
-
285410384 SLIDE, SWAYBARSLIDE, SWAYBAR
-
297621477 RIVETRIVET
-
305410383 BUSHING, SWAYBARBUSHING, SWAYBAR
-
315243397-067 SWAY BAR, 9/16 (BLACK)SWAY BAR, 9/16 (BLACK)
-
327515462 BOLTBOLT
-
335521231 STOP, RUBBERSTOP, RUBBER
-
347080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
377060157 ROD END-7/16, 1.41''WD, 3/8 BR (RIGHT)ROD END-7/16, 1.41''WD, 3/8 BR (RIGHT)
-
387542520 NUT JAMNUT JAM
-
393573909 BUSHING, FLANGEBUSHING, FLANGE
-
407555832 WASHERWASHER
-
417555904 BURR, RIVETBURR, RIVET
-
427555797 WASHERWASHER
-
435431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
445010252 BUSHINGBUSHING
-
451820658-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
461820660-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
