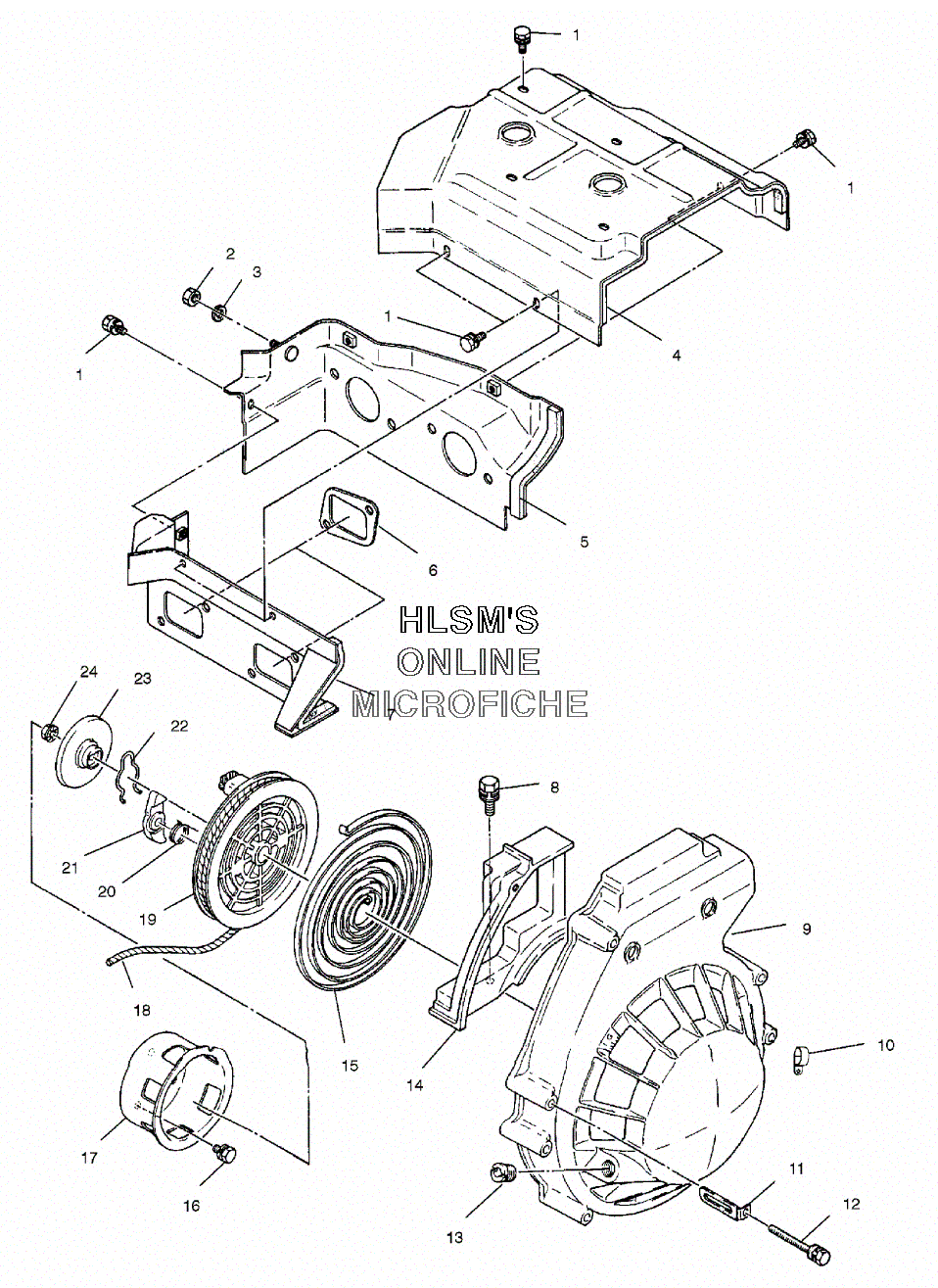

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris INDY 340 DELUXE (S01LD3AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3083715 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 2
    3084375 NUT
    NUT
  • 3
    3080077 WASHER SPRING
    WASHER SPRING
  • 4
    3084420 BAFFLE#1 CYL.
    BAFFLE#1 CYL.
  • 5
    3084421 BAFFLE#2 CYL.
    BAFFLE#2 CYL.
  • 6
    3085846 GASKET, INTAKE
    GASKET, INTAKE
  • 7
    3085847 CYLINDER, BAFFLE (INCL. 6-7)
    CYLINDER, BAFFLE (INCL. 6-7)
  • 8
    3081663 BOLT AND WASHER
    BOLT AND WASHER
  • 9
    3083588 RECOIL STARTER (INCL. 9, 13, 15, 18-24)
    RECOIL STARTER (INCL. 9, 13, 15, 18-24)
  • 9
    3083589 CASE, STARTER
    CASE, STARTER
  • 10
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 11
    3083590 CLAMP
    CLAMP
  • 12
    3083729 BOLT AND WASHER
    BOLT AND WASHER
  • 13
    3083107 GUIDE, ROPE
    GUIDE, ROPE
  • 14
    3083591 HOUSING, BLOWER #2
    HOUSING, BLOWER #2
  • 15
    3083376 SPRING, SPIRAL
    SPRING, SPIRAL
  • 16
    3081665 BOLT
    BOLT
  • 17
    3083108 PULLEYSTARTING
    PULLEYSTARTING
  • 18
    2870621 ROPE, 100 FT, NYL. STARTER (BULK, CUT TO FIT)
    ROPE, 100 FT, NYL. STARTER (BULK, CUT TO FIT)
  • 19
    3083377 REEL, REWIND
    REEL, REWIND
  • 20
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 21
    3083378 RATCHET
    RATCHET
  • 22
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 23
    3083464 PLATE, FRICTION
    PLATE, FRICTION
  • 24
    3083381 NUT, FLANGE
    NUT, FLANGE
