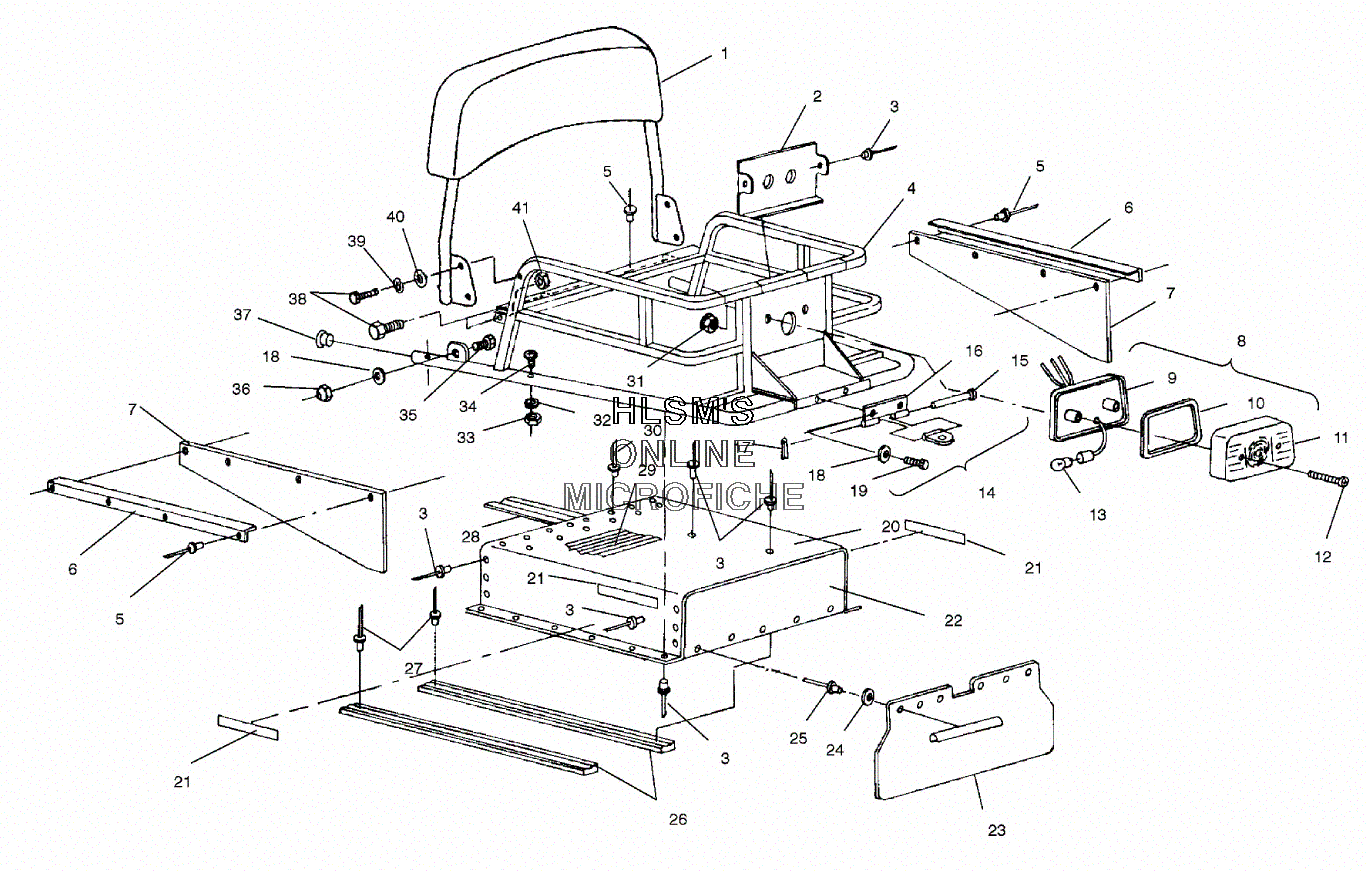

TUNNEL EXTENSION ASSEMBLY W/RACK для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2682640 BACKREST ASSY. (P1116) (INCL. 2)
    BACKREST ASSY. (P1116) (INCL. 2)
  • 1
    2682678 BACKREST COVER ASSY.
    BACKREST COVER ASSY.
  • 2
    5222868-067 SHIELD, TAILLIGHT
    SHIELD, TAILLIGHT
  • 3
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 4
    1012076-067 RACK, 'LX' (BLK)
    RACK, 'LX' (BLK)
  • 5
    7621462 RIVET
    RIVET
  • 6
    5220497-067 BRACKET, SNOW FLAP
    BRACKET, SNOW FLAP
  • 7
    5810222 SNOW FLAP SIDE
    SNOW FLAP SIDE
  • 8
    2432035 TAILLIGHT ASSY. (INCL. 9-13)
    TAILLIGHT ASSY. (INCL. 9-13)
  • 9
    4032047 BASE AND SOCKET, TAILLIGHT
    BASE AND SOCKET, TAILLIGHT
  • 10
    4032045 GASKET, TAILLIGHT
    GASKET, TAILLIGHT
  • 11
    4032046 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 12
    4032029 SCREW, TAILLIGHT
    SCREW, TAILLIGHT
  • 13
    4030063 BULB, TAILLIGHT, EXT.DUTY
    BULB, TAILLIGHT, EXT.DUTY
  • 14
    2870708 HITCHKIT, L.T./STARTRAK (INCL. 15-19)
    HITCHKIT, L.T./STARTRAK (INCL. 15-19)
  • 14
    1011624-067 HITCH WELD (BLK).
    HITCH WELD (BLK).
  • 15
    7662209 CLEVIS PIN
    CLEVIS PIN
  • 16
    1011518-067 HITCH WELD (BLK).(U.S.)
    HITCH WELD (BLK).(U.S.)
  • 17
    7661401 COTTER PIN
    COTTER PIN
  • 18
    7552603 WASHER
    WASHER
  • 19
    7512490 SCREW
    SCREW
  • 20
    5240516-067 EXTRUSION-TUNNEL (REAR/BLK)
    EXTRUSION-TUNNEL (REAR/BLK)
  • 21
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 22
    5240530-067 PANEL, TUNNEL BACK, W/T (BLK)
    PANEL, TUNNEL BACK, W/T (BLK)
  • 23
    5410553 FLAP, SNOW
    FLAP, SNOW
  • 24
    7556044 WASHER
    WASHER
  • 25
    7621418 POP RIVET
    POP RIVET
  • 26
    5222448 STRIP, WEAR, EXT.
    STRIP, WEAR, EXT.
  • 27
    7621449 RIVET
    RIVET
  • 28
    5222323 BRACKET, HARNESS PROTECTOR
    BRACKET, HARNESS PROTECTOR
  • 29
    5410560 PROTECTOR (BED)
    PROTECTOR (BED)
  • 30
    7621429 RIVET
    RIVET
  • 31
    7670054 NUT, PUSH-ON
    NUT, PUSH-ON
  • 32
    7558301 WASHER
    WASHER
  • 33
    7542122 NUT, LOCK
    NUT, LOCK
  • 34
    7517377 SCREW
    SCREW
  • 35
    7515522 BOLT
    BOLT
  • 36
    7542458 NUT
    NUT
  • 37
    5430713 PLUG
    PLUG
  • 38
    7515341 SCREW
    SCREW
  • 39
    7552901 LOCK WASHER
    LOCK WASHER
  • 40
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 41
    7542324 NUT
    NUT
