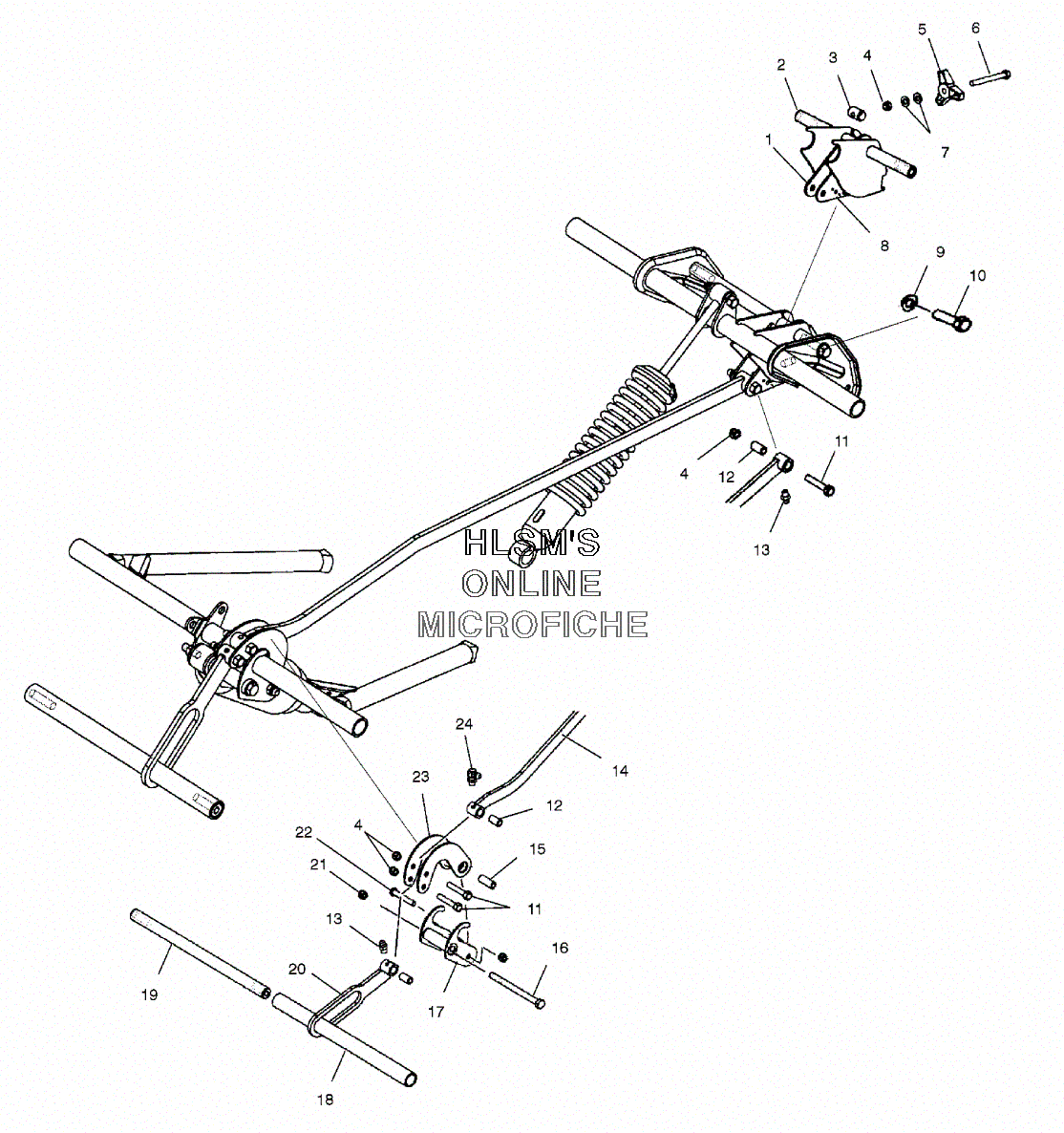

SUSPENSION - REAR COUPLER для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска
-
№АртикулНазвание
-
15244982 ARM, ADJUSTMENT (RIGHT/INNER)ARM, ADJUSTMENT (RIGHT/INNER)
-
21013387 WELD, ADJUSTERWELD, ADJUSTER
-
35132761 SHAFT, ADJUSTERSHAFT, ADJUSTER
-
47542324 NUTNUT
-
55630386-067 KNOB, BACKRESTKNOB, BACKREST
-
67517877 BOLTBOLT
-
77555770 WASHER FLATWASHER FLAT
-
85244981 ARM, ADJUSTMENT (LEFT/INNER)ARM, ADJUSTMENT (LEFT/INNER)
-
97552603 WASHERWASHER
-
107517247 SCREWSCREW
-
117512329 BOLTBOLT
-
125132759 BUSHINGBUSHING
-
137080424 FITTING, LUBE.FITTING, LUBE.
-
141013391 WELD, COUPLER BARWELD, COUPLER BAR
-
155132760 BUSHINGBUSHING
-
167517507 BOLTBOLT
-
171013587 COUPLER OUTSIDECOUPLER OUTSIDE
-
185433977 SLEEVE, PILOT SHAFTSLEEVE, PILOT SHAFT
-
195132742 SHAFT, PIVOT (.750X13.235)SHAFT, PIVOT (.750X13.235)
-
201013390 WELD, CLEVISWELD, CLEVIS
-
217542459 NUT, FLANGEDNUT, FLANGED
-
227517876 BOLTBOLT
-
231013389 WELD, COUPLER LINK, INSIDEWELD, COUPLER LINK, INSIDE
-
247080510 FITTING, ZERKFITTING, ZERK
