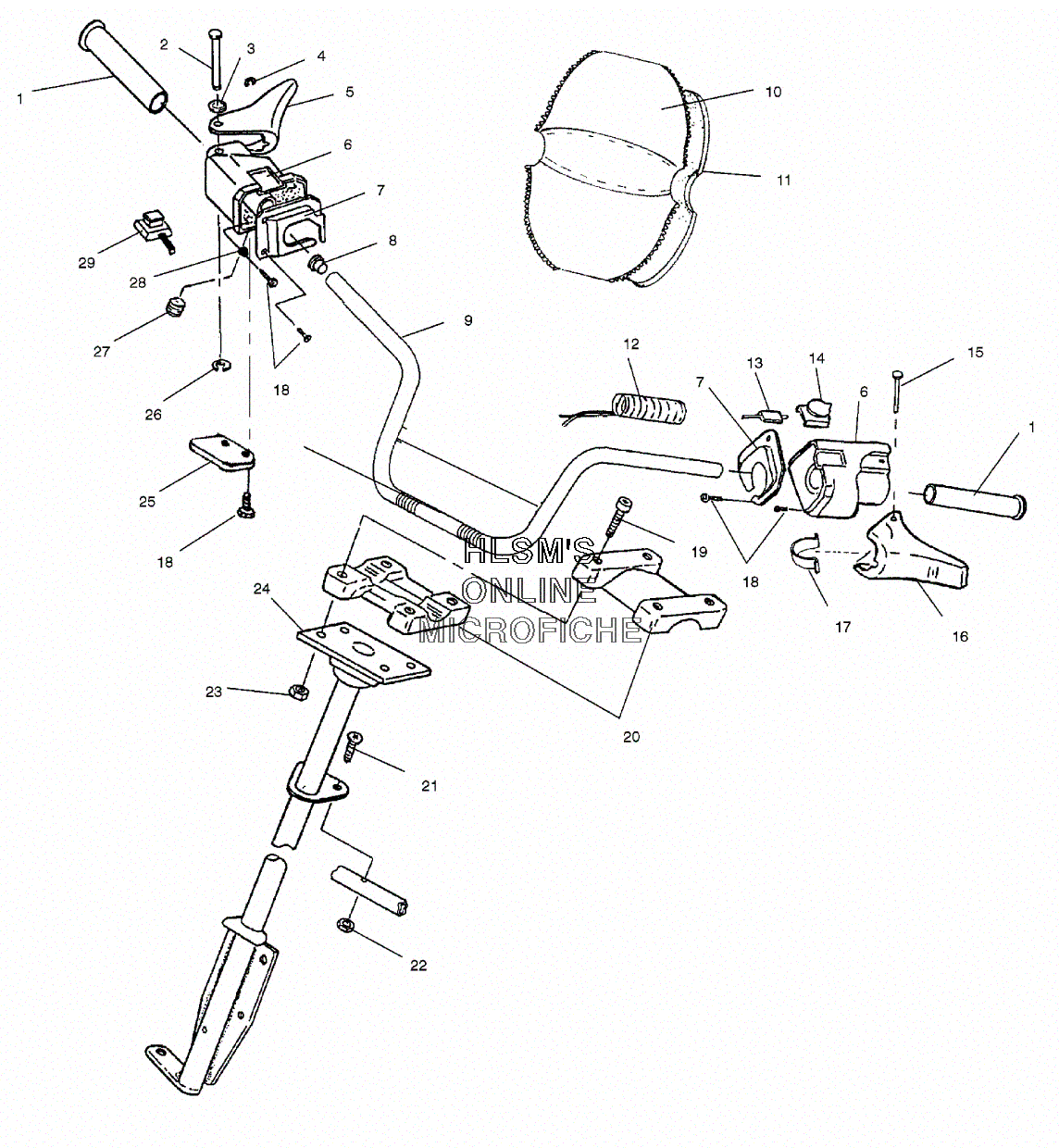

HANDLEBAR ASSEMBLY для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5432634 GRIP, HANDLEBAR, SNOW
    GRIP, HANDLEBAR, SNOW
  • 2
    7661624 PIN, HINGE
    PIN, HINGE
  • 3
    7555730 WASHER
    WASHER
  • 4
    7710401 E-RING
    E-RING
  • 5
    2010171 LEVER ASSY., HTR (HI/LO) (35.5MM)
    LEVER ASSY., HTR (HI/LO) (35.5MM)
  • 5
    5432970 THROTLE, LEVER (35.5MM)
    THROTLE, LEVER (35.5MM)
  • 6
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 7
    5430604 BLOCK, ADAPTER
    BLOCK, ADAPTER
  • 8
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 9
    1823135-067 HANDLEBAR (BLK).
    HANDLEBAR (BLK).
  • 10
    2690146 COVER ASSY., HANDLEBAR
    COVER ASSY., HANDLEBAR
  • 11
    5811179 FOAM, HANDLEBAR, BUCKHORN
    FOAM, HANDLEBAR, BUCKHORN
  • 12
    2460311 GRIP-HEATER ASSY. (HI/LOW)
    GRIP-HEATER ASSY. (HI/LOW)
  • 13
    4110105 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 14
    4110104 SWITCH, DIMMER
    SWITCH, DIMMER
  • 15
    7661617 RIVET
    RIVET
  • 16
    5430602 LEVER, BRAKE
    LEVER, BRAKE
  • 17
    7670044 CLIP, SPEEDOMETER
    CLIP, SPEEDOMETER
  • 18
    7511848 SCREW SEMS
    SCREW SEMS
  • 19
    7517238 SCREW
    SCREW
  • 20
    5630187-067 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 21
    7517377 SCREW
    SCREW
  • 22
    7542103 NUT, LOCK
    NUT, LOCK
  • 23
    7542122 NUT, LOCK
    NUT, LOCK
  • 24
    1823182-067 POST, STEERING (BLK)
    POST, STEERING (BLK)
  • 25
    5432261 HOLDER, WIRE
    HOLDER, WIRE
  • 26
    7710503 RETAINING RING
    RETAINING RING
  • 27
    7512465 SCREW
    SCREW
  • 28
    7555727 RIVET BURR
    RIVET BURR
  • 29
    4110106 SWITCH, AUX.SHUT-OFF
    SWITCH, AUX.SHUT-OFF
