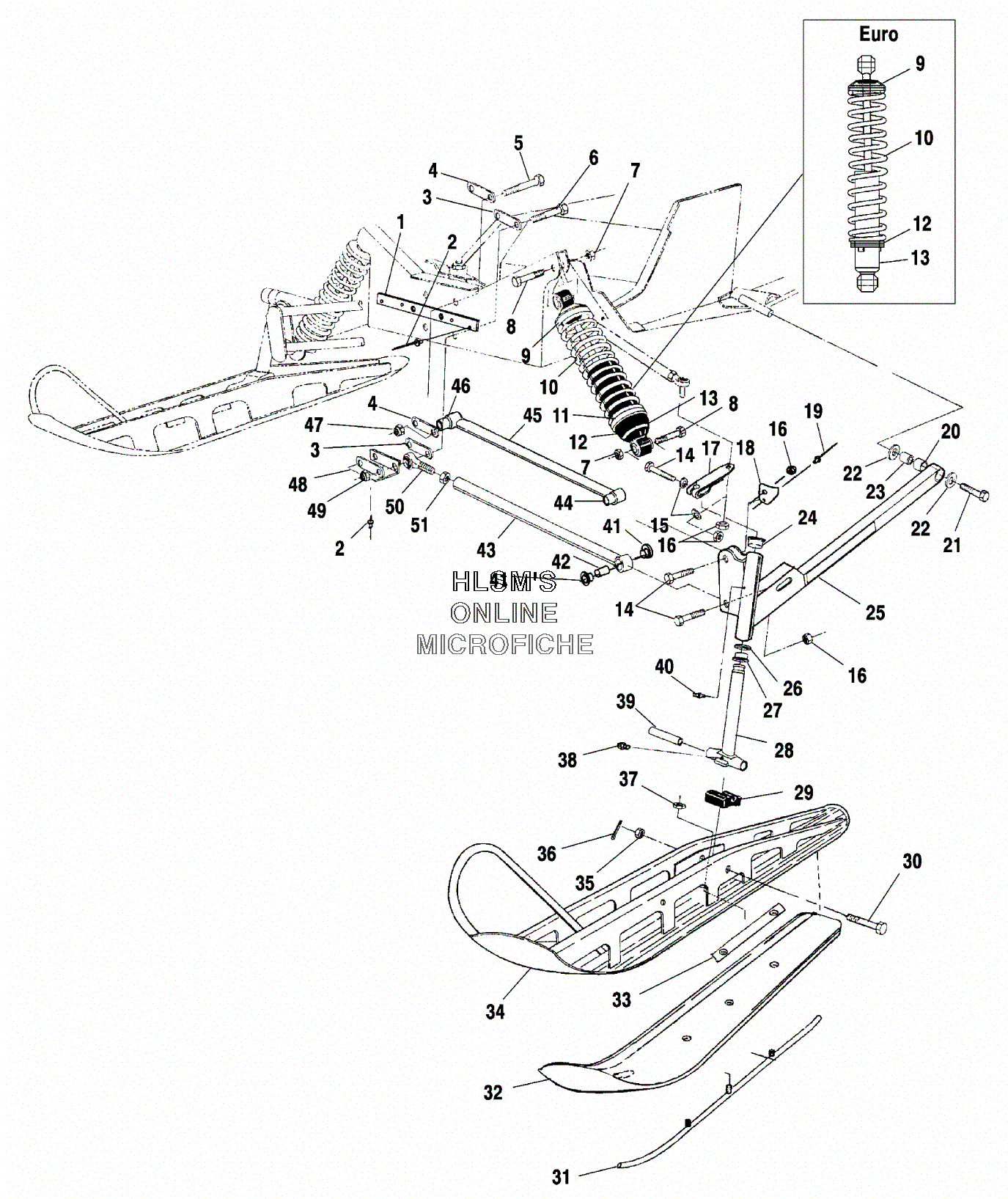

SUSPENSION - FRONT W/ SKI для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска`
-
№АртикулНазвание
-
15240349-067 BRACE, BULKHEADBRACE, BULKHEAD
-
27661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67512678 BOLTBOLT
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515415 BOLTBOLT
-
95220225 RETAINER (TOP)RETAINER (TOP)
-
107041261-067 SPRING, COMP (BLK)SPRING, COMP (BLK)
-
115431734 RING, SPRING PRELOAD ADJUSTERRING, SPRING PRELOAD ADJUSTER
-
121500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
125210953 SPACER, SHOCK RETAINERSPACER, SHOCK RETAINER
-
137041535 SHOCK, IFSSHOCK, IFS
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
167542403 NUT LOCKNUT LOCK
-
175220326-067 ARM, STEERINGARM, STEERING
-
185241569-067 STOP, STEERING (LEFT/BLK).STOP, STEERING (LEFT/BLK).
-
185241570-067 STOP, STEERING (RIGHT/BLK).STOP, STEERING (RIGHT/BLK).
-
197661643 RIVET (3/16-.214-.420)RIVET (3/16-.214-.420)
-
205410872 PIVOT, TRAILING ARM, RUBBERPIVOT, TRAILING ARM, RUBBER
-
217512557 BOLTBOLT
-
227555721 WASHERWASHER
-
235010310 TUBE, BUSHINGTUBE, BUSHING
-
243573909 BUSHING, FLANGEBUSHING, FLANGE
-
251822485 ARM, TRAILING (LEFT) (INCL. 20, 23)ARM, TRAILING (LEFT) (INCL. 20, 23)
-
251822486 ARM, TRAILING (RIGHT) (INCL. 20, 23)ARM, TRAILING (RIGHT) (INCL. 20, 23)
-
267556509 WASHER SPECIALWASHER SPECIAL
-
273574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
286230102-067 SHAFT, SPINDLE, TRAILING (BLK)SHAFT, SPINDLE, TRAILING (BLK)
-
295411083 STOP, RUBBERSTOP, RUBBER
-
307515462 BOLTBOLT
-
312871288 CARBIDE, STEEL SKI (60 DEG) (4'')CARBIDE, STEEL SKI (60 DEG) (4'')
-
325432153-070 SKIN, SKI, WIDE (BLK)SKIN, SKI, WIDE (BLK)
-
335433795 SHIM, SKI SKINSHIM, SKI SKIN
-
341820430-067 SKI WELDSKI WELD
-
357542438 NUT, CASTLENUT, CASTLE
-
367661209 PIN, COTTERPIN, COTTER
-
377542324 NUTNUT
-
387080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
395010158 BUSHING, PIVOTBUSHING, PIVOT
-
407080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
415010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
425431486 BUSHING, RADIUS ROD PIVOT (OUTER)BUSHING, RADIUS ROD PIVOT (OUTER)
-
431822444-067 ROD, RADIUS (LOWER/BLK)ROD, RADIUS (LOWER/BLK)
-
445411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
-
451822420 ROD, RADIUS, FIXED (UPPER) (INCL. 44, 46)ROD, RADIUS, FIXED (UPPER) (INCL. 44, 46)
-
465411095 BUSHING, PIVOT (7/16)BUSHING, PIVOT (7/16)
-
477542503 NUT, LOCKNUT, LOCK
-
485242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
497542703 NUT FLEXNUT FLEX
-
507061011 ROD END (1/2,PL,.745 WIDE,FM)ROD END (1/2,PL,.745 WIDE,FM)
-
517542711 NUT-JAMNUT-JAM
