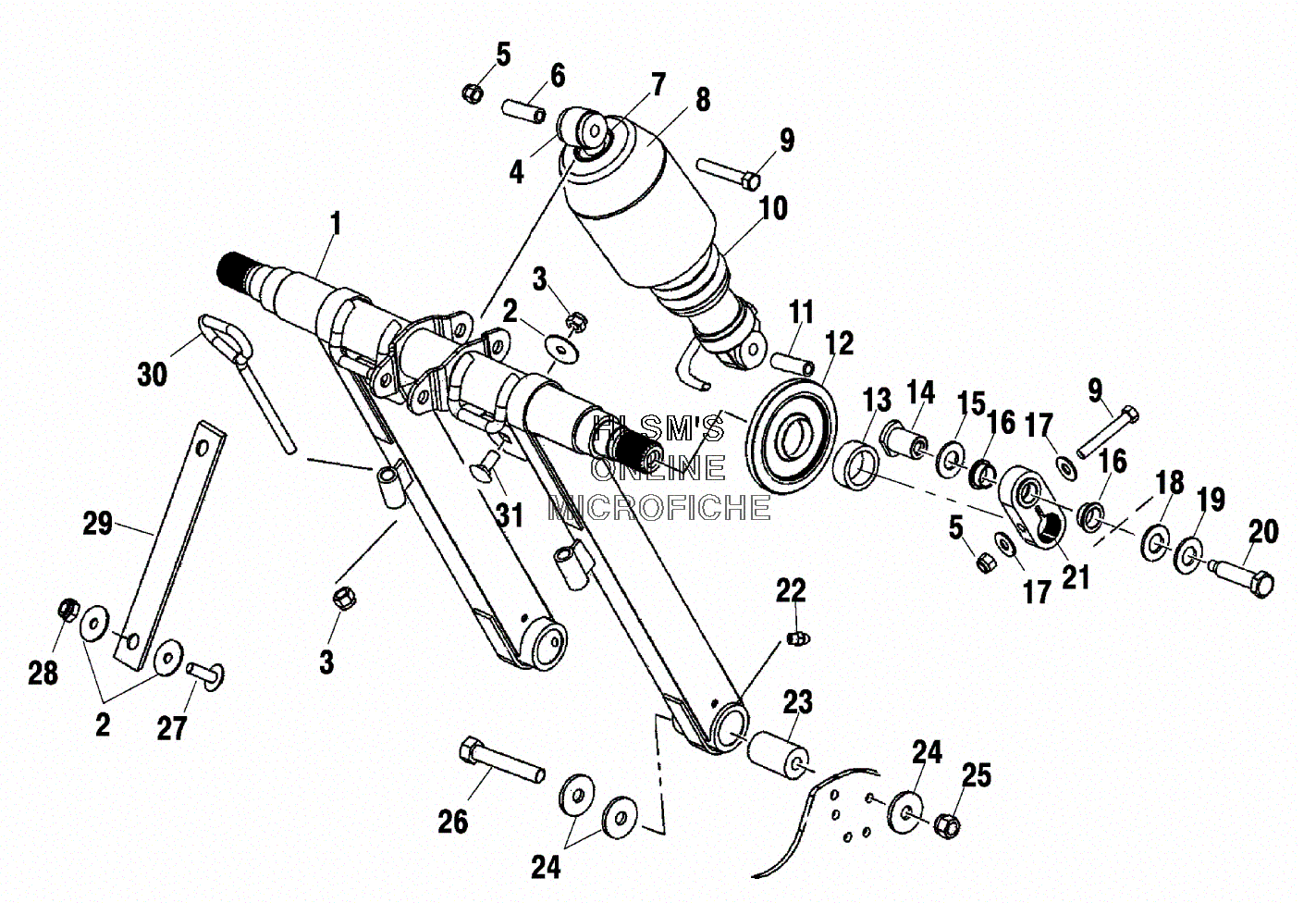

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска`
-
№АртикулНазвание
-
11541688-216 WELD FTA, EDGE, REINFORCE (YELLOW)WELD FTA, EDGE, REINFORCE (YELLOW)
-
27556175 WASHERWASHER
-
37542324 NUTNUT
-
47041973 SHOCK TRACK, ARVIN (FRONT)SHOCK TRACK, ARVIN (FRONT)
-
57542439 NUT, NYLOKNUT, NYLOK
-
65333905 SLEEVESLEEVE
-
75020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
85433503 SHIELD SPRING (3.00)SHIELD SPRING (3.00)
-
97515415 BOLTBOLT
-
107042050-067 COMP SPRING (170#X7.5INX.343) (BLK)COMP SPRING (170#X7.5INX.343) (BLK)
-
115333906 SLEEVE (.385X.560X1.72)SLEEVE (.385X.560X1.72)
-
121590322 WHEEL ASSY., PLAIN (4.50)WHEEL ASSY., PLAIN (4.50)
-
123514303 BEARINGBEARING
-
127718407 RING RETAININGRING RETAINING
-
135132388 SPACER, WHEELSPACER, WHEEL
-
145132972 SHAFT ARM (7/16 14)SHAFT ARM (7/16 14)
-
157555945 WASHERWASHER
-
163514331 BUSHING ARMBUSHING ARM
-
177556188 WASHER, FLATWASHER, FLAT
-
187555984 WASHER ,WASHER ,
-
197552614 WASHER, LOCKWASHER, LOCK
-
207517917 SCREWSCREW
-
211541461 ARM ASSY., RTAARM ASSY., RTA
-
227080424 FITTING, LUBEFITTING, LUBE
-
235132969 SHAFT FTASHAFT FTA
-
247556156 WASHERWASHER
-
257547066 NUT 7/16 20, NYLOK, YNUT 7/16 20, NYLOK, Y
-
267512597 BOLTBOLT
-
277517313 SCREWSCREW
-
287542344 NUT, NYLOC,NUT, NYLOC,
-
295411631 STRAP LIM (FRONT)STRAP LIM (FRONT)
-
307010050 BOLT, EYEBOLT, EYE
-
317512377 BOLTBOLT
