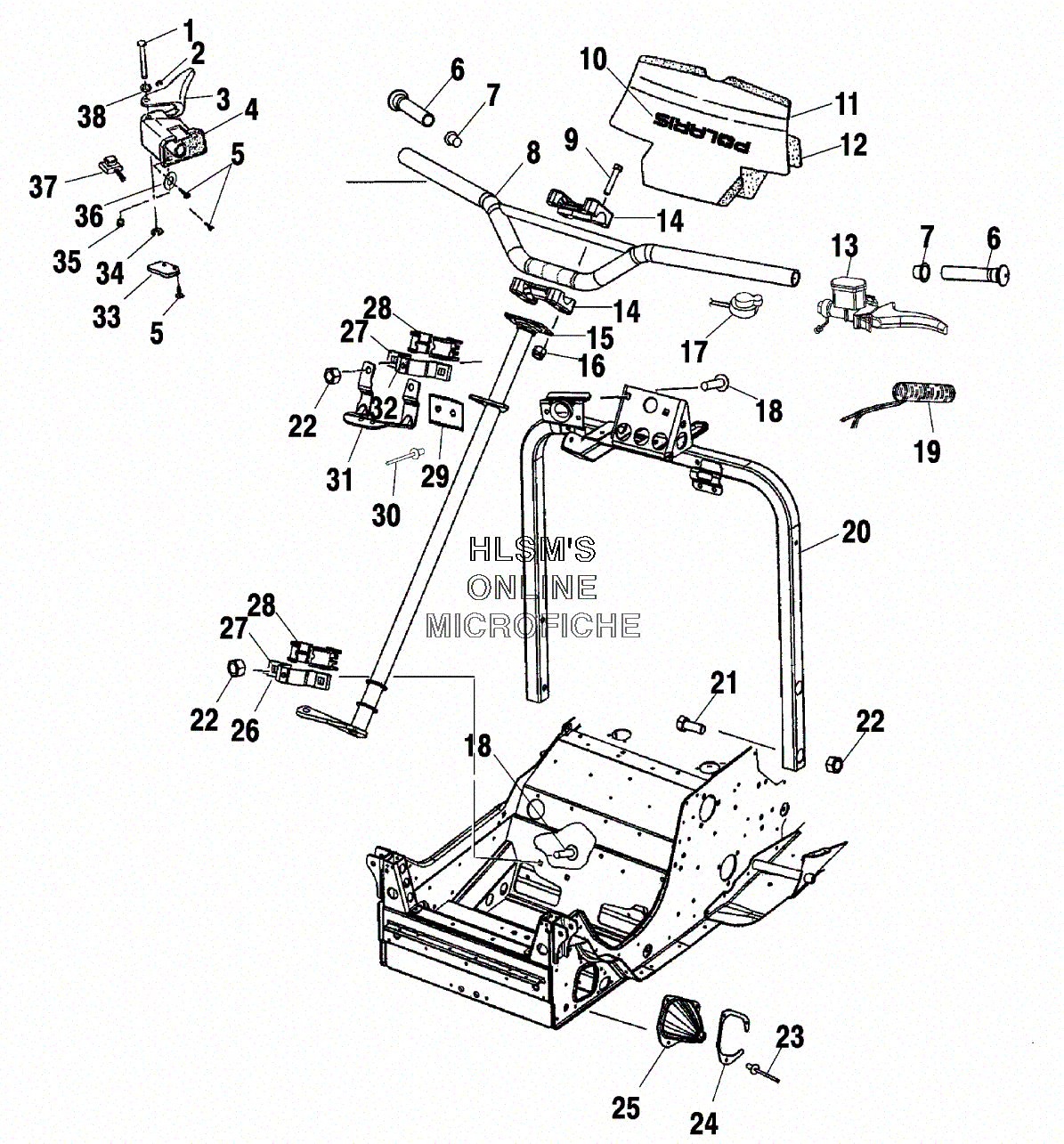

HANDLEBAR ASSEMBLY для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN HINGE
    PIN HINGE
  • 2
    7710503 RETAINING RING
    RETAINING RING
  • 3
    5432970 THROTLE, LEVER (35.5MM)
    THROTLE, LEVER (35.5MM)
  • 3
    2010171 LEVER ASSY., HTR (HI/LO) (35.5MM)
    LEVER ASSY., HTR (HI/LO) (35.5MM)
  • 4
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 5
    7511848 SCREW SEMS
    SCREW SEMS
  • 6
    5432634 GRIP, HANDLEBAR, SNOW
    GRIP, HANDLEBAR, SNOW
  • 7
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 8
    1820854-067 HANDLE BAR (BLK)
    HANDLE BAR (BLK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    7076468 DECAL''POLARIS'', VINYL
    DECAL''POLARIS'', VINYL
  • 10
    2200891 DECAL APPLICATION KIT, VINYL
    DECAL APPLICATION KIT, VINYL
  • 11
    2682824 HANDLEBAR COVER ASSY. (FORMED)
    HANDLEBAR COVER ASSY. (FORMED)
  • 12
    5812064 PAD, HANDLEBAR, 2 PLY
    PAD, HANDLEBAR, 2 PLY
  • 14
    5630187 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 15
    1821048-067 WELD STEERING POST (BLK)
    WELD STEERING POST (BLK)
  • 16
    7542122 NUT LOCK
    NUT LOCK
  • 17
    4110107 SWITCH, DIMMER
    SWITCH, DIMMER
  • 18
    7512331 BOLT
    BOLT
  • 19
    2460311 GRIP HEATER ASSY. (HI/LOW)
    GRIP HEATER ASSY. (HI/LOW)
  • 20
    2201960 KIT HOOP STRG W/PLATE (INCL. 29, 30)
    KIT HOOP STRG W/PLATE (INCL. 29, 30)
  • 21
    7512377 BOLT
    BOLT
  • 22
    7542343 NUT, NYLOCK
    NUT, NYLOCK
  • 23
    7621433 RIVET
    RIVET
  • 24
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 25
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 25
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 26
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 27
    5132967 BRACKET STEERING POST, ALUM (.75W)
    BRACKET STEERING POST, ALUM (.75W)
  • 28
    5434167 BUSHING STEER POST, PLAS (.75W)
    BUSHING STEER POST, PLAS (.75W)
  • 29
    5245681-067 PLATE BRACKET REINFORCEMENT (BLK)
    PLATE BRACKET REINFORCEMENT (BLK)
  • 30
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 31
    5245680 FITTING (90 DEG) (1/8)
    FITTING (90 DEG) (1/8)
  • 32
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 33
    5432261 HOLDER WIRE
    HOLDER WIRE
  • 34
    7710401 E-RING
    E-RING
  • 35
    7512465 SCREW
    SCREW
  • 36
    7555727 RIVET BURR
    RIVET BURR
  • 37
    4110106 SWITCH, AUX.SHUT OFF
    SWITCH, AUX.SHUT OFF
  • 38
    7555730 WASHER
    WASHER
