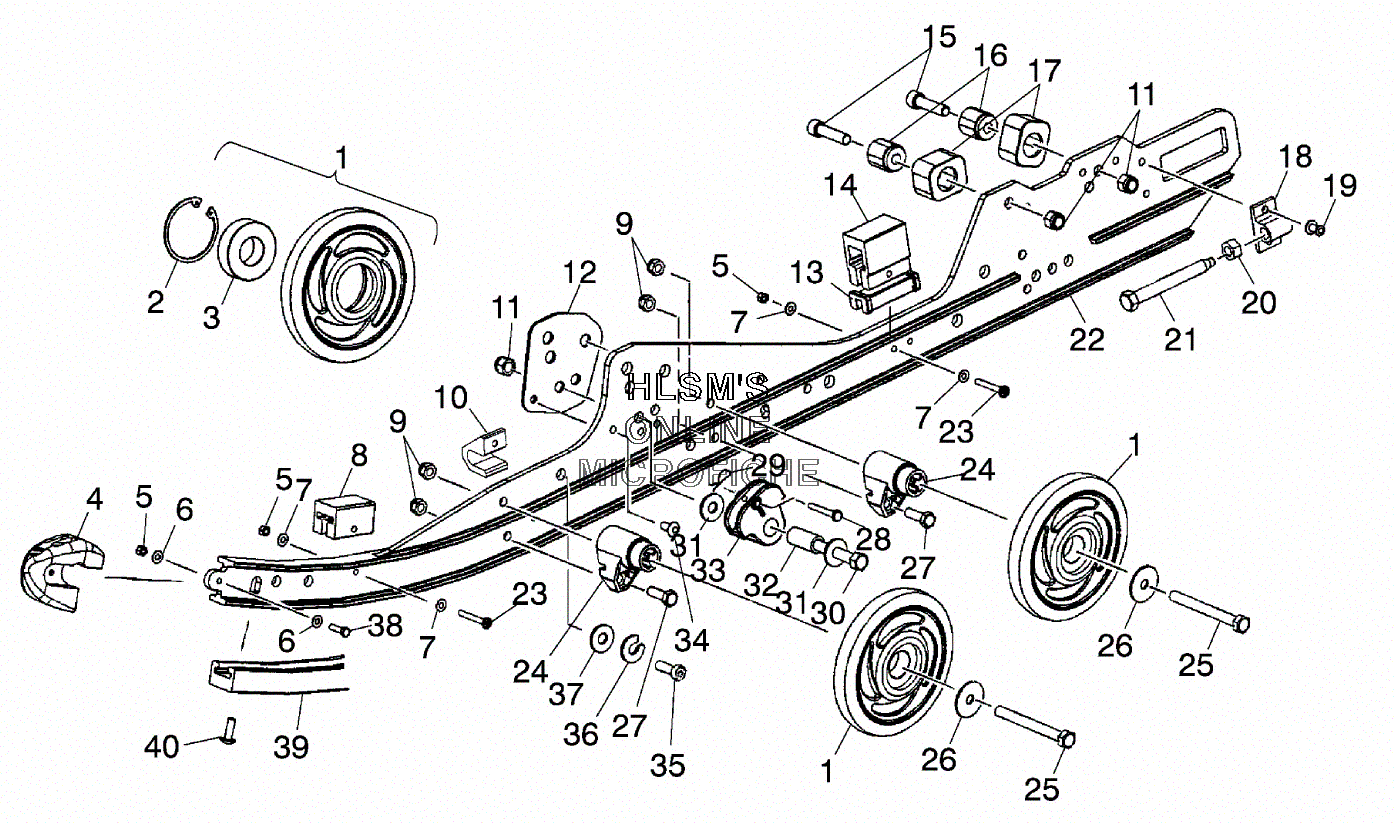

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
11590318-293 WHEEL SCROLLED ASSY. (I RED) (5.62 DIA.) (INCL. 2, 3)WHEEL SCROLLED ASSY. (I RED) (5.62 DIA.) (INCL. 2, 3)
-
27718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
45434168 CAP, RAIL TIP UHMWCAP, RAIL TIP UHMW
-
57541925 NUTNUT
-
67555792 WASHERWASHER
-
77555783 WASHERWASHER
-
85521499 BUMPER, JOUNCE FRONTBUMPER, JOUNCE FRONT
-
97542324 NUTNUT
-
105132997 CLAMP HOSE, ARVINCLAMP HOSE, ARVIN
-
117542439 NUT, NYLOKNUT, NYLOK
-
125245430 BRACKET RAIL REINFORCEMENTBRACKET RAIL REINFORCEMENT
-
135432946 LINER, BUMPERLINER, BUMPER
-
145521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
145432946 LINER, BUMPERLINER, BUMPER
-
157515537 BOLTBOLT
-
165131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
175410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
185132444 BLOCK, IDLER BOLT ADJUSTER (7/16)BLOCK, IDLER BOLT ADJUSTER (7/16)
-
197621501 RIVET,RIVET,
-
207547156 NUT JAM (7/16 14 )NUT JAM (7/16 14 )
-
217517773 SCREWSCREW
-
221541622 RAIL ASSY. (121) (LEFT) (INCL. 4, 8, 14, 17, 18)RAIL ASSY. (121) (LEFT) (INCL. 4, 8, 14, 17, 18)
-
221541623 RAIL ASSY., RACE (121) (RIGHT) (INCL. 4, 8, 14, 17, 18)RAIL ASSY., RACE (121) (RIGHT) (INCL. 4, 8, 14, 17, 18)
-
237510504 SCREWSCREW
-
245631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
257515346 BOLTBOLT
-
267556179 WASHER SPRING (CON 5/16X.090 Y)WASHER SPRING (CON 5/16X.090 Y)
-
277515317 BOLTBOLT
-
287661123 PIN CLEVIS (3/16X1 1/4)PIN CLEVIS (3/16X1 1/4)
-
297661644 PIN, HITCHPIN, HITCH
-
307515438 BOLTBOLT
-
317555983 WASHER, FLATWASHER, FLAT
-
325333948 SPACER (.407X.625X1.33)SPACER (.407X.625X1.33)
-
335433922 GUIDE SPRING SQUAREGUIDE SPRING SQUARE
-
347661845 RIVETRIVET
-
357512014 SCREWSCREW
-
367552615 WASHER, LOCKWASHER, LOCK
-
377555783 WASHERWASHER
-
387511975 SCREWSCREW
-
395521577-309 HI FAX, 121, NATURALHI FAX, 121, NATURAL
-
407515199 SCREWSCREW
