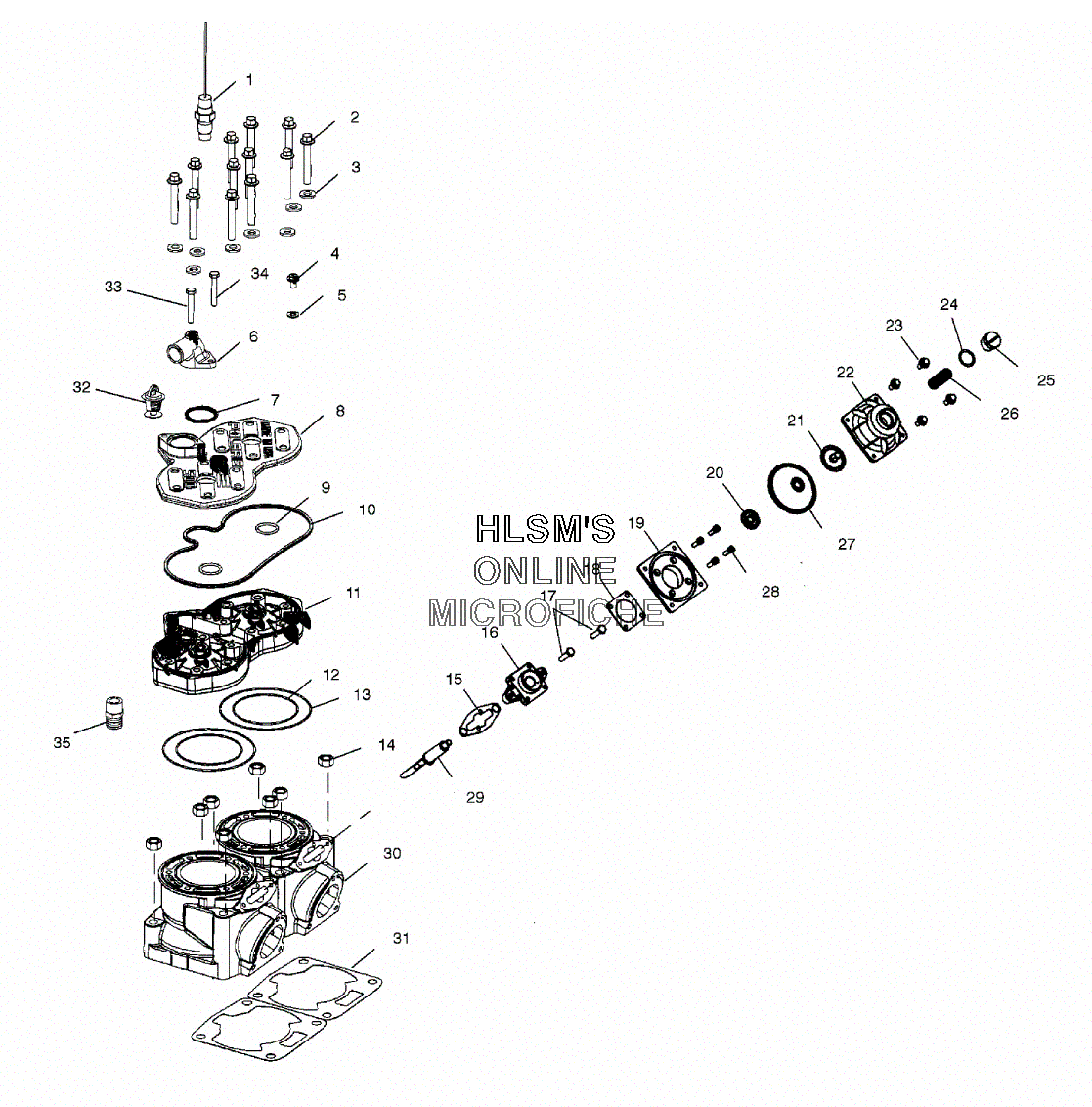

CYLINDER ASSEMBLY для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    4010251 SENSOR, THERMISTER (ESX8477A)
    SENSOR, THERMISTER (ESX8477A)
  • 2
    7517281 SCREW
    SCREW
  • 3
    7556082 WASHER
    WASHER
  • 4
    7517679 SCREW
    SCREW
  • 5
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 6
    5630992 COVER THERMOSTAT (M6 BLEED LG)
    COVER THERMOSTAT (M6 BLEED LG)
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    5631038-093 HEAD COVER (77.25) (FIRE RED)
    HEAD COVER (77.25) (FIRE RED)
  • 9
    5411411 O-RING
    O-RING
  • 10
    5411465 SEAL, MLDD.HEAD, TWIN
    SEAL, MLDD.HEAD, TWIN
  • 11
    3022057 HEAD, CYLINDER (77.25MM)
    HEAD, CYLINDER (77.25MM)
  • 12
    5410932 O-RING
    O-RING
  • 13
    5411359 O-RING
    O-RING
  • 14
    7547013 NUT
    NUT
  • 15
    5812087 GASKET, GEN 3.5 EV BASE
    GASKET, GEN 3.5 EV BASE
  • 16
    1201919 HOUSING ASSY. W/BUSH H.DOWEL (EV 3.5 )
    HOUSING ASSY. W/BUSH H.DOWEL (EV 3.5 )
  • 17
    7516823 SCREW
    SCREW
  • 18
    5433375 GASKET, HOUSING EV
    GASKET, HOUSING EV
  • 19
    5132187 ADAPTER KIT, W/CAP
    ADAPTER KIT, W/CAP
  • 20
    3086124 WASHER
    WASHER
  • 21
    3086118 CAP, VALVE EXHAUST
    CAP, VALVE EXHAUST
  • 22
    3086120 COVER, VALVE EXHAUST
    COVER, VALVE EXHAUST
  • 23
    3086125 BOLT, FLANGE
    BOLT, FLANGE
  • 24
    3086126 O-RING
    O-RING
  • 25
    3085744 ADJUSTER, SPRING
    ADJUSTER, SPRING
  • 26
    7041786-08 SPRING COMP, GEN 3.5EV (GREEN/YELLOW)
    SPRING COMP, GEN 3.5EV (GREEN/YELLOW)
  • 27
    3086119 BELLOWS, VALVE, EXHAUST
    BELLOWS, VALVE, EXHAUST
  • 28
    7517314 SCREW
    SCREW
  • 29
    1201958 VALVE GUILLOTINE ASSY. (3.5) (600EV)
    VALVE GUILLOTINE ASSY. (3.5) (600EV)
  • 30
    3021087 CYLINDER, W/LEV (77MM)
    CYLINDER, W/LEV (77MM)
  • 31
    5811916 GASKET CYLINDER BASE
    GASKET CYLINDER BASE
  • 32
    7052267 THERMOSTAT 50C TBYS SS STEM
    THERMOSTAT 50C TBYS SS STEM
  • 33
    7516818 SCREW
    SCREW
  • 34
    7516822 SCREW
    SCREW
  • 35
    7052234 FITTING, HOSE BRASS (3/4NPT 1'')
    FITTING, HOSE BRASS (3/4NPT 1'')
