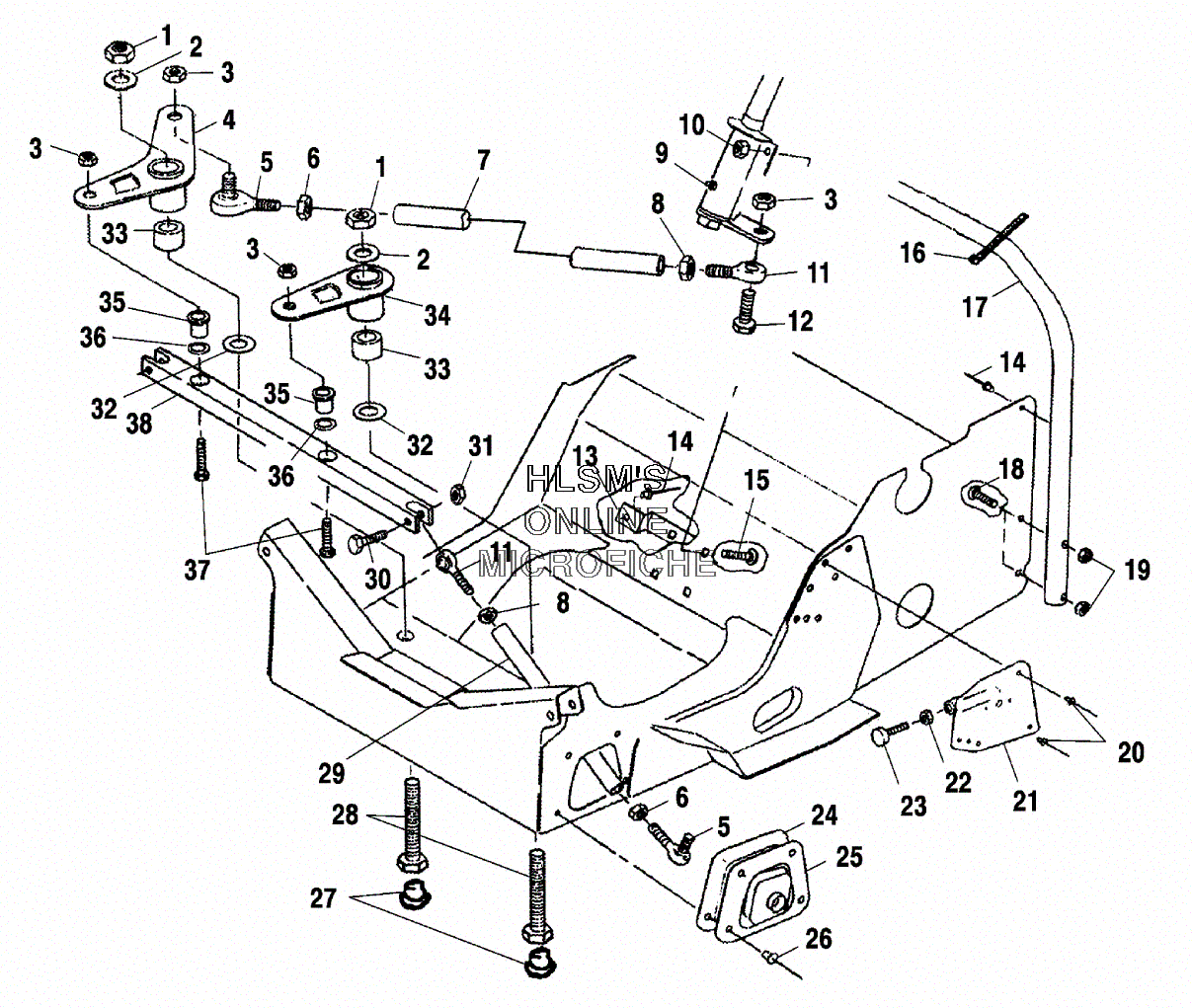

STEERING ASSEMBLY для Polaris 500 RMK 136'' (S01SR5AS) - 2001 года выпуска
-
№АртикулНазвание
-
17547029 NUT, FLEX LOCKNUT, FLEX LOCK
-
27555721 WASHERWASHER
-
37542403 NUT LOCKNUT LOCK
-
41822417 PITMAN ARM ASSY. (INCL. 33)PITMAN ARM ASSY. (INCL. 33)
-
57060174 ROD-END, 3/8, HI-ANGLE (RIGHT)ROD-END, 3/8, HI-ANGLE (RIGHT)
-
67542401 NUT HEXNUT HEX
-
75333408 ROD, DRAG LINKROD, DRAG LINK
-
87542424 NUTNUT
-
97080561 FITTING, LUB/VENFITTING, LUB/VEN
-
107542303 NUT FLEX-LOCNUT FLEX-LOC
-
117060166 ROD END (LEFT)ROD END (LEFT)
-
127512404 BOLTBOLT
-
135241997 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
-
147661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
157517428 BOLTBOLT
-
167080804 CABLE TIE-RELEASABLE, 5 1/2''CABLE TIE-RELEASABLE, 5 1/2''
-
171013153-067 STEERING HOOP (BLACK)STEERING HOOP (BLACK)
-
187512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
197542103 NUT, LOCKNUT, LOCK
-
207661639 RIVET (3/16-.214-.420)RIVET (3/16-.214-.420)
-
211012854 TORQUE STOP SN44TORQUE STOP SN44
-
227542404 NUTNUT
-
233110078 STOP, TORQUESTOP, TORQUE
-
245411249 BOOT, TIEROD, MODBOOT, TIEROD, MOD
-
255211796-067 PLATE, BOOT, MODPLATE, BOOT, MOD
-
267621323 POP RIVETPOP RIVET
-
277080689 PLUG, HOLEPLUG, HOLE
-
287517328 SCREWSCREW
-
295020885-067 ROD, TIE (BLACK)ROD, TIE (BLACK)
-
307515434 SCREWSCREW
-
317542411 NUT LOCKNUT LOCK
-
327556053 WASHERWASHER
-
335010468 SPACERSPACER
-
341820582 IDLER ARM (INCL. 33)IDLER ARM (INCL. 33)
-
355010384 TUBE, SPACERTUBE, SPACER
-
365411220 O-RINGO-RING
-
377517574 SCREWSCREW
-
381822413 RACK ASSY., STEERINGRACK ASSY., STEERING
