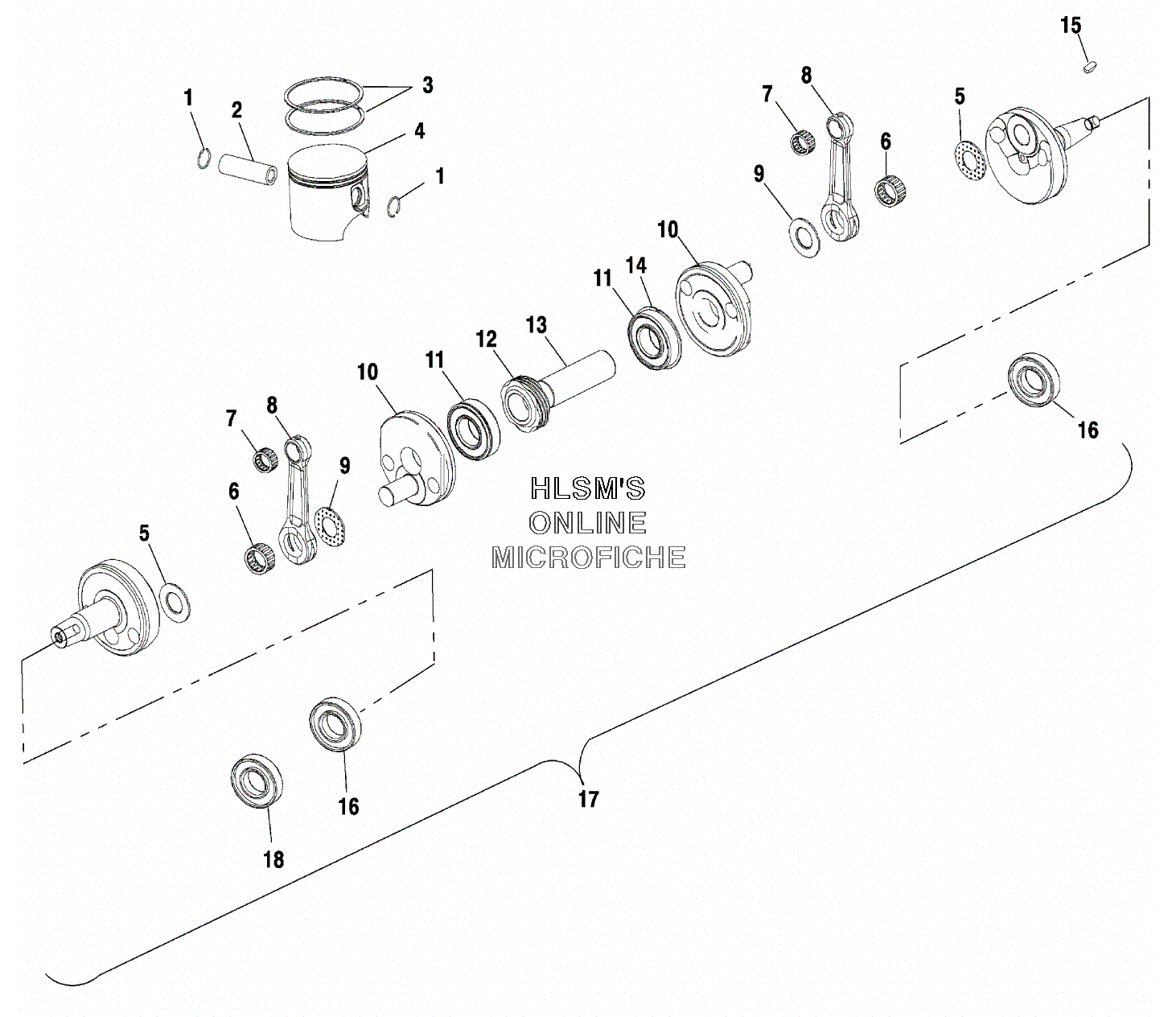

PISTON AND CRANKSHAFT для Polaris 500 RMK 136'' (S01SR5AS) - 2001 года выпуска

№

Артикул

Название
1

3022950 CIRCLIP, PISTON, 20MM.

CIRCLIP, PISTON, 20MM.

1 000 ₽
2

3022961 PIN, PISTON

PIN, PISTON

5 200 ₽
3

2201193 PISTONRINGS KIT (.50MM/.020 O/S)

PISTONRINGS KIT (.50MM/.020 O/S)

13 520 ₽
3

2201196 PISTONRINGS, 70.5MM. KIT (STANDARD)

PISTONRINGS, 70.5MM. KIT (STANDARD)

13 520 ₽
3

2201198 PISTONRINGS KIT (.25MM/.010 O/S)

PISTONRINGS KIT (.25MM/.010 O/S)

0 ₽
4

2201383 PISTON, ASSY., 70.5MM (INCL. 1-3)

PISTON, ASSY., 70.5MM (INCL. 1-3)

52 000 ₽
4

2201395 PISTON, ASSY. 70.5MM (.25MM/.010 O/S)

PISTON, ASSY. 70.5MM (.25MM/.010 O/S)

31 200 ₽
4

2201396 PISTON, ASSY. 70.5MM (.50MM/.020 O/S)

PISTON, ASSY. 70.5MM (.50MM/.020 O/S)

52 000 ₽
7

3552108 BEARING

BEARING

4 160 ₽
8

2201132 CONNECT.ROD KIT (INCL. 5, 6, 8, 9, 10)

CONNECT.ROD KIT (INCL. 5, 6, 8, 9, 10)

93 600 ₽
11

3513508 BEARING, BALL 35X72X20, SL, KOYO

BEARING, BALL 35X72X20, SL, KOYO

9 780 ₽
12

5131373 GEAR, PUMP DRIVE

GEAR, PUMP DRIVE

0 ₽
13

5131353 SHAFT, CRANK, PUMPDRIVE

SHAFT, CRANK, PUMPDRIVE

14 570 ₽
14

7710447 RING, SNAP

RING, SNAP

1 250 ₽
15

7721117 KEY, WOODRUFF

KEY, WOODRUFF

2 080 ₽
16

3585503 BEARING, BALL

BEARING, BALL

6 870 ₽
17

2201234 CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 5, 6, 8-14, 16, 18)

CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 5, 6, 8-14, 16, 18)

260 ₽
18

3514310 BEARING, BALL, EXTRACE

BEARING, BALL, EXTRACE

7 700 ₽
