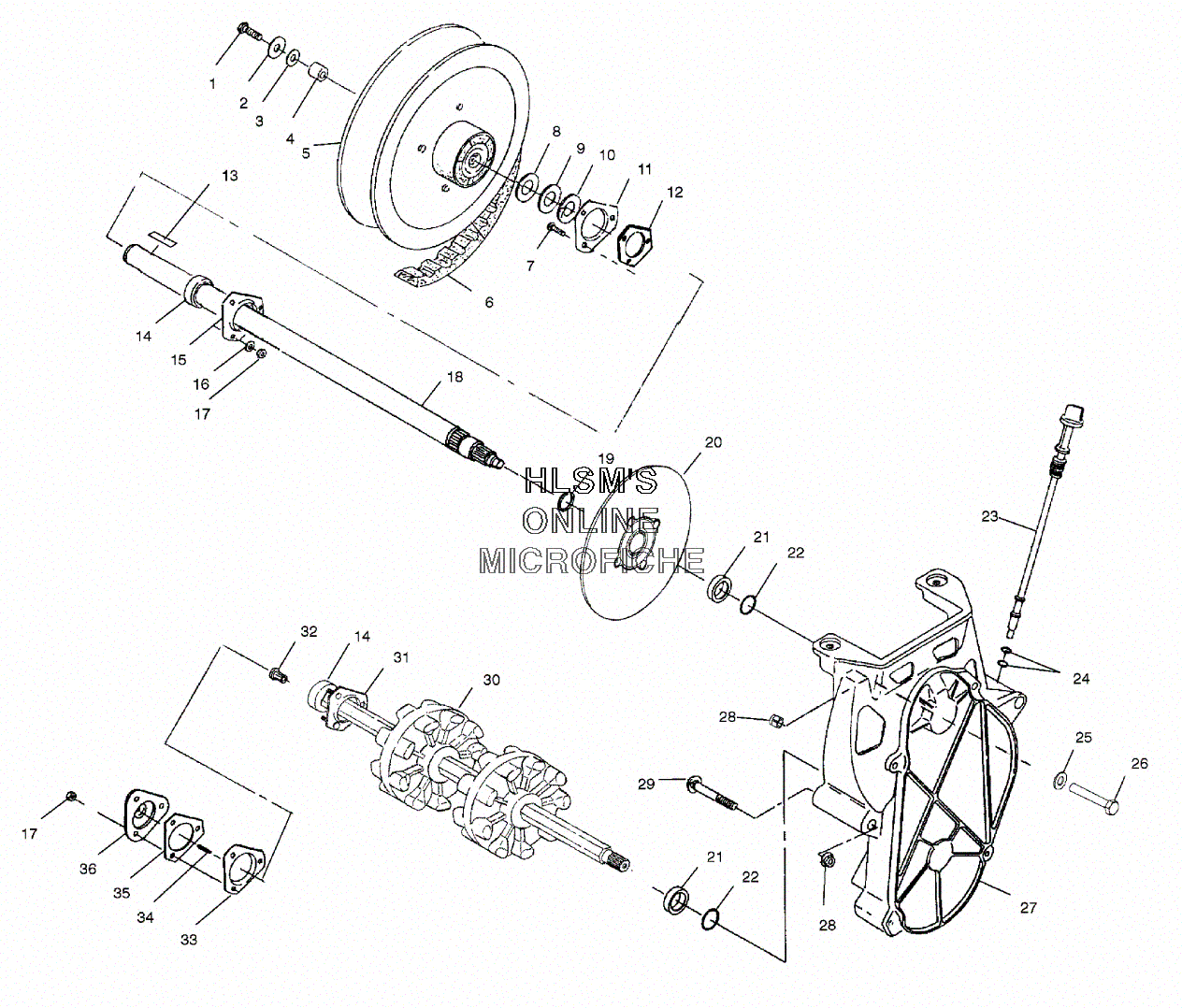

DRIVE TRAIN ASSEMBLY W/ TRACK для Polaris 500 RMK 136'' (S01SR5AS) - 2001 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7517820 BOLT 5/16-18X1 3/4 HX/LK-GR5-Z
    BOLT 5/16-18X1 3/4 HX/LK-GR5-Z
  • 2
    7555701 WASHER FLAT
    WASHER FLAT
  • 3
    7555734 WASHER
    WASHER
  • 4
    5020913 SPACER
    SPACER
  • 6
    3211074 BELT, DRIVE
    BELT, DRIVE
  • 7
    7512377 BOLT
    BOLT
  • 8
    7555864 BUSHING
    BUSHING
  • 9
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 10
    5020837 SPACER
    SPACER
  • 11
    5241359 FLANGE RD, RELUBE W/ZERK
    FLANGE RD, RELUBE W/ZERK
  • 12
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 13
    7721116 KEY
    KEY
  • 14
    3514525 BEARING
    BEARING
  • 15
    5222751 FLANGETTE
    FLANGETTE
  • 16
    7558402 WASHER STEEL
    WASHER STEEL
  • 17
    7542324 NUT
    NUT
  • 18
    1332207 JACKSHAFT ASSY., 15 SPL (INCL. 14, 19)
    JACKSHAFT ASSY., 15 SPL (INCL. 14, 19)
  • 19
    7710422 RING, RETAINING
    RING, RETAINING
  • 20
    1910403 BRAKE DISC, SNOW, 6385 CR, ASSY.
    BRAKE DISC, SNOW, 6385 CR, ASSY.
  • 21
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 22
    5410613 O RING
    O RING
  • 23
    5431419 ASSY. DIPSTICK
    ASSY. DIPSTICK
  • 24
    5410675 O-RING
    O-RING
  • 25
    7558403 WASHER WROUGHT
    WASHER WROUGHT
  • 26
    7515485 BOLT
    BOLT
  • 28
    7542423 NUT
    NUT
  • 29
    7515428 BOLT
    BOLT
  • 30
    1590284 DRIVESHAFT ASSY., 2 DR WIDE, XHS (INCL. 31, 32)
    DRIVESHAFT ASSY., 2 DR WIDE, XHS (INCL. 31, 32)
  • 31
    1012945 ASSY., FLANGETTE, W/SCREWS
    ASSY., FLANGETTE, W/SCREWS
  • 32
    3280019 BUSHING METAL SPEEDO
    BUSHING METAL SPEEDO
  • 33
    5241178 FLANGETTE, OFFSET, W/HOLE
    FLANGETTE, OFFSET, W/HOLE
  • 34
    3280017 SQUARE KEY SPEEDOMETER
    SQUARE KEY SPEEDOMETER
  • 35
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 36
    3280116 ADAPTER, DRIVE, W/ZERK
    ADAPTER, DRIVE, W/ZERK
