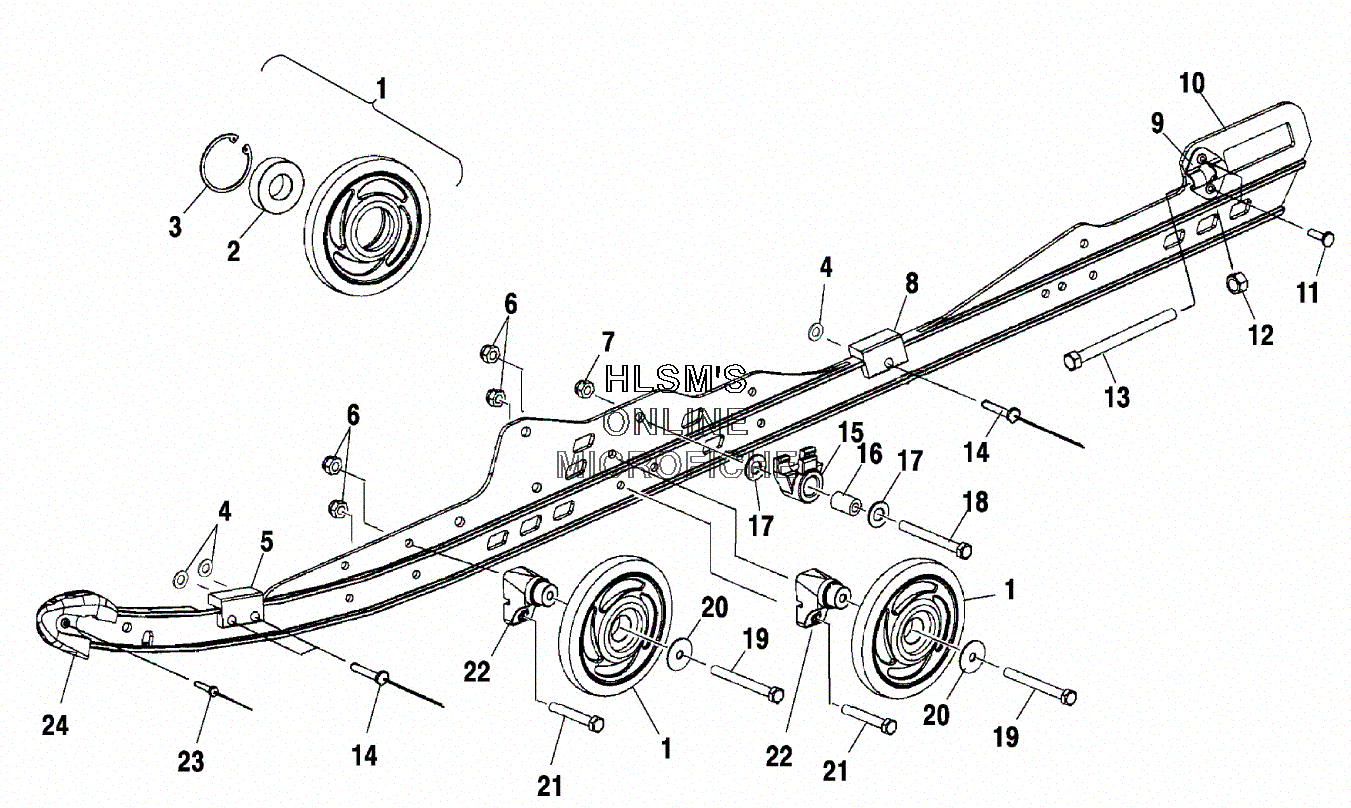

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 500 RMK 136'' (S01SR5AS) - 2001 года выпуска`
-
№АртикулНазвание
-
11590275-293 WHEEL, ADM (INDY RED) (INCL. 2-3)WHEEL, ADM (INDY RED) (INCL. 2-3)
-
23514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
37718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
47670068 NUT, PUSH-ONNUT, PUSH-ON
-
55811282 BUMPER, JOUNCE, XLBUMPER, JOUNCE, XL
-
67542324 NUTNUT
-
77542439 NUT, NYLOKNUT, NYLOK
-
85432946 LINER, BUMPERLINER, BUMPER
-
85521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
95130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
101541554 ASSY., RAIL, XL 136, (LEFT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)ASSY., RAIL, XL 136, (LEFT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)
-
101541555 ASSY., RAIL, XL 136, (RIGHT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)ASSY., RAIL, XL 136, (RIGHT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)
-
117621501 RIVETRIVET
-
127542404 NUTNUT
-
137517227 SCREWSCREW
-
147661621 PIN-HOOD HINGEPIN-HOOD HINGE
-
155431924 BLOCK, SPRING SLIDERBLOCK, SPRING SLIDER
-
165010332 BUSHINGBUSHING
-
177555893 WASHERWASHER
-
187515433 BOLTBOLT
-
197515346 BOLTBOLT
-
207571618 WASHERWASHER
-
217515317 BOLTBOLT
-
225631065 BLOCK, WHEEL MOUNT, LWTBLOCK, WHEEL MOUNT, LWT
-
237621435 RIVETRIVET
-
245433735 CAP-RAIL TIPCAP-RAIL TIP
