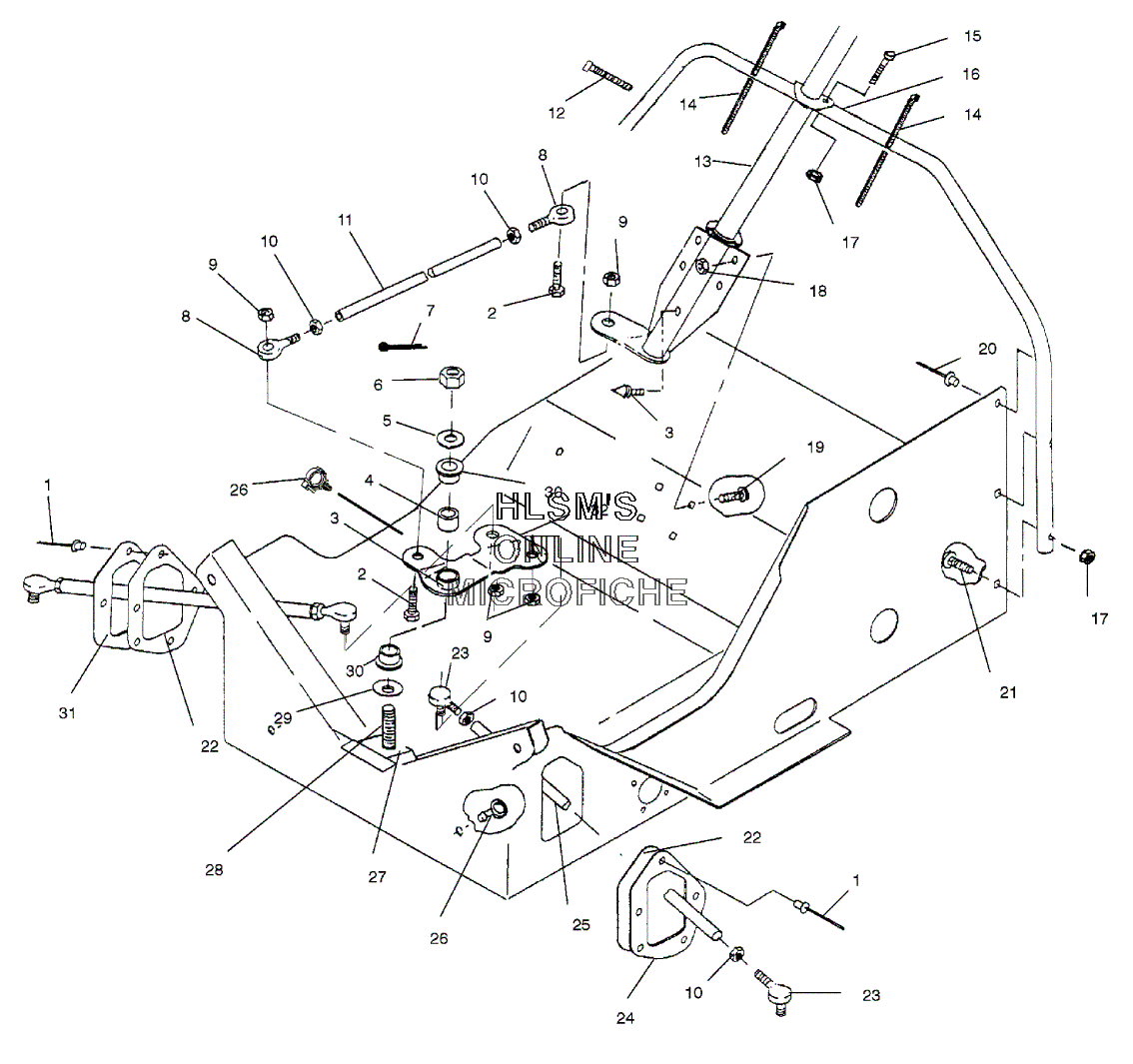

STEERING ASSEMBLY для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17621340 RIVETRIVET
-
27512404 BOLTBOLT
-
37080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
45010463 BUSHINGBUSHING
-
57555721 WASHERWASHER
-
67542703 NUT FLEXNUT FLEX
-
77661203 PIN, COTTERPIN, COTTER
-
87060164 ROD END (LEFT)ROD END (LEFT)
-
87060165 ROD END (RIGHT)ROD END (RIGHT)
-
97542403 NUT, LOCKNUT, LOCK
-
107542424 NUTNUT
-
107542401 NUT, HEXNUT, HEX
-
115332712 ROD, DRAG LINKROD, DRAG LINK
-
127080272 STRAP (BLACK)STRAP (BLACK)
-
147080804 CABLE TIE, RELEASABLE (5 1/2'')CABLE TIE, RELEASABLE (5 1/2'')
-
157517377 SCREWSCREW
-
161012887-067 STEERING, HOOP SHORT (BLACK)STEERING, HOOP SHORT (BLACK)
-
177542103 NUT, LOCKNUT, LOCK
-
187542303 NUT, FLEX LOCNUT, FLEX LOC
-
197517428 BOLTBOLT
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
217512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
225411122 BOOT, TIEROD (LEFT)BOOT, TIEROD (LEFT)
-
225411123 BOOT, TIEROD (RIGHT)BOOT, TIEROD (RIGHT)
-
237061005 ROD END (LEFT) (3/8 HI ANGLE PRO)ROD END (LEFT) (3/8 HI ANGLE PRO)
-
237060174 ROD, END (RIGHT) (3/8 HI ANGLE)ROD, END (RIGHT) (3/8 HI ANGLE)
-
245211454-067 PLATE, BOOTSEAT (BLACK)PLATE, BOOTSEAT (BLACK)
-
255020859-067 ROD, TIE (BLACK)ROD, TIE (BLACK)
-
264020139 CLIP, PLASTICCLIP, PLASTIC
-
275630563 BLOCK, STEERINGBLOCK, STEERING
-
287512682 BOLTBOLT
-
297555735 WASHER, WAVEWASHER, WAVE
-
303563907 BUSHINGBUSHING
-
315211453-067 PLATE, BOOTSEAL (RIGHT/BLACK)PLATE, BOOTSEAL (RIGHT/BLACK)
-
321822286 STEERING ASSY. (CENTER) (INCL. 3, 30)STEERING ASSY. (CENTER) (INCL. 3, 30)
