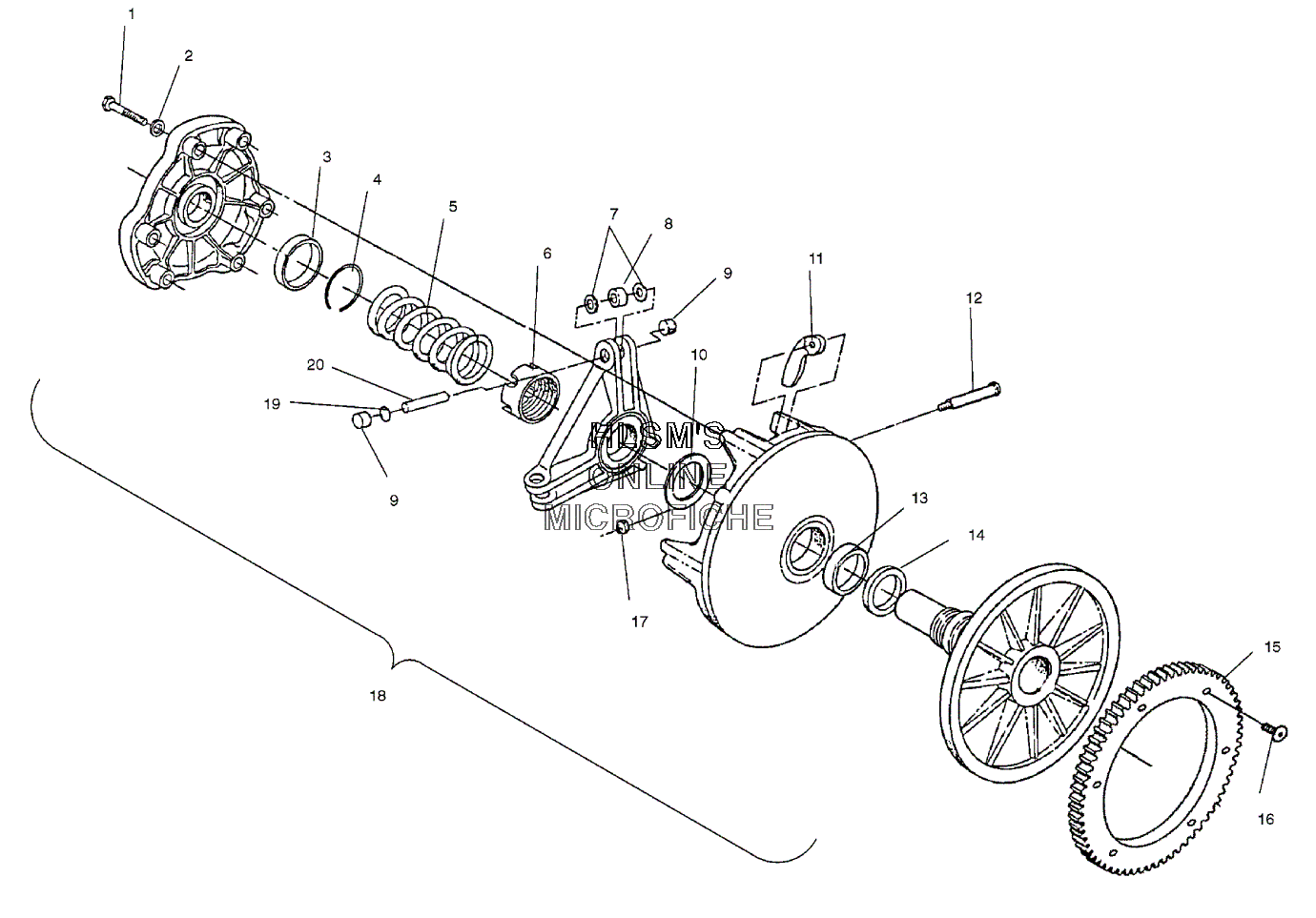

CLUTCH - DRIVE для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 3
    3576516 COVER, BEARING
    COVER, BEARING
  • 4
    7710417 RING, RETAINING BOLT
    RING, RETAINING BOLT
  • 5
    7041148 SPRING, CLUTCH (GOLD)
    SPRING, CLUTCH (GOLD)
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321457 ROLLER/BUSHING ASSY.
    ROLLER/BUSHING ASSY.
  • 9
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 10
    5210754 SPACER (.050'') (OPT)
    SPACER (.050'') (OPT)
  • 10
    5210753 SPACER (.032'') (OPT)
    SPACER (.032'') (OPT)
  • 10
    5242981 SPACER (.025'') (OPT)
    SPACER (.025'') (OPT)
  • 10
    5210752 SPACER (.020'') (OPT)
    SPACER (.020'') (OPT)
  • 11
    1321528 WEIGHT/BUSHING ASSY.
    WEIGHT/BUSHING ASSY.
  • 12
    7515105 PIN, WTEIGH HARDENED
    PIN, WTEIGH HARDENED
  • 13
    3576502 SLEEVE, BEARING
    SLEEVE, BEARING
  • 14
    5010188 BUSHING, RETAINER
    BUSHING, RETAINER
  • 15
    5131062 GEAR, RING
    GEAR, RING
  • 16
    7515351 BOLT, RING GEAR
    BOLT, RING GEAR
  • 17
    7541906 NUT, FLEX LOC
    NUT, FLEX LOC
  • 18
    1321737 CLUTCH, ES BASIC #88 (DRIVE) (LESS 5, 11)
    CLUTCH, ES BASIC #88 (DRIVE) (LESS 5, 11)
  • 19
    2200387 SHIM, DRIVE CLUTCH KIT
    SHIM, DRIVE CLUTCH KIT
  • 20
    5020422 PIN, ROLLER
    PIN, ROLLER
