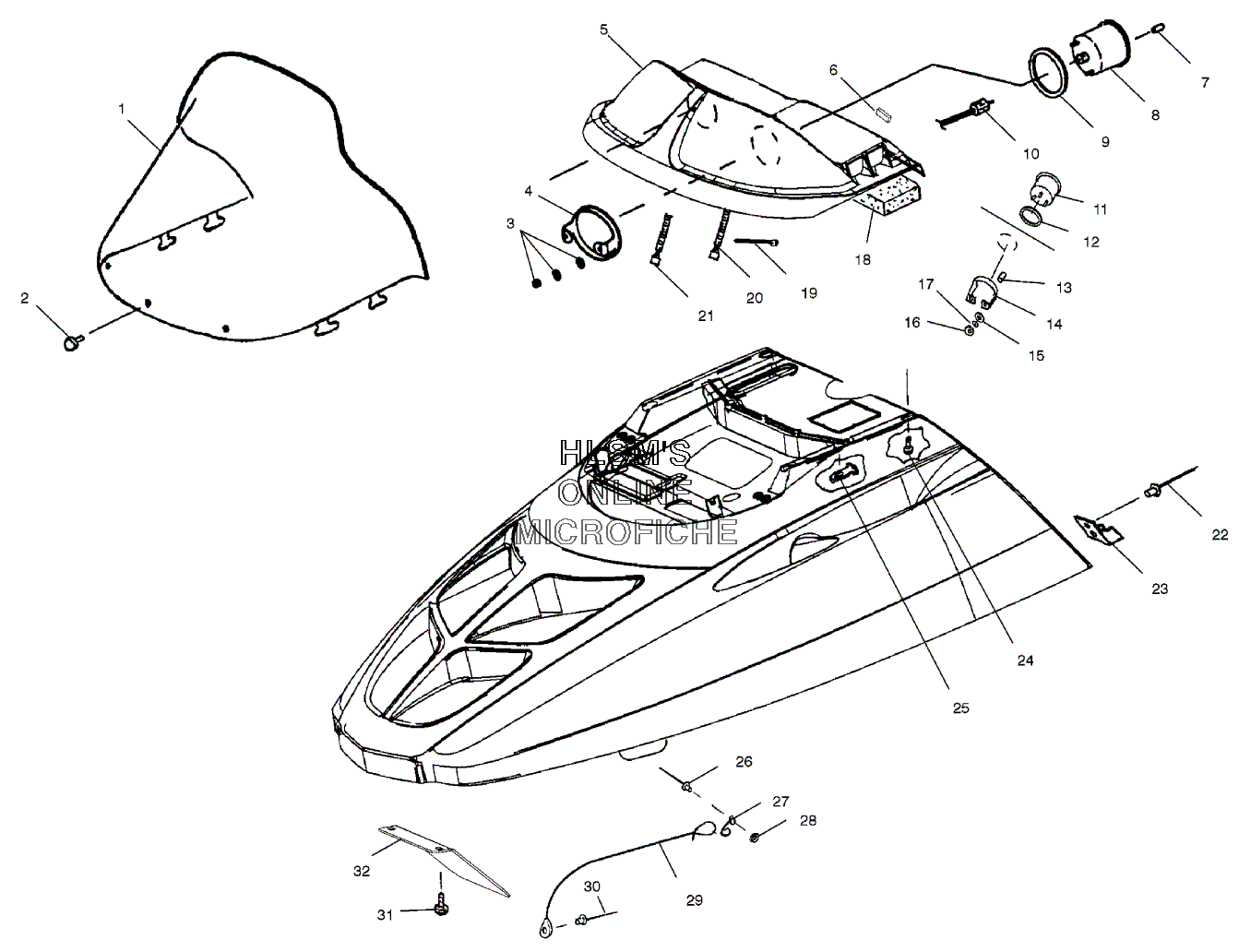

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска`
-
№АртикулНазвание
-
15433758 WINDSHEILD (MID HT 15'' SMK)WINDSHEILD (MID HT 15'' SMK)
-
27621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACH/SPEEDO (5'')BRACKET, TACH/SPEEDO (5'')
-
52632185 INSTR HSG, CLASSIC 1 UP (INCL. WARNING DECALS)INSTR HSG, CLASSIC 1 UP (INCL. WARNING DECALS)
-
64040011 INDICATOR 'TEMP' WARNINGINDICATOR 'TEMP' WARNING
-
73280186 KNOB, TRIP ODOMETER, (LEFT THREAD)KNOB, TRIP ODOMETER, (LEFT THREAD)
-
83280303 SPEEDO, (5'' 100MPH 90Ш ANGLE)SPEEDO, (5'' 100MPH 90Ш ANGLE)
-
84030015 BULB, TAILLIGHT/TACH/SPEEDOBULB, TAILLIGHT/TACH/SPEEDO
-
93280209 CUSHION, TACH/SPEEDO RUBBERCUSHION, TACH/SPEEDO RUBBER
-
103280341 CABLE, SPEEDO (90 IN.)CABLE, SPEEDO (90 IN.)
-
113280226 FUELGAUGE, BACKLIT (2'')FUELGAUGE, BACKLIT (2'')
-
114060139 FUSEFUSE
-
123280230 CUSHION, FUELGAUGE (2'') RUBBERCUSHION, FUELGAUGE (2'') RUBBER
-
133280228 SPACER, BRACKET (FUEL GAUGE)SPACER, BRACKET (FUEL GAUGE)
-
143280229 BRACKET, FUELGAUGE (2'')BRACKET, FUELGAUGE (2'')
-
153280231 WASHERWASHER
-
163280232 NUTNUT
-
173280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
185811625 FOAM, PREFILTERFOAM, PREFILTER
-
197080138 STRAP PANDUITSTRAP PANDUIT
-
202460732 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
212460876 HARNESS, JUMPER TEMP LIGHTHARNESS, JUMPER TEMP LIGHT
-
227621334 RIVETRIVET
-
235430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
247517441 SCREWSCREW
-
255410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
267661084 RIVETRIVET
-
275242893 CLIP, PIGTAILCLIP, PIGTAIL
-
287555904 BURR, RIVETBURR, RIVET
-
297080764 CABLE, HOODCABLE, HOOD
-
307621402 POP, RIVETPOP, RIVET
-
317512068 SCREWSCREW
-
325243393 DEFLECTOR, AIRDEFLECTOR, AIR
