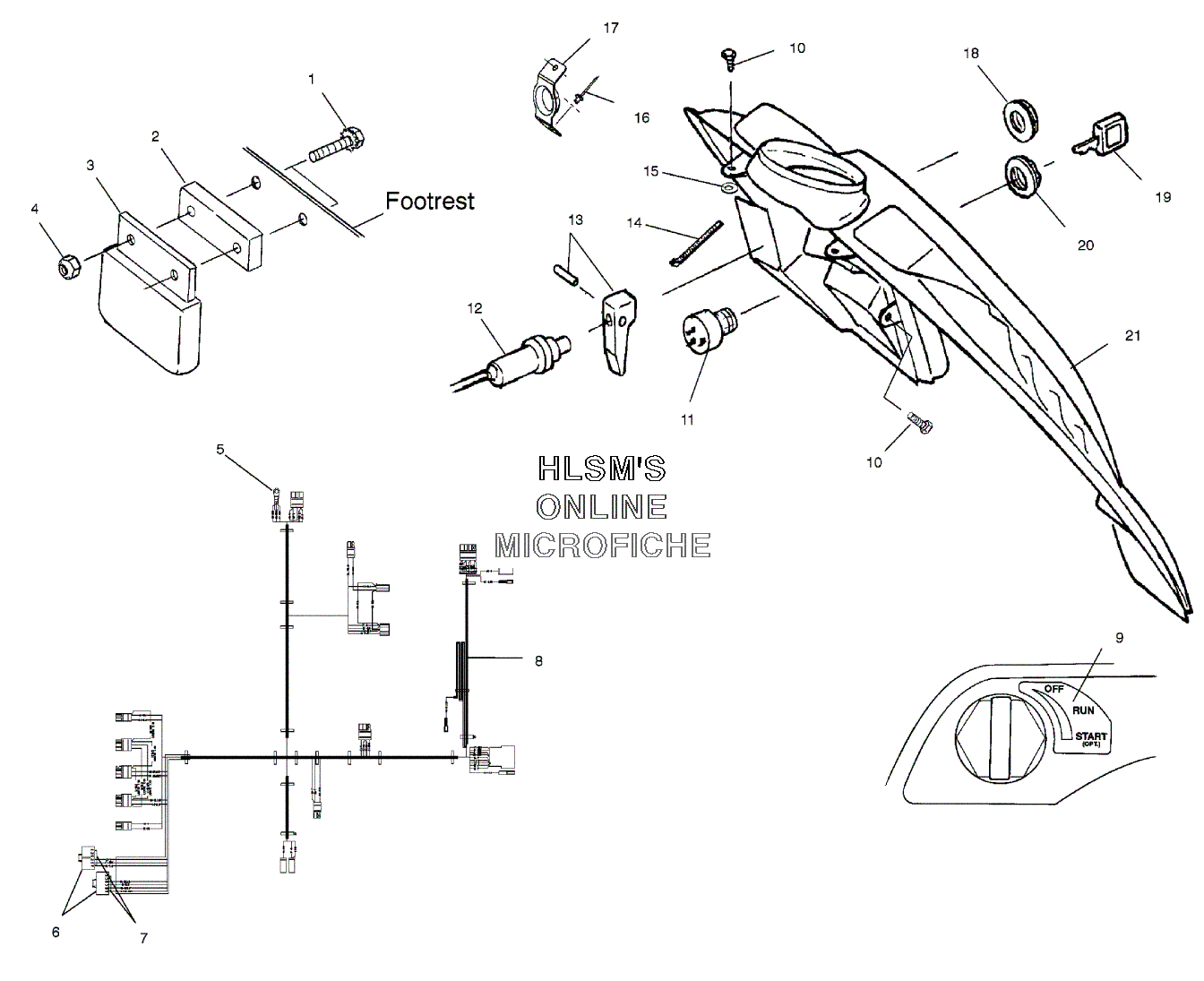

CONSOLE для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060122 REGULATOR (14 VAC.LR, 9)REGULATOR (14 VAC.LR, 9)
-
47541925 NUTNUT
-
54020092 TERMINAL, RINGTERMINAL, RING
-
64010193 HOUSING, CONNECTOR (PAC #12186213)HOUSING, CONNECTOR (PAC #12186213)
-
74010192 SOCKET, PACKARD (#12047767)SOCKET, PACKARD (#12047767)
-
82460799 HARNESS, MAINWIREHARNESS, MAINWIRE
-
97077367 DECAL, CONSOLE IGNITIONDECAL, CONSOLE IGNITION
-
107515199 SCREWSCREW
-
112200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
127080753 CABLE, CHOKE DUAL (INCL. 13, 18)CABLE, CHOKE DUAL (INCL. 13, 18)
-
132201439 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
147080804 CABLE TIE, RELEASABLE (5 1/2'')CABLE TIE, RELEASABLE (5 1/2'')
-
157555932 WASHER, NYLONWASHER, NYLON
-
167621330 RIVET, POPRIVET, POP
-
175243049 GUIDE, RECOILGUIDE, RECOIL
-
185432944 NUT, CHOKENUT, CHOKE
-
199990000 NUT, CHOKENUT, CHOKE
-
207547035 NUT, IGNITIONNUT, IGNITION
-
215432993 CONSOLE, HYB. W/REV (BLACK)CONSOLE, HYB. W/REV (BLACK)
