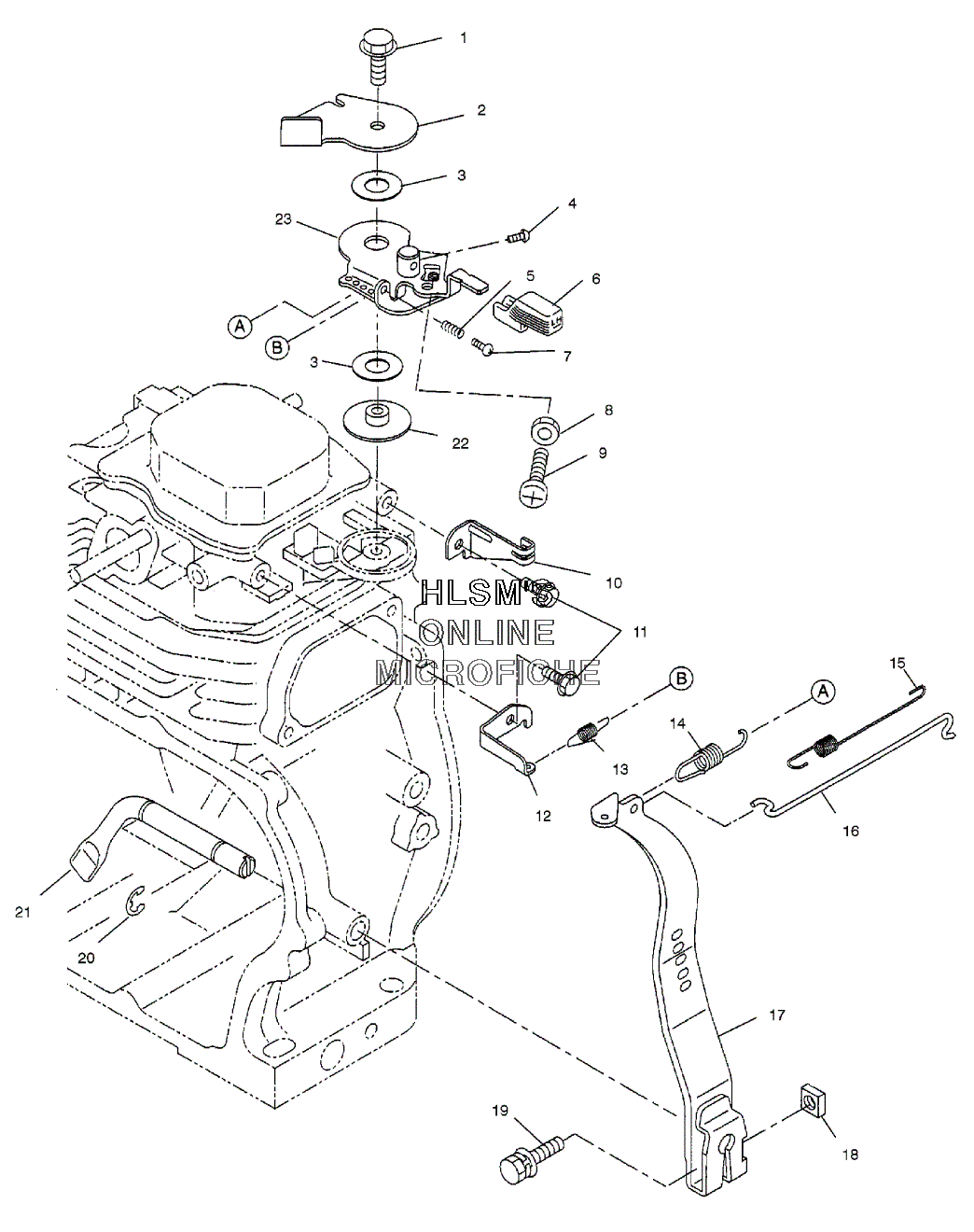

SPEED CONTROL - GOVERNOR для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 10
    3086944 SPEED CONTROL, ASSY. (INCL.. 6, 23)
    SPEED CONTROL, ASSY. (INCL.. 6, 23)
  • 1
    3084566 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    3086605 PLATE, STOP
    PLATE, STOP
  • 3
    3086954 WASHER, FRICTION
    WASHER, FRICTION
  • 4
    3086609 SCREW
    SCREW
  • 5
    3086606 SPRING, IDLE SET
    SPRING, IDLE SET
  • 6
    3086604 KNOB, CONTROL, SPEED
    KNOB, CONTROL, SPEED
  • 7
    3081497 SCREW
    SCREW
  • 8
    3083073 NUT
    NUT
  • 9
    3081600 SCREW AND WASHER
    SCREW AND WASHER
  • 10
    3086973 BRACKET, WIRE
    BRACKET, WIRE
  • 11
    3086125 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    3086862 BRACKET, RETURN SPRING
    BRACKET, RETURN SPRING
  • 13
    3086956 SPRING, RETURN
    SPRING, RETURN
  • 14
    3086599 SPRING, GOVERNOR
    SPRING, GOVERNOR
  • 15
    3087014 SPRING-ROD
    SPRING-ROD
  • 16
    3086596 ROD, GOVERNOR
    ROD, GOVERNOR
  • 17
    3086594 LEVER, GOVERNOR
    LEVER, GOVERNOR
  • 18
    3086598 NUT
    NUT
  • 19
    3082038 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 20
    3086053 CLIP
    CLIP
  • 21
    3086595 SHAFT, GOVERNOR
    SHAFT, GOVERNOR
  • 22
    3086955 SPACER
    SPACER
  • 23
    3086953 CONTROL, SPEED
    CONTROL, SPEED
