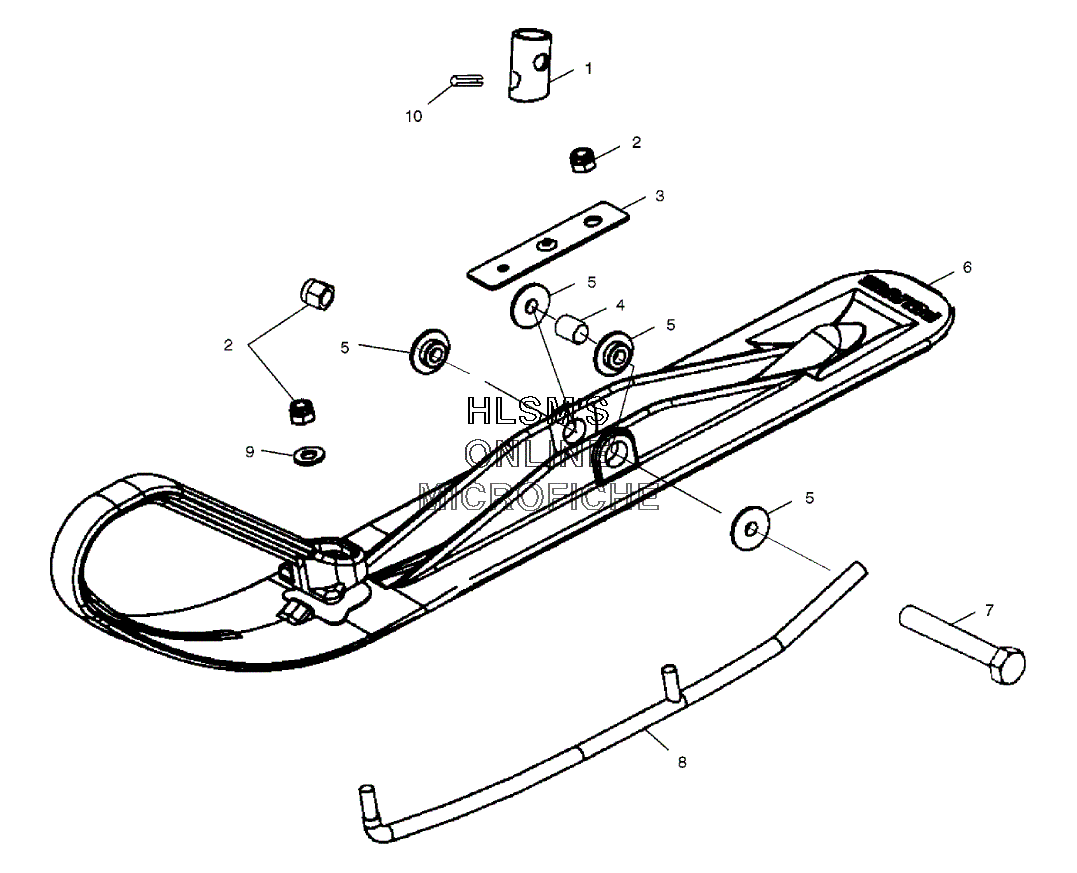

SKI ASSEMBLY для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска`
-
№АртикулНазвание
-
15132470 TUBE, SPACERTUBE, SPACER
-
27542324 NUTNUT
-
35243980 BRACKET, SKI STOPBRACKET, SKI STOP
-
45132284 BUSHING, SPACER, SKIBUSHING, SPACER, SKI
-
55132328 BUSHING, SKI (.328 ID X 1.04 OD)BUSHING, SKI (.328 ID X 1.04 OD)
-
61820765-070 ASSY., SKI (BLACK) (INCL. 2-4, 8, 9)ASSY., SKI (BLACK) (INCL. 2-4, 8, 9)
-
77515385 SCREWSCREW
-
81820766 SKAGSKAG
-
97558402 WASHER STEELWASHER STEEL
-
107661915 PIN, SPRINGPIN, SPRING
Все узлы модели:
- BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ TRACK
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- • SKI ASSEMBLY
- SPEED CONTROL - GOVERNOR
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
