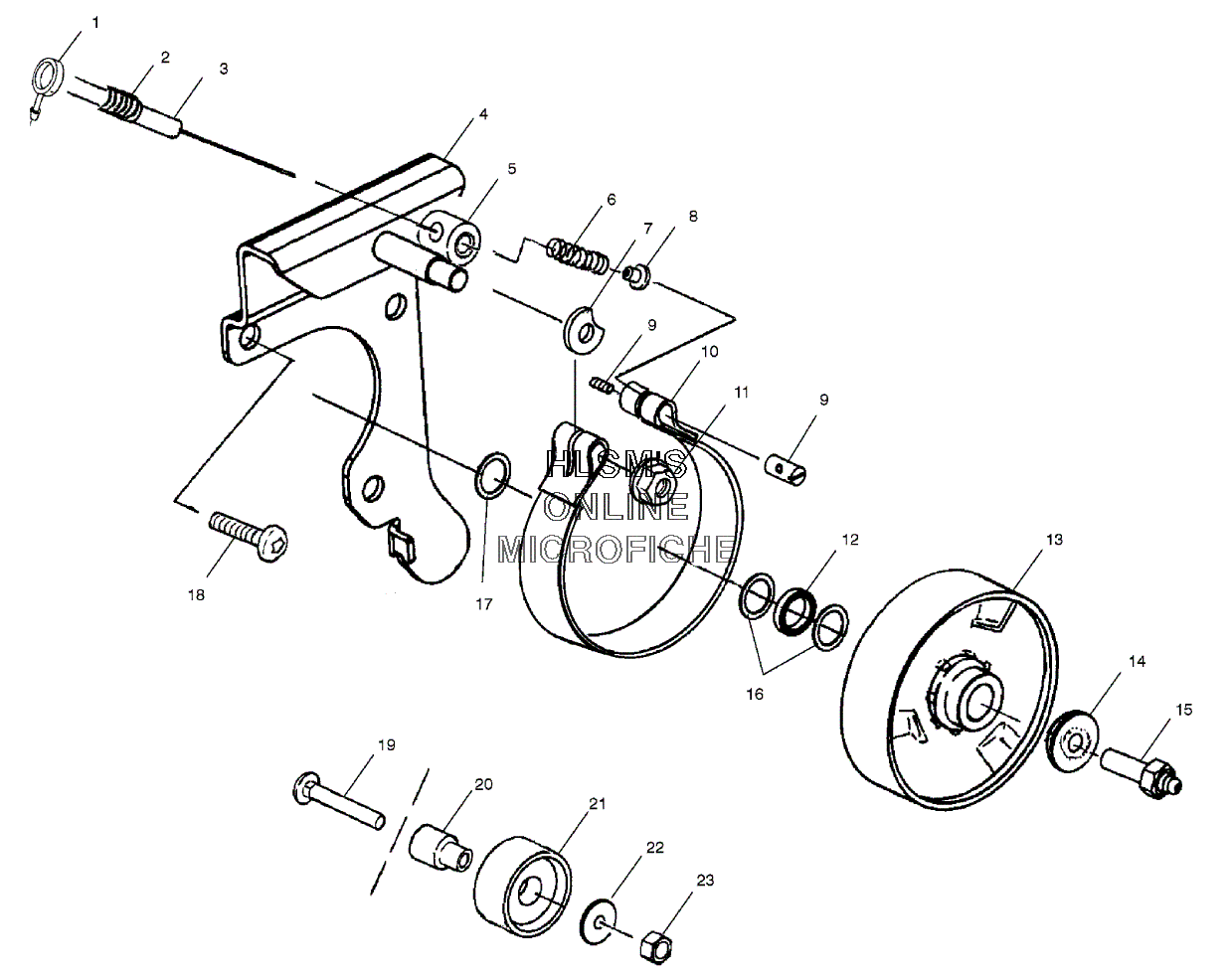

CLUTCH ASSEMBLY для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7670102 CLIP, SILENCER
    CLIP, SILENCER
  • 2
    4010051-13 CONDUIT, CONVOLUTED, 13CM
    CONDUIT, CONVOLUTED, 13CM
  • 3
    7080961 CABLE, BRAKE, W/ADAPTER
    CABLE, BRAKE, W/ADAPTER
  • 4
    1013151 MOUNT, BRAKE/TENSIONER
    MOUNT, BRAKE/TENSIONER
  • 5
    5132730 COLLAR-BRAKE SPRING/CABLE
    COLLAR-BRAKE SPRING/CABLE
  • 6
    7041853 SPRING-BRAKE RELEASE
    SPRING-BRAKE RELEASE
  • 7
    5132734 SUPPORT-BRAKE CABLE
    SUPPORT-BRAKE CABLE
  • 8
    5132729 BUSHING, BRAKE SPRING/CABLE
    BUSHING, BRAKE SPRING/CABLE
  • 9
    5132476 PIN, BRAKE W/SET SCREW
    PIN, BRAKE W/SET SCREW
  • 9
    7512257 SCREW, SET
    SCREW, SET
  • 10
    5243864 BAND, BRAKE (INCL. 9)
    BAND, BRAKE (INCL. 9)
  • 11
    7542321 NUT LOCK
    NUT LOCK
  • 12
    5132324 SPACER-CLUTCH (OUTER)
    SPACER-CLUTCH (OUTER)
  • 13
    1321966 CLUTCH-DRIVE #40
    CLUTCH-DRIVE #40
  • 14
    5132462 SPACER, CLUTCH, END
    SPACER, CLUTCH, END
  • 15
    7517780 BOLT, ZERK, 5/16X.90
    BOLT, ZERK, 5/16X.90
  • 16
    7556138 WASHER, FIBER
    WASHER, FIBER
  • 17
    7555918 BUSHING
    BUSHING
  • 18
    7517810 SCREW
    SCREW
  • 19
    7515394 SCREW
    SCREW
  • 20
    5132601 BUSHING, TENSIONER
    BUSHING, TENSIONER
  • 21
    5433672 PULLEY, IDLER, TENSIONER
    PULLEY, IDLER, TENSIONER
  • 22
    7555734 WASHER
    WASHER
  • 23
    7542324 NUT
    NUT
