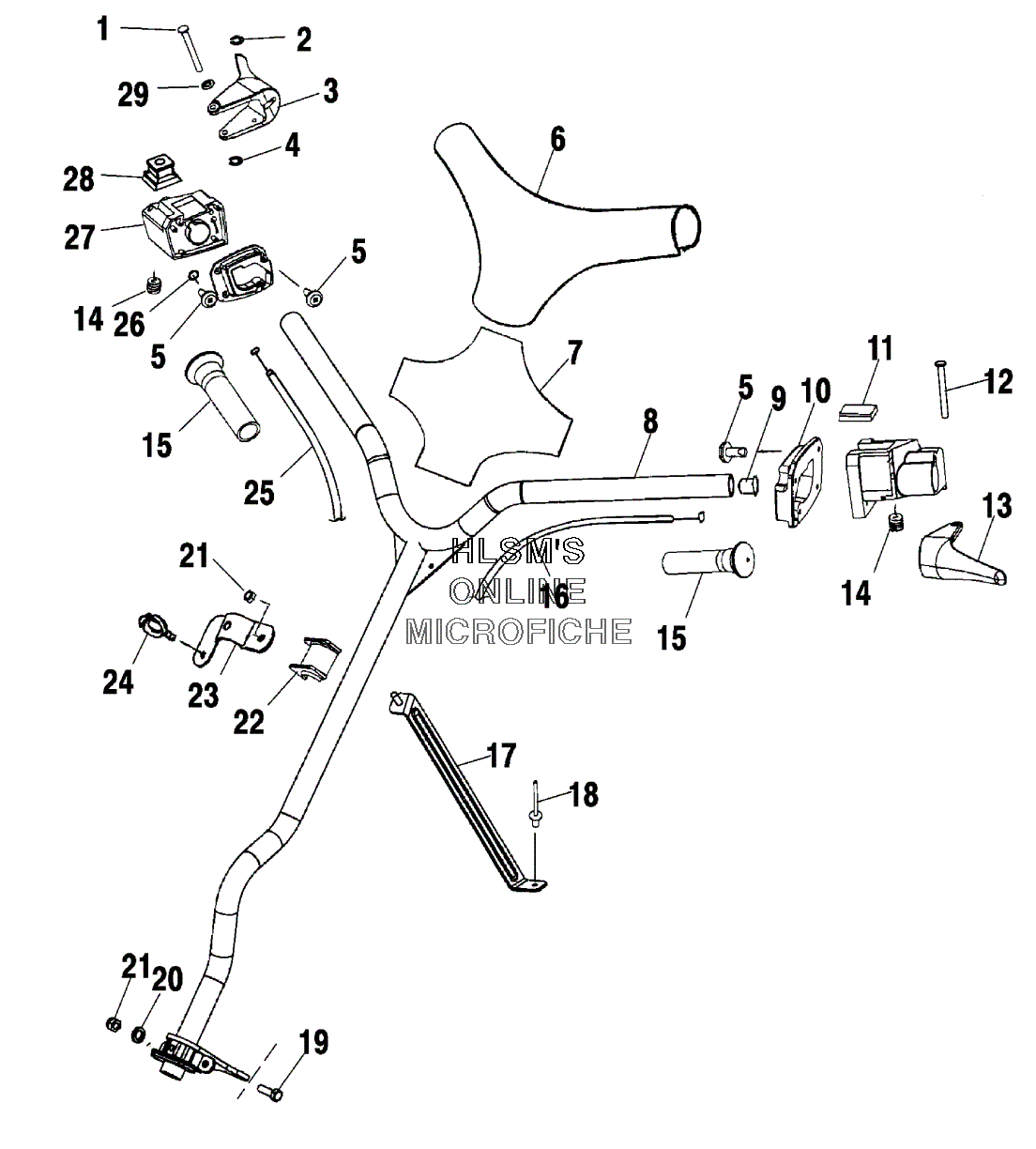

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN, HINGE
    PIN, HINGE
  • 2
    7710503 RETAINING RING
    RETAINING RING
  • 3
    5433527 LEVER-THROTTLE
    LEVER-THROTTLE
  • 4
    7710401 'E' RING
    'E' RING
  • 5
    7511848 SCREW, SEMS
    SCREW, SEMS
  • 6
    2682537 HANDLEBAR, PAD, 120
    HANDLEBAR, PAD, 120
  • 7
    5811884 FOAM, HANDLEBAR PAD
    FOAM, HANDLEBAR PAD
  • 8
    1820773-067 STEERING POST, HANDLEBAR
    STEERING POST, HANDLEBAR
  • 9
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 10
    5430604 BLOCK, ADAPTER
    BLOCK, ADAPTER
  • 11
    5433622 INSERT-BRAKE/THROTTLE BLOCK
    INSERT-BRAKE/THROTTLE BLOCK
  • 12
    7661617 RIVET
    RIVET
  • 13
    5433528 LEVER, BRAKE
    LEVER, BRAKE
  • 14
    7512465 SCREW
    SCREW
  • 15
    5433476 GRIP-HANDLEBAR
    GRIP-HANDLEBAR
  • 16
    7080961 CABLE, BRAKE, W/ADAPTER
    CABLE, BRAKE, W/ADAPTER
  • 17
    1013096-067 BRACE, STRNGPOST (LEFT/BLACK)
    BRACE, STRNGPOST (LEFT/BLACK)
  • 17
    1013097-067 BRACE, STEERINGPOST (RIGHT/BLACK)
    BRACE, STEERINGPOST (RIGHT/BLACK)
  • 18
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 19
    7512193 BOLT
    BOLT
  • 20
    7558301 WASHER
    WASHER
  • 21
    7542122 NUT-LOCK
    NUT-LOCK
  • 22
    5433416 BUSHING, STEERING (UPPER)
    BUSHING, STEERING (UPPER)
  • 23
    5244048 BRACKET, STEER POST
    BRACKET, STEER POST
  • 24
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
  • 25
    7080860 CABLE, THROTTLE
    CABLE, THROTTLE
  • 26
    7555727 RIVET BURR
    RIVET BURR
  • 27
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 28
    4010316 SWTCH, AUX SHUT-OFF, CLOSED
    SWTCH, AUX SHUT-OFF, CLOSED
  • 29
    7555730 WASHER
    WASHER
