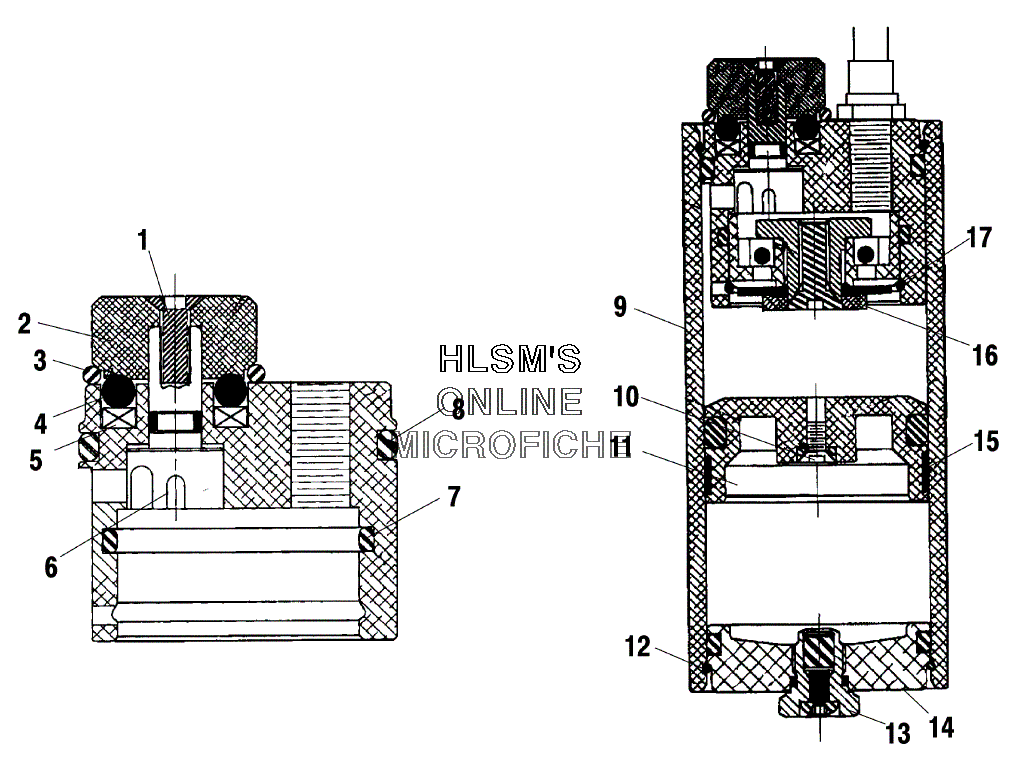

SUSPENSION - COMPRESSION DAMPING RESERVOIR для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска`
-
№АртикулНазвание
-
341500263 HOUSING (INCL. 1-8)HOUSING (INCL. 1-8)
-
341500329 RESERVOIR ASSY., W/GROOVE (INCL. 1-17)RESERVOIR ASSY., W/GROOVE (INCL. 1-17)
-
11500223 SCREWSCREW
-
21500224 KNOB, DAMP ADJUSTKNOB, DAMP ADJUST
-
31500253 O-RINGO-RING
-
41500226 BALL, AIR VALVEBALL, AIR VALVE
-
51500225 SPRING, AIR VALVESPRING, AIR VALVE
-
61500254 DRUM COMPDRUM COMP
-
71500229 SEAL, O-RINGSEAL, O-RING
-
81500228 SEAL, O-RINGSEAL, O-RING
-
91500325 RESERVOIR, W/GROOVERESERVOIR, W/GROOVE
-
101500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
111500235 PISTON, FLOAT, ASSY.PISTON, FLOAT, ASSY.
-
121500236 RING, RETAININGRING, RETAINING
-
131500232 SCREWSCREW
-
141500231 RES. END CAP ASSY.RES. END CAP ASSY.
-
151500230 BEARING, EXTERNALBEARING, EXTERNAL
-
161500324 PLATE, DAMPING 4-HOLEPLATE, DAMPING 4-HOLE
-
171500233 RING, RETAININGRING, RETAINING
