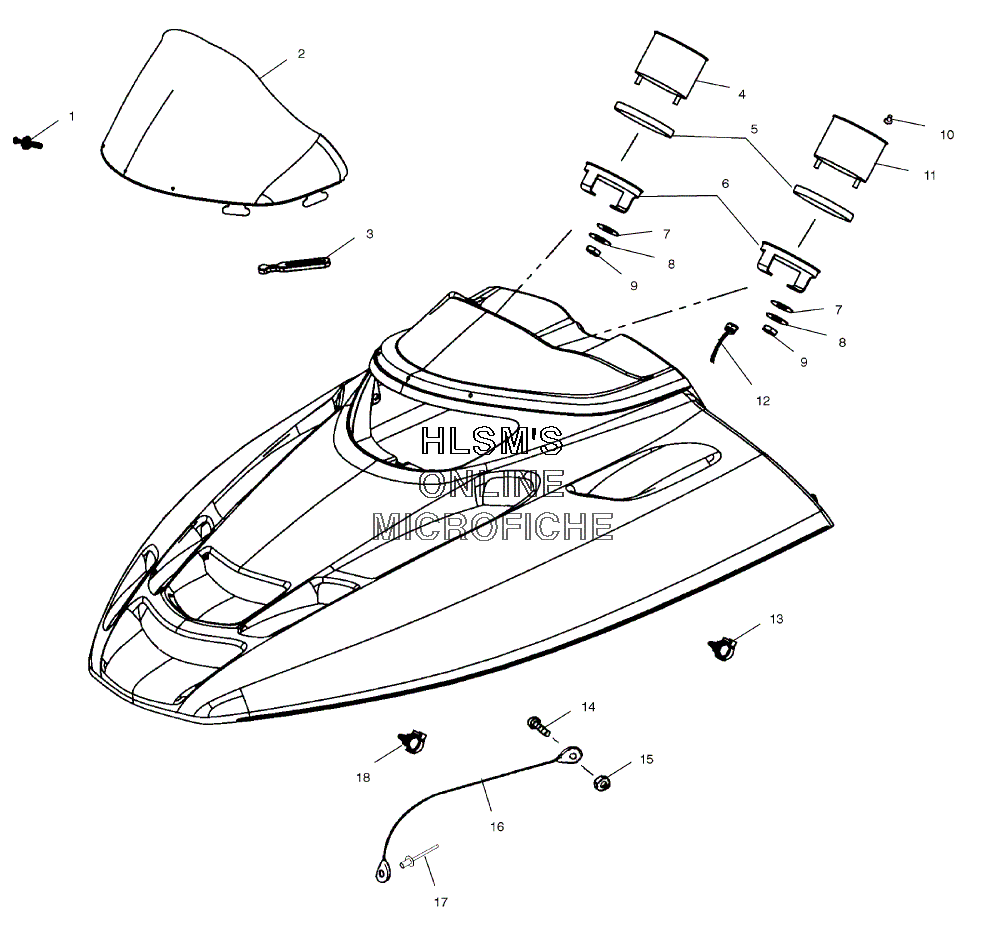

HOOD ASSEMBLY W/ WINDSHIELD для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
25433741 WINDSHIELD, EDGE (13'') (CLEAR)WINDSHIELD, EDGE (13'') (CLEAR)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280250 TACH ASSY., 6 PULSE (5 IN)TACH ASSY., 6 PULSE (5 IN)
-
44030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
53280209 CUSHION, TACH/SPEEDOMETER RUBBERCUSHION, TACH/SPEEDOMETER RUBBER
-
63280210 BRACKET, TACH/SPEEDOMETER (5'')BRACKET, TACH/SPEEDOMETER (5'')
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT THREADED)KNOB, TRIP ODOMETER (LEFT THREADED)
-
113280254 SPEEDO, BACKLIT (5IN) (120MPH)SPEEDO, BACKLIT (5IN) (120MPH)
-
114030015 BULB, TAILLIGHT/TACH/SPEEDOMETERBULB, TAILLIGHT/TACH/SPEEDOMETER
-
123280341 CABLE, SPEEDOMETER (90 IN)CABLE, SPEEDOMETER (90 IN)
-
134020139 CLIP, PLASTICCLIP, PLASTIC
-
147512018 SCREWSCREW
-
157541925 NUTNUT
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177621467 RIVET, BLINDRIVET, BLIND
-
184020149 CLIP (ROSEBUD)CLIP (ROSEBUD)
