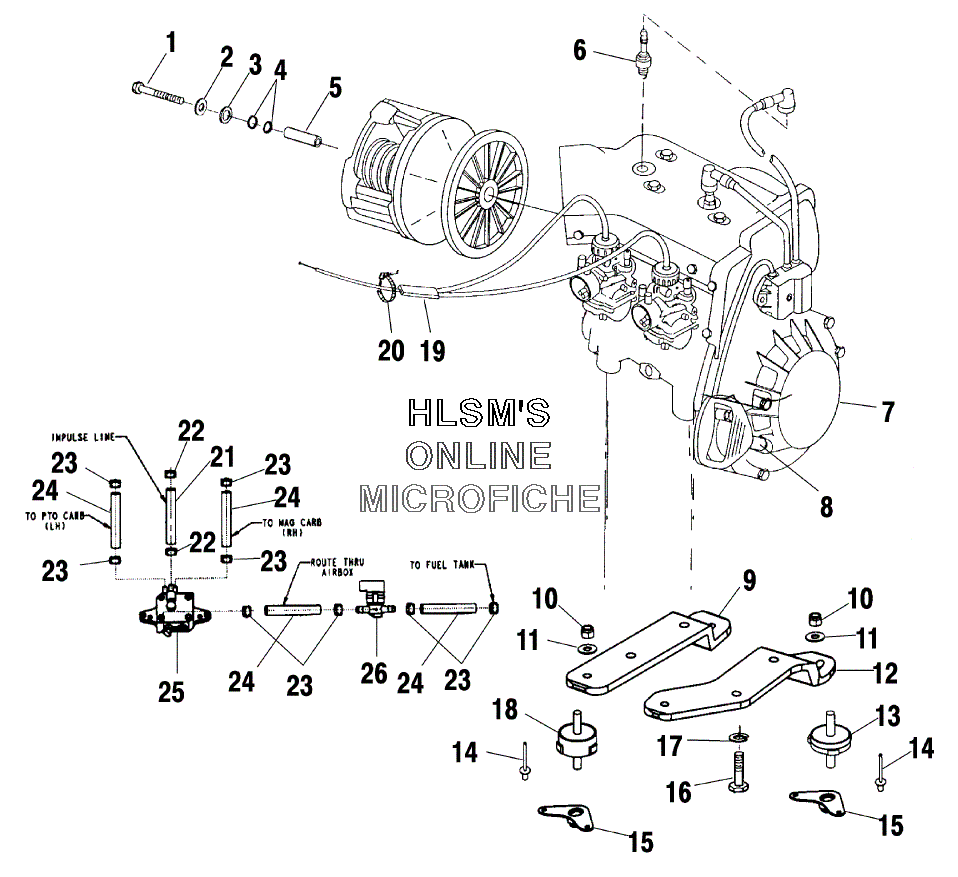

ENGINE MOUNTING W/ SHORT BLOCK для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
17517776 SCREWSCREW
-
27575202 WASHER, LOCKWASHER, LOCK
-
35010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
73085944 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
85431499 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
95244172 STRAP, ENGINE MOUNT (LEFT)STRAP, ENGINE MOUNT (LEFT)
-
107542451 NUT, NYLOCNUT, NYLOC
-
117556099 WASHERWASHER
-
125244173 STRAP, ENGINE MOUNT XCF EDGE (RIGHT)STRAP, ENGINE MOUNT XCF EDGE (RIGHT)
-
133021101 MOUNT ENGINE (3/8-16) (3-TAB)MOUNT ENGINE (3/8-16) (3-TAB)
-
147621319 RIVETRIVET
-
151012680 NUT, PLATE SUPPORTNUT, PLATE SUPPORT
-
167512539 BOLTBOLT
-
177553101 WASHER, LOCKWASHER, LOCK
-
183021097 MOUNT, ENGINE (3/8-16) (3-TAB)MOUNT, ENGINE (3/8-16) (3-TAB)
-
197080916 CABLE, THROTTLECABLE, THROTTLE
-
207080138 STRAP PANDUITSTRAP PANDUIT
-
218450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
227080003 CLAMP, HOSECLAMP, HOSE
-
237080307 CLAMPCLAMP
-
248350018-600 TUBING, ETHER ERETHNE (160CM) (OPT)TUBING, ETHER ERETHNE (160CM) (OPT)
-
253086975 FUEL PUMPFUEL PUMP
-
267052248 VALVE-FUEL, PLASTIC IN LINE (1/4'')VALVE-FUEL, PLASTIC IN LINE (1/4'')
