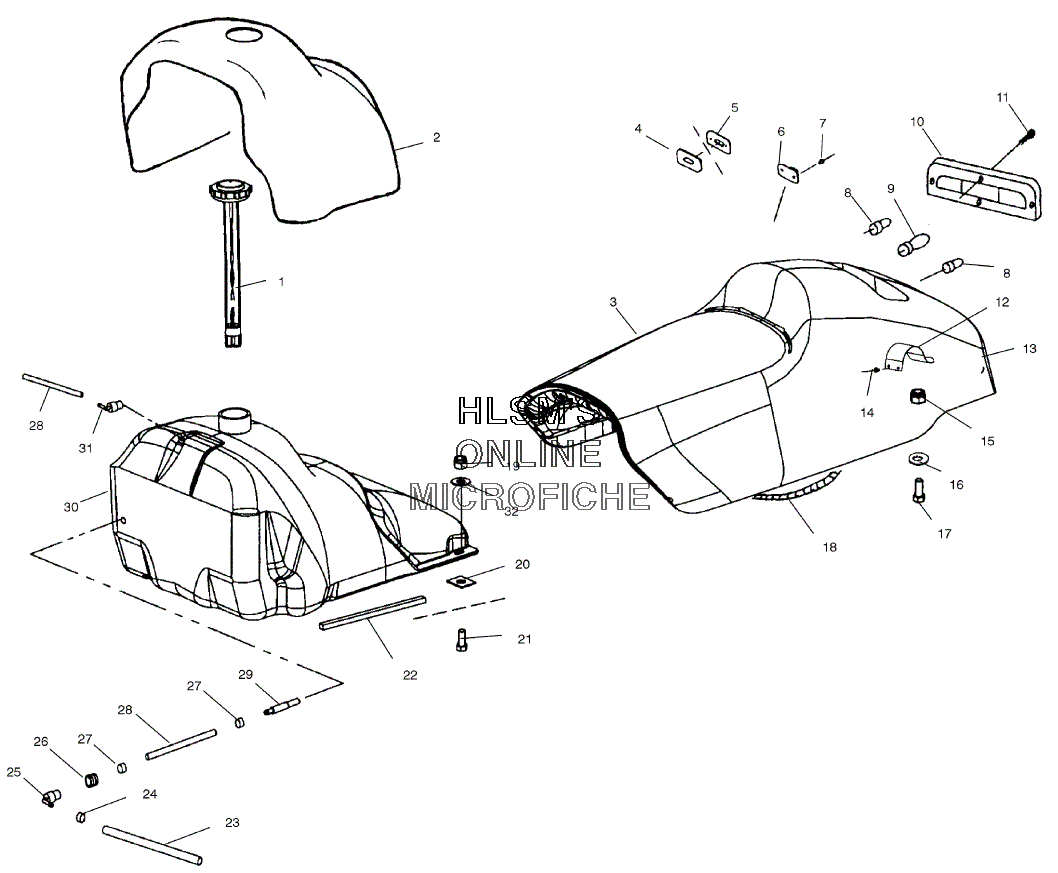

SEAT W/ GAS TANK ASSEMBLY для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    2511195-070 CAP ASSY., FUEL (BLACK)
    CAP ASSY., FUEL (BLACK)
  • 2
    2682571 COVER ASSY., TANK EDGE
    COVER ASSY., TANK EDGE
  • 3
    2682573 SEAT ASSY., EDGE RACER (INCL. 3-13, 18)
    SEAT ASSY., EDGE RACER (INCL. 3-13, 18)
  • 3
    2682578 COVER ASSY., SEAT EDGE RACER
    COVER ASSY., SEAT EDGE RACER
  • 4
    7080550 GROMMET, RELATCH 1'' (BOTTOM)
    GROMMET, RELATCH 1'' (BOTTOM)
  • 5
    7080549 GROMMET, RELATCH 1'' (TOP)
    GROMMET, RELATCH 1'' (TOP)
  • 6
    7080548 TWISTLOCK, RELATCH 1'' W/HOLE
    TWISTLOCK, RELATCH 1'' W/HOLE
  • 7
    7621337 RIVET
    RIVET
  • 8
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 9
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 10
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 11
    7511840 SCREW
    SCREW
  • 12
    5243185 RETAINER CLIP, TOOL POUCH
    RETAINER CLIP, TOOL POUCH
  • 13
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 14
    7621472 RIVET
    RIVET
  • 15
    7547114 NUT, WELD TAB
    NUT, WELD TAB
  • 16
    7558301 WASHER
    WASHER
  • 17
    7512242 SCREW
    SCREW
  • 18
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 19
    7542122 NUT, LOCK
    NUT, LOCK
  • 20
    7670021 SPEED, NUT
    SPEED, NUT
  • 21
    7512193 BOLT
    BOLT
  • 22
    5810063 PAD, GAS TANK
    PAD, GAS TANK
  • 23
    8350018 TUBING, ETHER ERETHNE (160CM) (OPT)
    TUBING, ETHER ERETHNE (160CM) (OPT)
  • 24
    7080307 CLAMP
    CLAMP
  • 25
    7052259 FITTING (1/4'' 90Ш DEX)
    FITTING (1/4'' 90Ш DEX)
  • 26
    7052028 GROMMET, TANK FITTING
    GROMMET, TANK FITTING
  • 27
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 28
    8350019-600 FUEL LINE, ESTER (OPT)
    FUEL LINE, ESTER (OPT)
  • 29
    7052243 FUEL PICKUP, W/FILTER
    FUEL PICKUP, W/FILTER
  • 30
    2520170 FUEL TANK ASSY., EDGE TRANSLUCENT (INCL. 29-31)
    FUEL TANK ASSY., EDGE TRANSLUCENT (INCL. 29-31)
  • 31
    7052095 FITTING (90 DEG) (1/8)
    FITTING (90 DEG) (1/8)
  • 32
    7555960 WASHER, FLAT
    WASHER, FLAT
