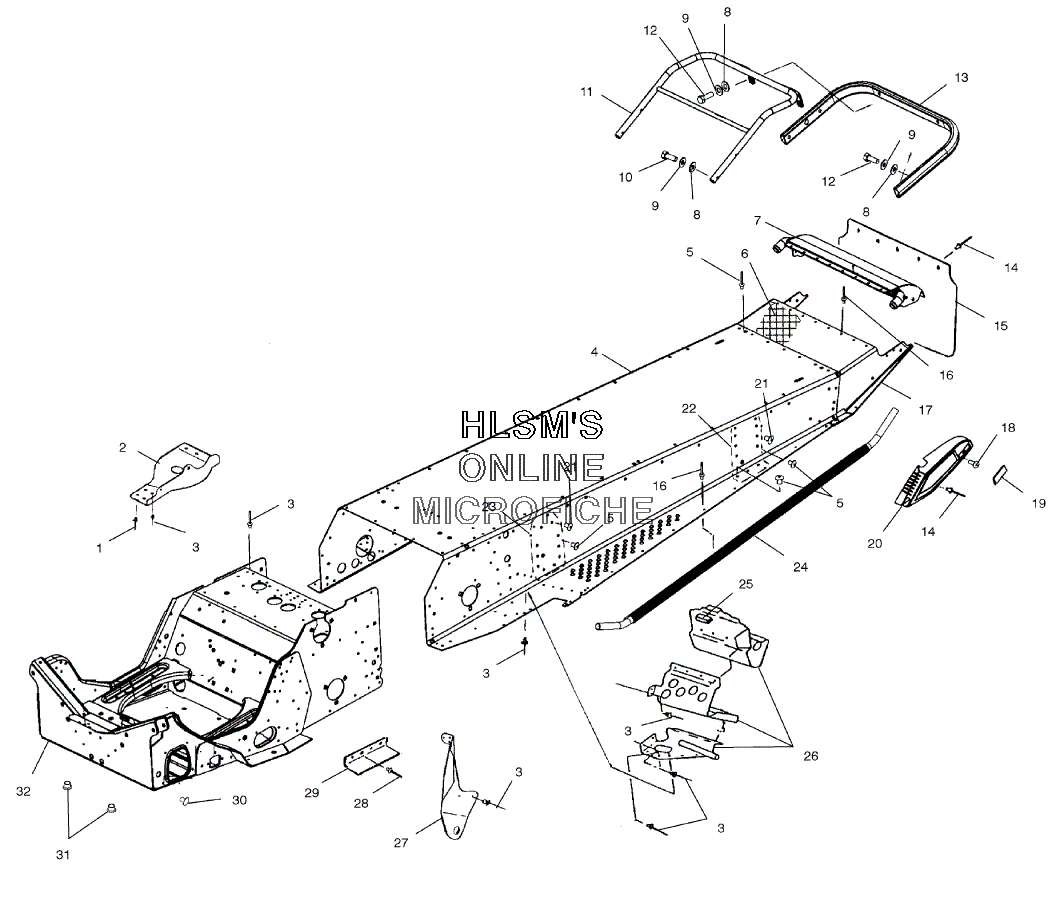

TUNNEL ASSEMBLY для Polaris 800 RMK (S00SR8BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7661639 RIVET (3/16-.214-.420)
    RIVET (3/16-.214-.420)
  • 2
    5243419 GUARD, CHAINCASE SUMP, TUNNEL
    GUARD, CHAINCASE SUMP, TUNNEL
  • 3
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 4
    1013208 TUNNEL, ASSY., LWT, RMK (INCL. 7, 22, 23)
    TUNNEL, ASSY., LWT, RMK (INCL. 7, 22, 23)
  • 5
    7661837 RIVET
    RIVET
  • 6
    5411776 PROTECTOR-BED, RMK
    PROTECTOR-BED, RMK
  • 7
    1240053 EXCHANGER CROSSOVER (REAR)
    EXCHANGER CROSSOVER (REAR)
  • 8
    7558301 WASHER
    WASHER
  • 9
    7552801 LOCK WASHER
    LOCK WASHER
  • 10
    7512126 SCREW
    SCREW
  • 11
    1013130-067 RACK, RMK (BLACK)
    RACK, RMK (BLACK)
  • 12
    7512240 BOLT
    BOLT
  • 13
    2670168 BUMPER,ASM (BLACK/REAR)
    BUMPER,ASM (BLACK/REAR)
  • 14
    7621418 POP RIVET
    POP RIVET
  • 15
    5410394 FLAP-SNOW,MOLDED (SILVER/BLACK)
    FLAP-SNOW,MOLDED (SILVER/BLACK)
  • 16
    7661079 RIVET-3/16 (.039-250)
    RIVET-3/16 (.039-250)
  • 17
    5243390 CLOSE-OFF
    CLOSE-OFF
  • 18
    7512017 SCREW
    SCREW
  • 19
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 20
    5433361-067 SKIRT-SNOW (BLACK/LEFT)
    SKIRT-SNOW (BLACK/LEFT)
  • 20
    5433362-067 SKIRT-SNOW (BLACK/RIGHT)
    SKIRT-SNOW (BLACK/RIGHT)
  • 21
    7661836 RIVET
    RIVET
  • 22
    1012929-067 WELD-SUSPENSION, BRACKET (BLACK/LEFT/REAR)
    WELD-SUSPENSION, BRACKET (BLACK/LEFT/REAR)
  • 22
    1012937-067 BRACKET SUSPENSION (RIGHT/BLACK/REAR)
    BRACKET SUSPENSION (RIGHT/BLACK/REAR)
  • 23
    5244287-067 PAD, SUSPENSION (FRONT)
    PAD, SUSPENSION (FRONT)
  • 24
    1240058 EXTRUSION GRIPPER/DE-ICER
    EXTRUSION GRIPPER/DE-ICER
  • 25
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 26
    1013004 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 26
    1013005 FOOTREST, ASSY. (RIGHT)
    FOOTREST, ASSY. (RIGHT)
  • 27
    5242494 BRACE, FOOTREST/TR. ARM MOUNT (LEFT)
    BRACE, FOOTREST/TR. ARM MOUNT (LEFT)
  • 27
    5242495 BRACE, FOOTREST/TR. ARM MOUNT (RIGHT)
    BRACE, FOOTREST/TR. ARM MOUNT (RIGHT)
  • 28
    7621452 RIVET
    RIVET
  • 29
    5222857 GUARD, ADAPTER GUIDE
    GUARD, ADAPTER GUIDE
  • 30
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 31
    7080398 PLUG, HOLE
    PLUG, HOLE
  • 32
    1013102-067 BULKHEAD,CRC,GEN 2, (BLACK)
    BULKHEAD,CRC,GEN 2, (BLACK)
