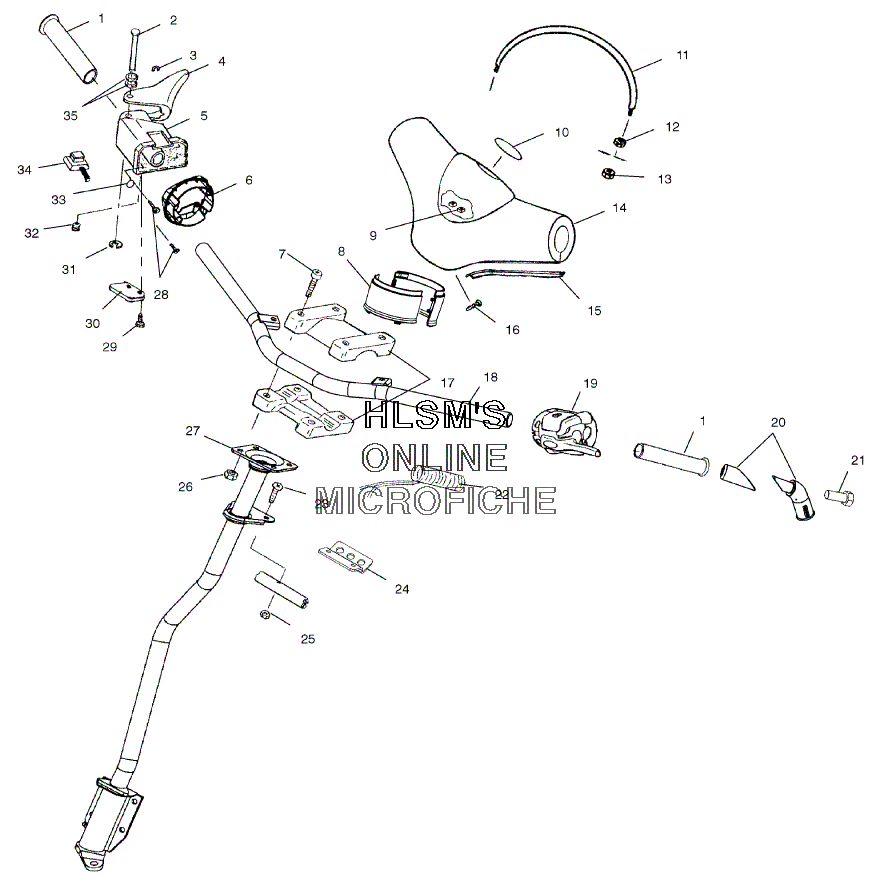

HANDLEBAR ASSEMBLY для Polaris 800 RMK (S00SR8BS) - 2000 года выпуска
-
№АртикулНазвание
-
15411692 GRIP, HANDLEBAR CUTGRIP, HANDLEBAR CUT
-
27661624 PIN-HINGEPIN-HINGE
-
37710503 RETAINING RINGRETAINING RING
-
45432970 THROTLE, LEVER 35.5MMTHROTLE, LEVER 35.5MM
-
42010171 LEVER ASSY., HEATER HI/LO 35.5MMLEVER ASSY., HEATER HI/LO 35.5MM
-
55431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
65433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
77517238 SCREWSCREW
-
85433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
97670106 NUT-PUSH ON, .170-.180-YNUT-PUSH ON, .170-.180-Y
-
105433522 EMBLEM-''STAR'', BEZEL, HANDLE BAREMBLEM-''STAR'', BEZEL, HANDLE BAR
-
115243396-070 BAR-MOUNTAIN (BLACK)BAR-MOUNTAIN (BLACK)
-
127547107 NUT5/16-18, HX, JAMNUT5/16-18, HX, JAM
-
137542344 NUT, NYLOCNUT, NYLOC
-
145433330 COVER-HANDLEBARCOVER-HANDLEBAR
-
155433160 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
155433161 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
164010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
175630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
181820717-067 HANDLEBAR, RMK (BLACK)HANDLEBAR, RMK (BLACK)
-
201253274-070 HOOKS, HANDLEBAR, 45DEG (BLACK) (INCL. WEDGE)HOOKS, HANDLEBAR, 45DEG (BLACK) (INCL. WEDGE)
-
217517622 SCREW SOCKET HEADSCREW SOCKET HEAD
-
222460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
237517377 SCREWSCREW
-
245243625-067 BRACKET, HOOP/TANK (BLACK)BRACKET, HOOP/TANK (BLACK)
-
257542103 NUT, LOCKNUT, LOCK
-
267542122 NUT-LOCKNUT-LOCK
-
271820651-067 STEERING POST, FORMED (BLACK)STEERING POST, FORMED (BLACK)
-
287511848 SCREW-SEMSSCREW-SEMS
-
297511858 SCREWSCREW
-
305432261 HOLDER-WIREHOLDER-WIRE
-
317710401 'E' RING'E' RING
-
327512465 SCREWSCREW
-
337555727 RIVET BURRRIVET BURR
-
344110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
-
357555730 WASHERWASHER
