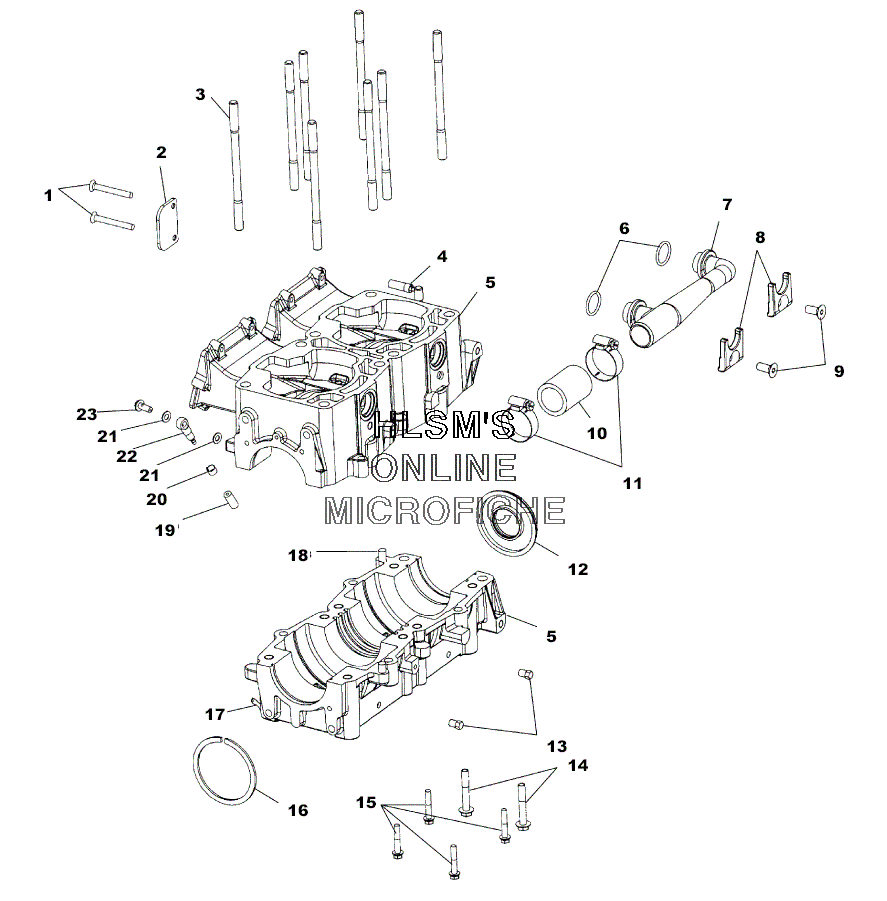

CRANKCASE ASSEMBLY для Polaris 800 RMK (S00SR8BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7516821 SCREW
    SCREW
  • 2
    5131319 PLATE, STOP, TORQUE
    PLATE, STOP, TORQUE
  • 3
    5131677 STUD, CYL.FLANGE, 152MM, SPS
    STUD, CYL.FLANGE, 152MM, SPS
  • 4
    7051020 VALVE, CHECK, 90 DEG.
    VALVE, CHECK, 90 DEG.
  • 5
    2201554 CRANKCASE 80/70 1202353 KIT (INCL. 3, 5, 14, 15, 18)
    CRANKCASE 80/70 1202353 KIT (INCL. 3, 5, 14, 15, 18)
  • 6
    5411125 O-RING
    O-RING
  • 7
    5630610 MANIFOLD, WATER INLET
    MANIFOLD, WATER INLET
  • 8
    5243431 RETAINER-INLET WATER MANIFOLD
    RETAINER-INLET WATER MANIFOLD
  • 9
    7516736 SCREW
    SCREW
  • 10
    8450068-04 HOSE
    HOSE
  • 11
    7080560 CLAMP, S.S.
    CLAMP, S.S.
  • 12
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 13
    7051529 PLUG
    PLUG
  • 14
    7516919 SCREW
    SCREW
  • 15
    7516732 SCREW
    SCREW
  • 16
    7710441 RING, RETAINING
    RING, RETAINING
  • 17
    7052145 FITTING
    FITTING
  • 18
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 19
    8450061-600 FUELLINE, 3MMX7MM
    FUELLINE, 3MMX7MM
  • 20
    7080603 CLAMP
    CLAMP
  • 21
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 22
    7052160 VALVE, CHECK, OIL PUMP
    VALVE, CHECK, OIL PUMP
  • 23
    7517319 SCREW
    SCREW
