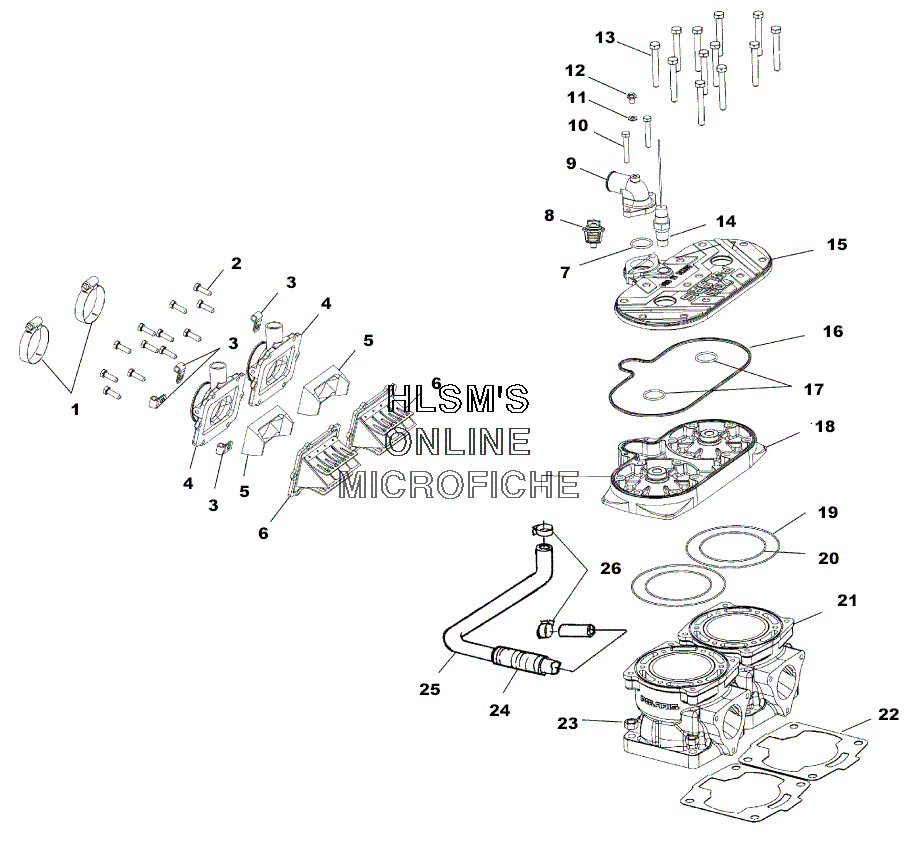

CYLINDER ASSEMBLY для Polaris 800 RMK (S00SR8BS) - 2000 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SSCLAMP, HOSE, SS
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253289 ADAPTER-CARB, TM-RACK, 700 BASEADAPTER-CARB, TM-RACK, 700 BASE
-
55433151 STUFFER-REED BLOCK, NOKSTUFFER-REED BLOCK, NOK
-
61201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052252 THERMOSTAT-50C TBYS SS STEMTHERMOSTAT-50C TBYS SS STEM
-
95630910 COVER-THERMOSTAT M6 BLEED LGCOVER-THERMOSTAT M6 BLEED LG
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517266 SCREWSCREW
-
137517534 SCREWSCREW
-
144010251 SENSOR-THERMISTERSENSOR-THERMISTER
-
165411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
175410917 O-RINGO-RING
-
183021066 HEAD-CYL, 85MM, TWIN, SNOW, 800-SSHEAD-CYL, 85MM, TWIN, SNOW, 800-SS
-
195410931 O-RINGO-RING
-
205411675 O-RING-3.625X3.765X.07, HI-TMPO-RING-3.625X3.765X.07, HI-TMP
-
213021064 CYLINDER-85MM, SNOWCYLINDER-85MM, SNOW
-
225811784 GASKET-CYLINDER BASEGASKET-CYLINDER BASE
-
237547013 NUTNUT
-
245521398-96 CONDUIT, FLEX (.75''ID)CONDUIT, FLEX (.75''ID)
-
255411536 HOSE, BYPASSHOSE, BYPASS
-
267080810 CLAMP-3 TONG .810-.970CLAMP-3 TONG .810-.970
