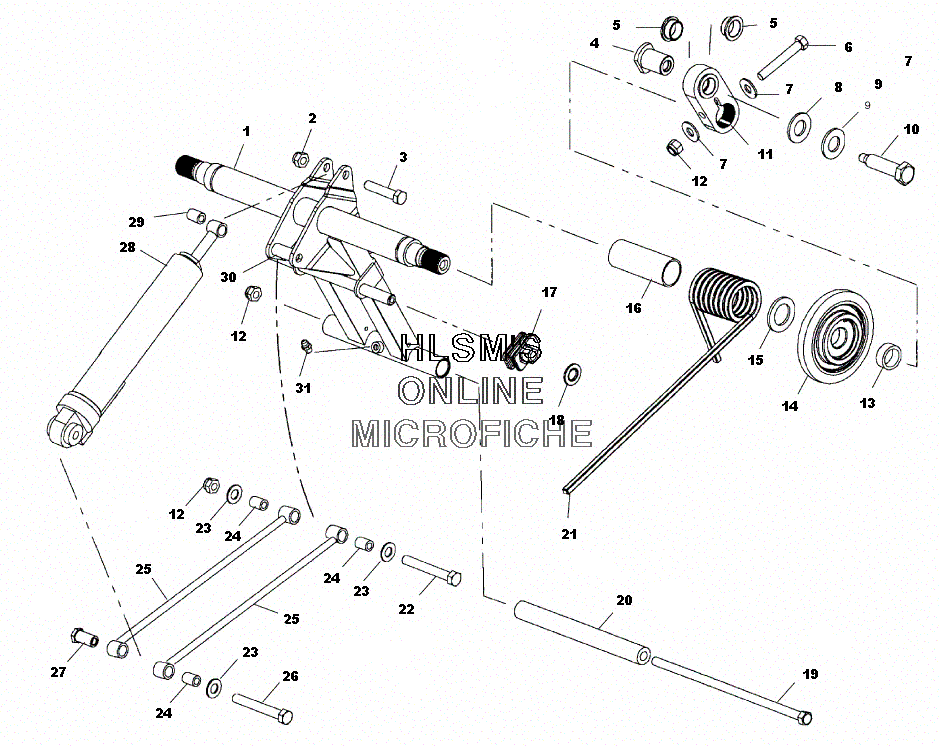

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1541433-067 TORQUE-ARM (BLACK/REAR)
    TORQUE-ARM (BLACK/REAR)
  • 2
    7542411 NUT LOCK
    NUT LOCK
  • 3
    7512410 BOLT
    BOLT
  • 4
    5333758 SHAFT, ARM
    SHAFT, ARM
  • 5
    3514331 BUSHING, ARM
    BUSHING, ARM
  • 6
    7515415 BOLT
    BOLT
  • 7
    7555806 WASHER
    WASHER
  • 8
    7555893 WASHER
    WASHER
  • 9
    7552603 WASHER
    WASHER
  • 10
    7517435 BOLT
    BOLT
  • 11
    1541461 ARM, ASSY., RTA (INCL. 5)
    ARM, ASSY., RTA (INCL. 5)
  • 12
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 13
    5132388 SPACER, WHEEL
    SPACER, WHEEL
  • 14
    1590278 WHEEL ASSY., PLAIN (BLACK)
    WHEEL ASSY., PLAIN (BLACK)
  • 15
    7555787 WASHER, REVERSE
    WASHER, REVERSE
  • 16
    5433007 SLEEVE, TORS. SPRING
    SLEEVE, TORS. SPRING
  • 17
    5432983 ROLLER, SPRING, ADJUST SQUARE
    ROLLER, SPRING, ADJUST SQUARE
  • 18
    7080394 CLIP
    CLIP
  • 19
    7517232 SCREW
    SCREW
  • 20
    5333873 SHAFT
    SHAFT
  • 21
    7041895-067 SPRNG, TRSN. 375SQ/90Ш (LEFT/BLACK) (STD)
    SPRNG, TRSN. 375SQ/90Ш (LEFT/BLACK) (STD)
  • 21
    7041896-067 SPRNG, TRSN. 375SQ/90Ш (RIGHT/BLACK) (STD)
    SPRNG, TRSN. 375SQ/90Ш (RIGHT/BLACK) (STD)
  • 21
    7041631-067 SPRING-TORSION, . 375/77Ш (LEFT/BLACK) (OPT)
    SPRING-TORSION, . 375/77Ш (LEFT/BLACK) (OPT)
  • 21
    7041632-067 SPRING-TORSION, . 375/77Ш (RIGHT/BLACK) (OPT)
    SPRING-TORSION, . 375/77Ш (RIGHT/BLACK) (OPT)
  • 21
    7041655-067 SPRNG-TRSN, . 405 SQ/77Ш (LEFT/BLACK) (OPT)
    SPRNG-TRSN, . 405 SQ/77Ш (LEFT/BLACK) (OPT)
  • 21
    7041656-067 SPRNG-TRSN, . 405 SQ/77Ш (RIGHT/BLACK) (OPT)
    SPRNG-TRSN, . 405 SQ/77Ш (RIGHT/BLACK) (OPT)
  • 21
    7041627-067 SPRING-TORSION, . 347SQ/77Ш (LEFT/BLACK) (OPT)
    SPRING-TORSION, . 347SQ/77Ш (LEFT/BLACK) (OPT)
  • 21
    7041628-067 SPRING-TORSION, . 347/77Ш (RIGHT/BLACK) (OPT)
    SPRING-TORSION, . 347/77Ш (RIGHT/BLACK) (OPT)
  • 22
    7515514 BOLT
    BOLT
  • 23
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 24
    5132391 BUSHING, . 378X. 616X1. 12
    BUSHING, . 378X. 616X1. 12
  • 25
    1541479-067 SHOCK ROD, 12. 850 (BLACK)
    SHOCK ROD, 12. 850 (BLACK)
  • 26
    7515538 BOLT
    BOLT
  • 27
    5132390 BUSHING, NUT. 616X1. 12X. 875
    BUSHING, NUT. 616X1. 12X. 875
  • 28
    7041846 SHOCK, R/T, PPS
    SHOCK, R/T, PPS
  • 29
    5010422 BUSHING
    BUSHING
  • 30
    5333904 SPACER, . 397X. 562X1. 250
    SPACER, . 397X. 562X1. 250
  • 31
    7080424 FITTING, LUBE.
    FITTING, LUBE.
