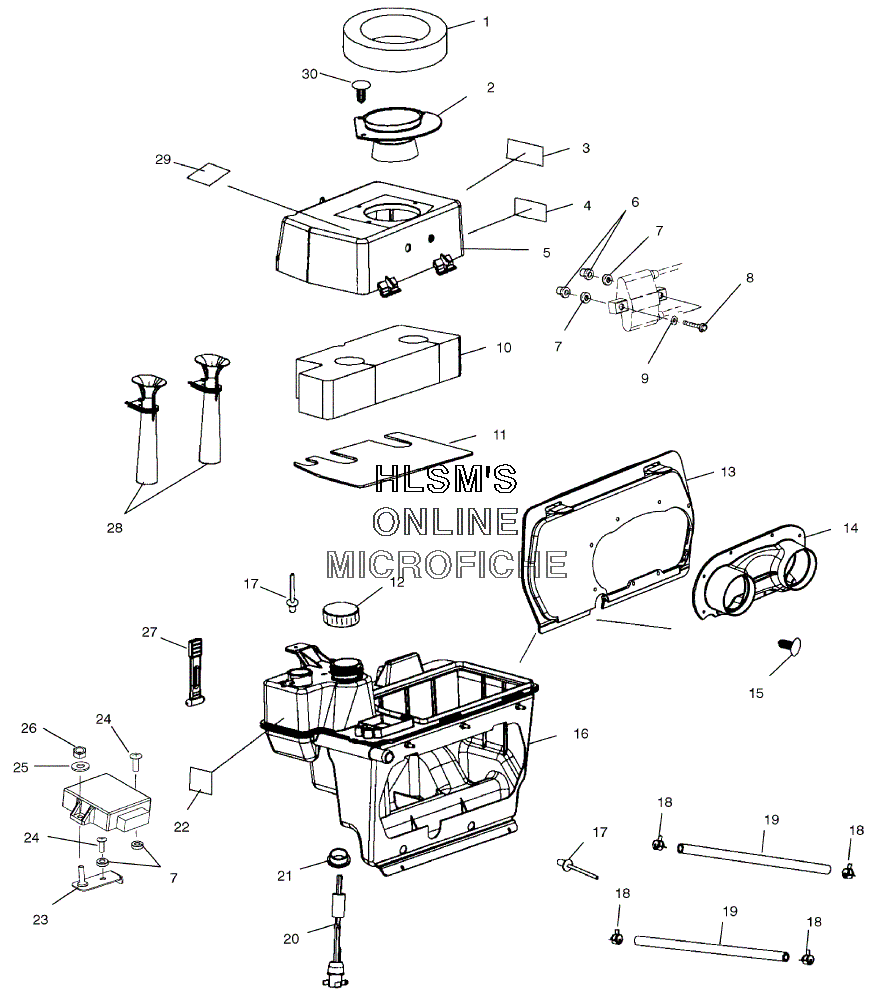

AIR BOX для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIRBOX, CHIMNEY, EDGEFOAM, AIRBOX, CHIMNEY, EDGE
-
25433664 DUCT, AIR, INLETDUCT, AIR, INLET
-
37073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
55433512 COVER, AIRBOXCOVER, AIRBOX
-
67547103 NUTNUT
-
77555932 WASHER, NYLONWASHER, NYLON
-
87517610 SCREWSCREW
-
97552604 WASHERWASHER
-
105811979 FOAM, AIRBOX, PLATEFOAM, AIRBOX, PLATE
-
115433665 PLATE, INTAKE, EDGEPLATE, INTAKE, EDGE
-
122511287 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
-
135433514 PLATE, CARB ADAPTERPLATE, CARB ADAPTER
-
145411770 BOOT, CARB, 63MM, MIKTM EDGEBOOT, CARB, 63MM, MIKTM EDGE
-
157080431 FASTENER, DARTFASTENER, DART
-
161261010 AIR SILENCER ASSY.AIR SILENCER ASSY.
-
177621472 RIVETRIVET
-
187080307 CLAMPCLAMP
-
198450003-1525 FUEL LINE, 1/4 ID (1525 CM. )FUEL LINE, 1/4 ID (1525 CM. )
-
204010224 FITTING-OIL SENDERFITTING-OIL SENDER
-
217052247 GROMMET-OIL SENDERGROMMET-OIL SENDER
-
227078147 DECAL-SURGE TANK ''FULL COLD''DECAL-SURGE TANK ''FULL COLD''
-
231013201 WELD-BRACKET, KOKUSAN, CDI, TPSWELD-BRACKET, KOKUSAN, CDI, TPS
-
247512098 SCREWSCREW
-
257555746 BURR, RIVETBURR, RIVET
-
267541925 NUTNUT
-
275433150 STRAP, RUBBERSTRAP, RUBBER
-
285433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
297075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
307670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
