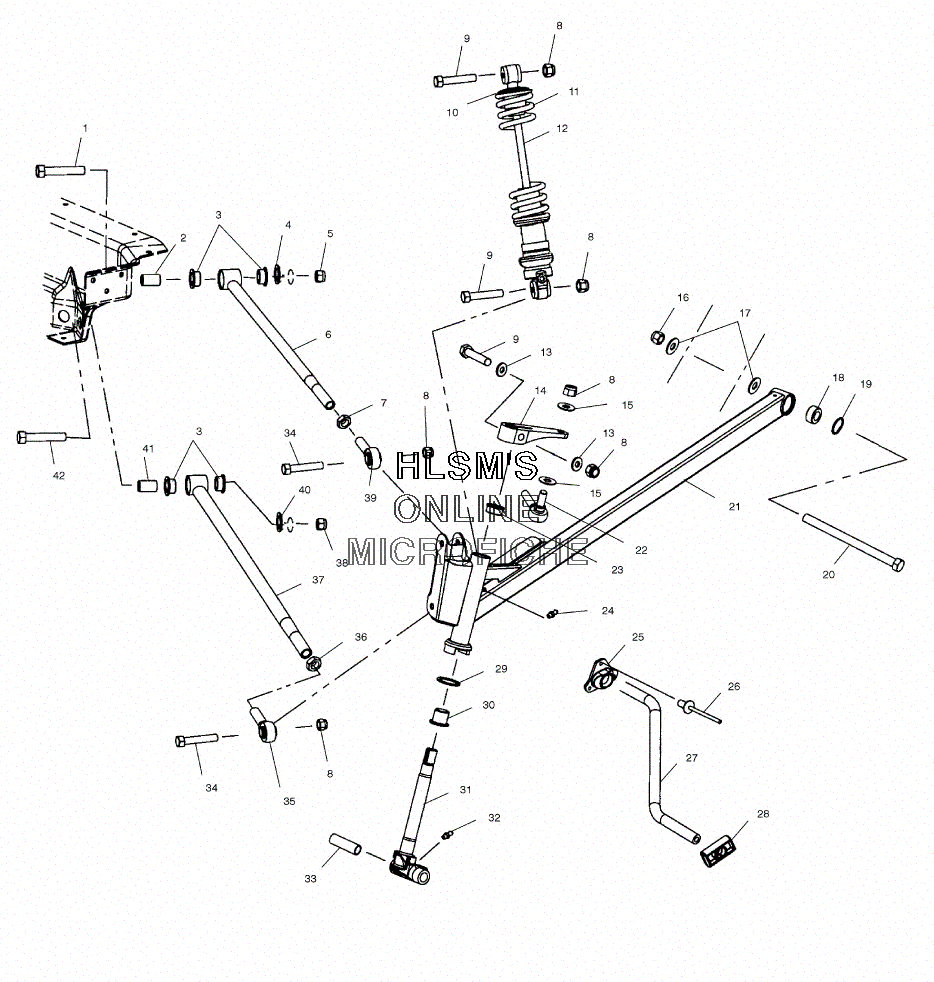

SUSPENSION - FRONT для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512597 BOLT
    BOLT
  • 2
    5132078 BUSHING
    BUSHING
  • 3
    5432918 BUSHING, RADIUS ROD PIVOT (OUTER)
    BUSHING, RADIUS ROD PIVOT (OUTER)
  • 4
    7555852 WASHER, FLAT
    WASHER, FLAT
  • 5
    7542503 NUT, LOCK
    NUT, LOCK
  • 6
    1820679-067 RADIUS ROD (UPPER/BLACK)
    RADIUS ROD (UPPER/BLACK)
  • 7
    7542520 NUT JAM
    NUT JAM
  • 8
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 9
    7515433 BOLT
    BOLT
  • 10
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 11
    7041927-067 SPRING, CMP, 2. 75X13, 68/160 BLACK
    SPRING, CMP, 2. 75X13, 68/160 BLACK
  • 12
    7041926 SHOCK, GAS, IFP, 11. 02X16. 25
    SHOCK, GAS, IFP, 11. 02X16. 25
  • 13
    7555832 WASHER
    WASHER
  • 14
    5132288 ARM-STEERING, MACHINED, EDGE
    ARM-STEERING, MACHINED, EDGE
  • 15
    7555797 WASHER
    WASHER
  • 16
    7547066 NUT-7/16-20, NYLOK, Y
    NUT-7/16-20, NYLOK, Y
  • 17
    7555820 WASHER
    WASHER
  • 18
    7061042 BEARING-SPHERICAL, 7/16, PLASTIC
    BEARING-SPHERICAL, 7/16, PLASTIC
  • 19
    7710437 RING, RETAINING
    RING, RETAINING
  • 20
    7512099 BOLT
    BOLT
  • 21
    1820787-293 TRAILING ARM, SVC (INCL. 18, 19) (LEFT/RED)
    TRAILING ARM, SVC (INCL. 18, 19) (LEFT/RED)
  • 21
    1820788-293 TRAILING ARM ASSY., SVC (INCL. 18, 19) (RIGHT/RED)
    TRAILING ARM ASSY., SVC (INCL. 18, 19) (RIGHT/RED)
  • 22
    7061057 ROD, END-3/8, PL, 75Ш, 1. 00 (RIGHT)
    ROD, END-3/8, PL, 75Ш, 1. 00 (RIGHT)
  • 23
    3573909 BUSHING-FLANGE
    BUSHING-FLANGE
  • 24
    7080433 ZERK, FITTING, THREADED
    ZERK, FITTING, THREADED
  • 25
    5433233 BUSHING-TORSION BAR, 5/8
    BUSHING-TORSION BAR, 5/8
  • 26
    7621477 RIVET,
    RIVET,
  • 27
    5243996-067 BAR, TORSION, 5/8, 42. 5 (BLACK)
    BAR, TORSION, 5/8, 42. 5 (BLACK)
  • 28
    5433235 SLIDE-TORSION BAR 5/8
    SLIDE-TORSION BAR 5/8
  • 29
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 30
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 31
    6230160-067 SHAFT-SPINDLE, HARDENED (BLACK)
    SHAFT-SPINDLE, HARDENED (BLACK)
  • 32
    7080306 FITTING, LUBE. W/BALL CK.
    FITTING, LUBE. W/BALL CK.
  • 33
    5010158 BUSHING, PIVOT,
    BUSHING, PIVOT,
  • 34
    7517583 SCREW
    SCREW
  • 35
    7061060 ROD END, RADIUS, 1/2
    ROD END, RADIUS, 1/2
  • 36
    7542711 NUT-JAM
    NUT-JAM
  • 37
    1820677-067 RADIUS ROD (LOWER/BLACK)
    RADIUS ROD (LOWER/BLACK)
  • 38
    7542703 NUT FLEX
    NUT FLEX
  • 39
    7061061 ROD END, RADIUS 7/16
    ROD END, RADIUS 7/16
  • 40
    7555721 WASHER
    WASHER
  • 41
    5132077 BUSHING-. 505X. 750X1. 215
    BUSHING-. 505X. 750X1. 215
  • 42
    7512684 BOLT
    BOLT
