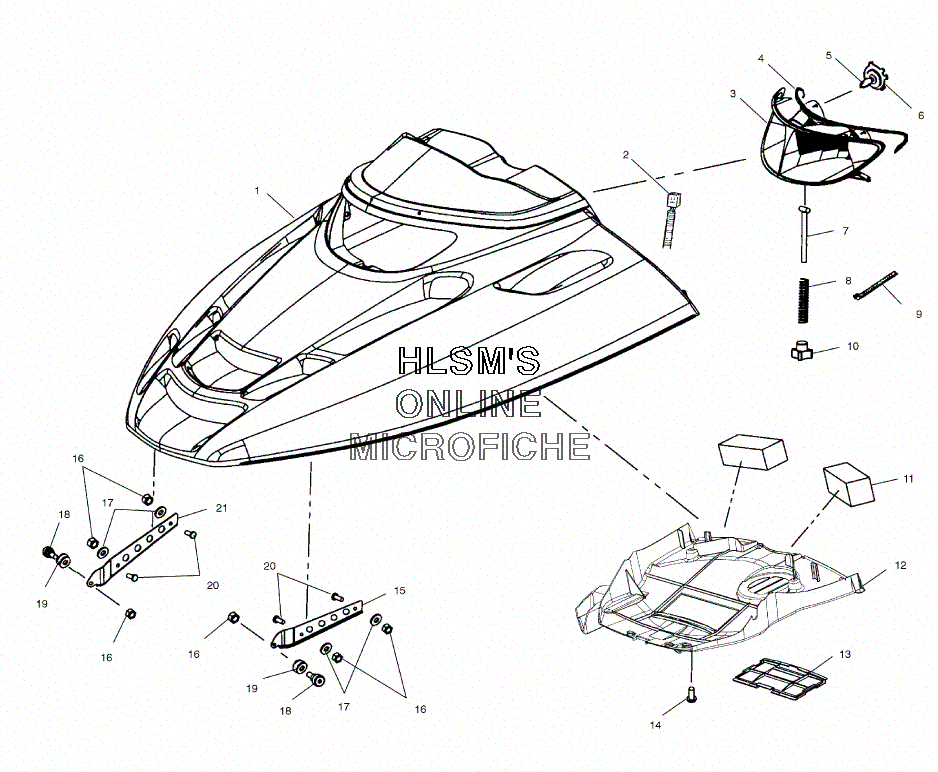

HOOD ASSEMBLY W/HEADLIGHT для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    2632212-293 ASSY. HOOD, EDGE, 2H, SVC (RED) (INCL. FOAM AND FOIL)
    ASSY. HOOD, EDGE, 2H, SVC (RED) (INCL. FOAM AND FOIL)
  • 2
    2460791 HARNESS, HDLGHT, EDGE, COMMON
    HARNESS, HDLGHT, EDGE, COMMON
  • 3
    2410132 HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)
    HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)
  • 4
    5811978 SEAL-HEADLIGHT
    SEAL-HEADLIGHT
  • 5
    2870448 BULB, QUARTZ. INDY HEADLIGHT
    BULB, QUARTZ. INDY HEADLIGHT
  • 6
    4032063 RETAINER, HEADLIGHT BULB
    RETAINER, HEADLIGHT BULB
  • 7
    7517746 BOLT, TEE ADJUSTER, 2. 25
    BOLT, TEE ADJUSTER, 2. 25
  • 8
    7041924 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 9
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST LOCKING B
    KNOB, HEADLIGHT, ADJUST LOCKING B
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    5433516 PLENUM, HOOD INTAKE
    PLENUM, HOOD INTAKE
  • 13
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 14
    7512068 SCREW
    SCREW
  • 15
    5243567-067 HINGE (UPPER/LEFT/BLACK)
    HINGE (UPPER/LEFT/BLACK)
  • 16
    7542122 NUT-LOCK
    NUT-LOCK
  • 17
    7558301 WASHER
    WASHER
  • 18
    7512113 SCREW
    SCREW
  • 19
    5332403 SPACER, HINGE
    SPACER, HINGE
  • 20
    7512240 BOLT
    BOLT
  • 21
    5243568-067 HINGE (UPPER/RIGHT/BLACK)
    HINGE (UPPER/RIGHT/BLACK)
