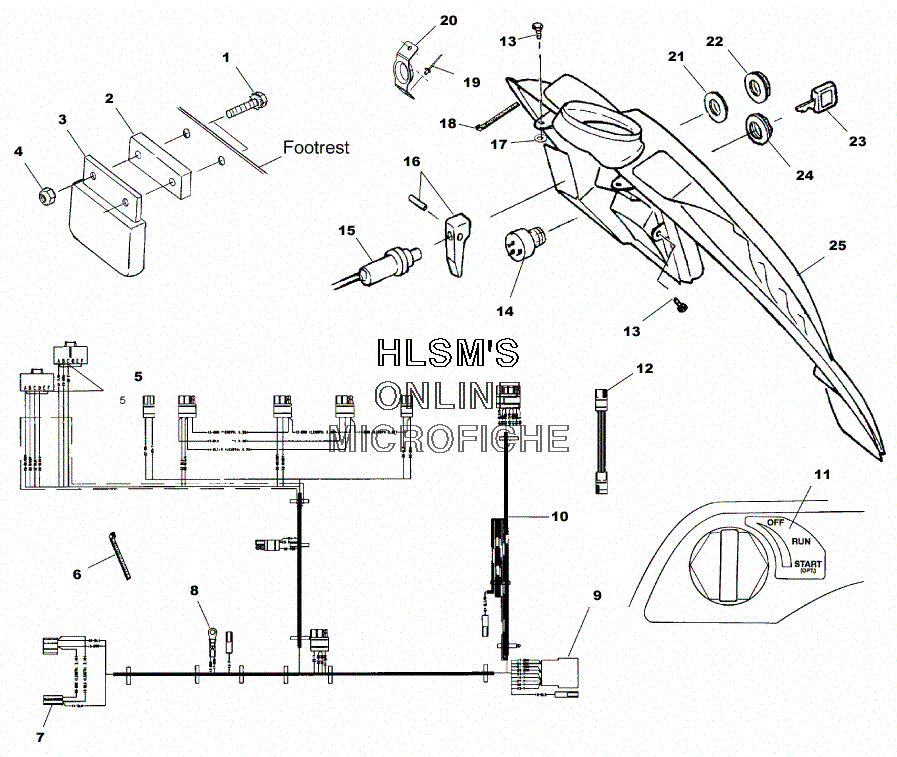

CONSOLE для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска`
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060123 REGULATOR (14.3VAC)REGULATOR (14.3VAC)
-
47541925 NUTNUT
-
54010192 SOCKET, PACKARD #12047767SOCKET, PACKARD #12047767
-
67080138 STRAP PANDUITSTRAP PANDUIT
-
74020063 HOUSINGHOUSING
-
84020092 TERMINAL, RINGTERMINAL, RING
-
94020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
102460725 HARNESS, MAIN TPS, GEN 2, COMMONHARNESS, MAIN TPS, GEN 2, COMMON
-
117078604 DECAL, IGN, OFF/PREM/REGDECAL, IGN, OFF/PREM/REG
-
122460686 JUMPER, SEAT, TAILLIGHTJUMPER, SEAT, TAILLIGHT
-
137515199 SCREWSCREW
-
142201614 IGNITION SWITCH, KIT ES, FUELIGNITION SWITCH, KIT ES, FUEL
-
157080734 CABLE, CHOKE, SINGLE, PULL (INCL. 16, 22)CABLE, CHOKE, SINGLE, PULL (INCL. 16, 22)
-
162201439 CHOKE LEVER, KITCHOKE LEVER, KIT
-
177555932 WASHER, NYLONWASHER, NYLON
-
187080804 CABLE TIE, RELEASABLE (5 1/2'')CABLE TIE, RELEASABLE (5 1/2'')
-
197621330 RIVET, POPRIVET, POP
-
205243049 GUIDE, RECOILGUIDE, RECOIL
-
217571610 WASHER, LOCKWASHER, LOCK
-
227080229 NUTNUT
-
235410611 KEY, IGNITION W/CAP (SEE FOOTNOTE)KEY, IGNITION W/CAP (SEE FOOTNOTE)
-
247547035 NUT, IGNITIONNUT, IGNITION
-
255433693 CONSOLE, HYB, RACER, BASICCONSOLE, HYB, RACER, BASIC
