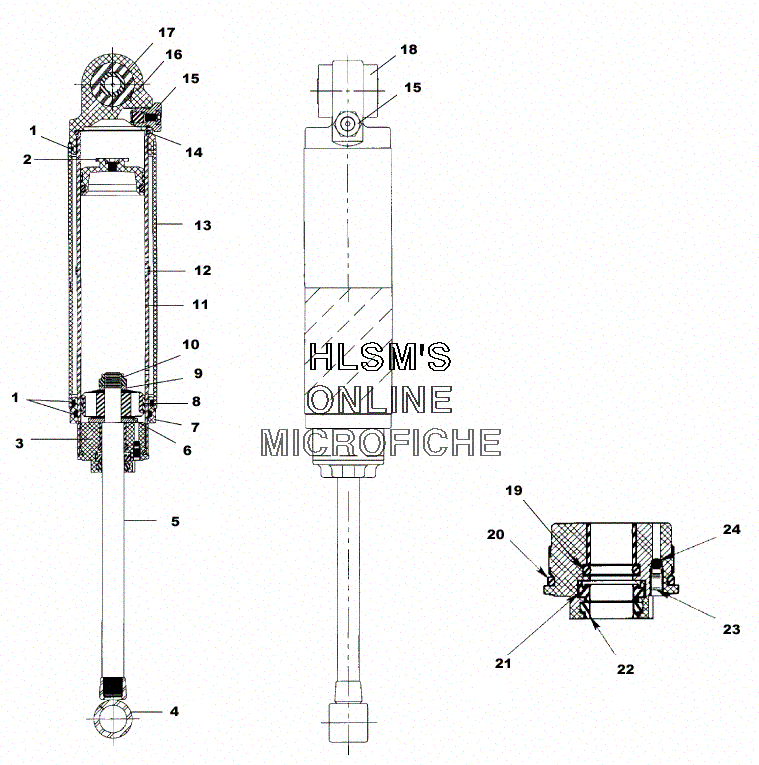

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска
-
№АртикулНазвание
-
11500193 O-RINGO-RING
-
21500018 SCREWSCREW
-
21500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
21500187 PISTON, FLOATINGPISTON, FLOATING
-
31500186 BEARING, ASSEMBLYBEARING, ASSEMBLY
-
41500148 EYELETEYELET
-
51500152 SHAFTSHAFT
-
61500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
71500191 COLLAR, ASSY, POS.SENS.COLLAR, ASSY, POS.SENS.
-
81500002 DAMPER, PISTONRING, FOXDAMPER, PISTONRING, FOX
-
91500015 BUSHING, BACKUPBUSHING, BACKUP
-
101500016 NUT, LOCKNUT, LOCK
-
111500192 SLEEVE, BY, PASSSLEEVE, BY, PASS
-
121500190 BEARING, EXTERNAL BLUE RINGBEARING, EXTERNAL BLUE RING
-
131500188 BODY, POSITION SENS.BODY, POSITION SENS.
-
141500108 O-RING (.103W, 1.549ID)O-RING (.103W, 1.549ID)
-
151500019 SCREWSCREW
-
151500023 O-RING (OUTER)O-RING (OUTER)
-
151500072 VALVE, AIR SSYVALVE, AIR SSY
-
161500189 BODY CAP, POS.SENS.BODY CAP, POS.SENS.
-
175020657 BUSHING (1.40)BUSHING (1.40)
-
185432040 BUSHINGM EYELETBUSHINGM EYELET
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500020 O-RING (.103W, 1.299ID)O-RING (.103W, 1.299ID)
-
211500025 U-CUPU-CUP
-
221500024 WIPER, CLEAR (OUTER)WIPER, CLEAR (OUTER)
-
231500070 SCREWSCREW
-
241500071 BALL (FOX)BALL (FOX)
-
247041728 SHOCK, TRK, POS.SEN, (X-10) (FOX) (REAR)SHOCK, TRK, POS.SEN, (X-10) (FOX) (REAR)
