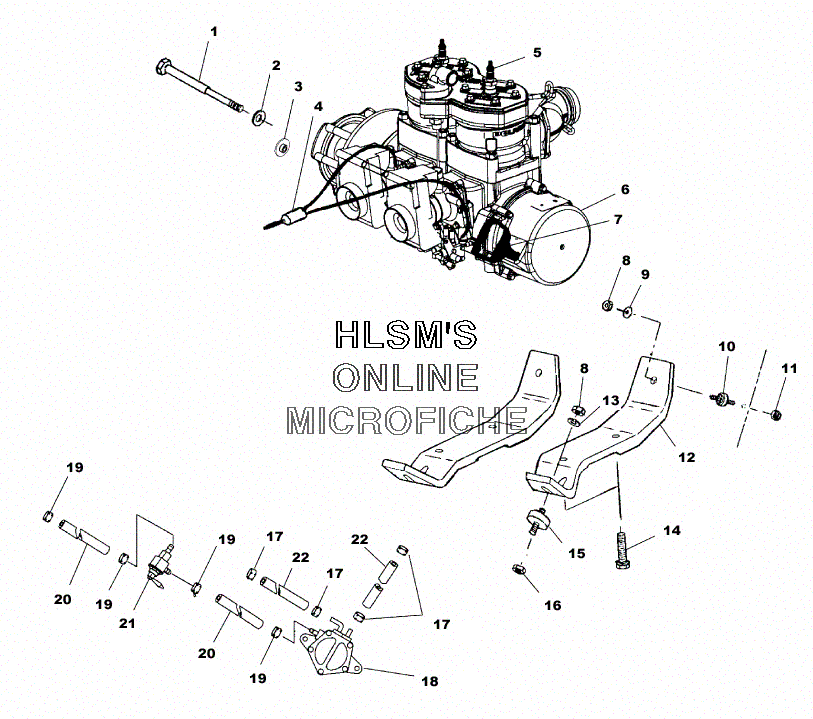

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7517501 SCREW
    SCREW
  • 2
    7556003 WASHER
    WASHER
  • 3
    5131872 WASHER, CLUTCH RET.
    WASHER, CLUTCH RET.
  • 4
    7080733 CABLE, THROTTLE, W/OIL, 38MM.RACK
    CABLE, THROTTLE, W/OIL, 38MM.RACK
  • 5
    3070184 SP. PLUG CHAMPION
    SP. PLUG CHAMPION
  • 6
    2201530 SHORT BLOCK, KIT(SEE FOOTNOTE)
    SHORT BLOCK, KIT(SEE FOOTNOTE)
  • 7
    5431499 HANDLE, RECOIL (BLK)
    HANDLE, RECOIL (BLK)
  • 8
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 9
    7555806 WASHER
    WASHER
  • 10
    3021099 MOUNT, ENGINE, TAB
    MOUNT, ENGINE, TAB
  • 11
    7547022 NUT,
    NUT,
  • 12
    5131876 STRAP, ENGINE MOUNT (LEFT)
    STRAP, ENGINE MOUNT (LEFT)
  • 12
    5131877 STRAP, ENGINE MOUNT (RIGHT)
    STRAP, ENGINE MOUNT (RIGHT)
  • 13
    7555893 WASHER
    WASHER
  • 14
    7517399 SCREW
    SCREW
  • 15
    3110061 MOUNT, ENGINE
    MOUNT, ENGINE
  • 16
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 17
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    2520135 PUMP, FUEL, 1 OUTLET
    PUMP, FUEL, 1 OUTLET
  • 19
    7080307 CLAMP
    CLAMP
  • 20
    8350018 TUBING-ETHER ERETHNE (160CM)
    TUBING-ETHER ERETHNE (160CM)
  • 21
    7052211 VALVE, FUEL SHUTOFF
    VALVE, FUEL SHUTOFF
  • 22
    8350017-600 FUELLINE, ETHER (RED) (5/16'')
    FUELLINE, ETHER (RED) (5/16'')
