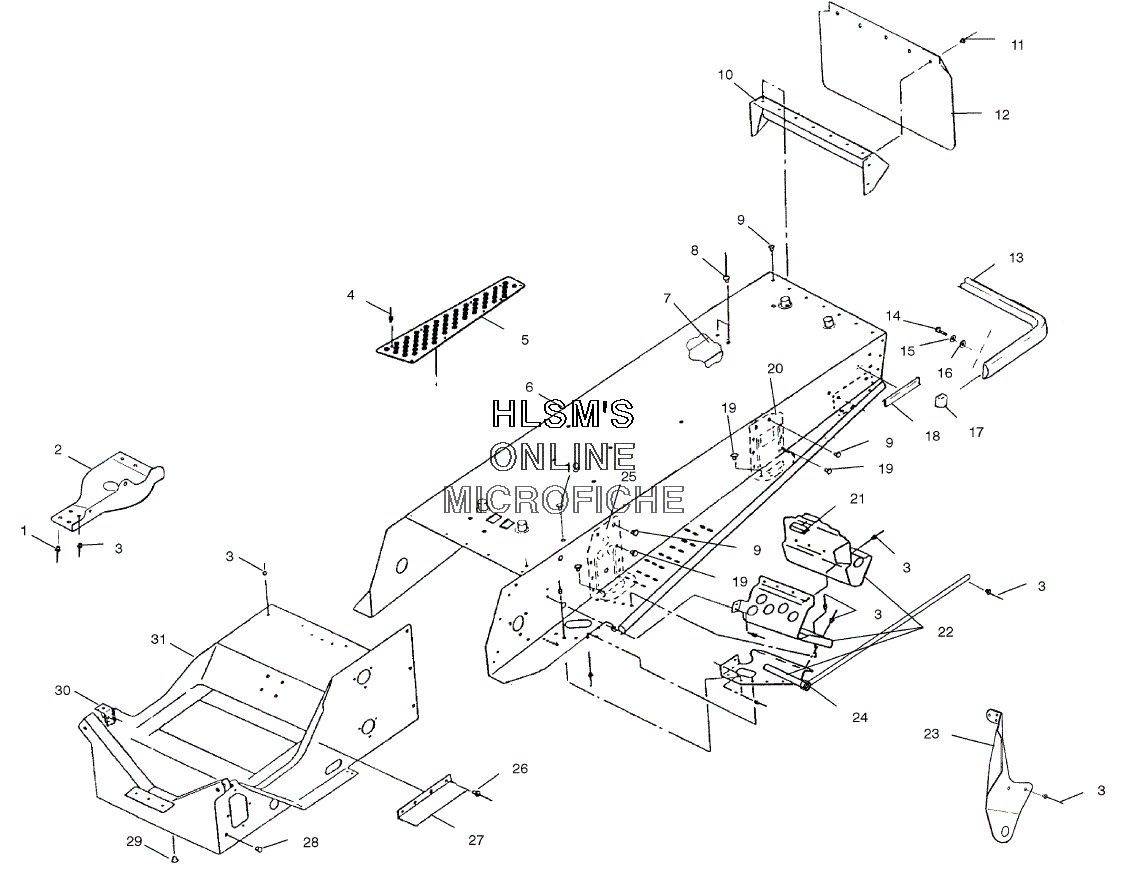

TUNNEL ASSEMBLY для Polaris 500 XC SP (S00SP5CS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7661643 RIVET (-3/16-.214-.420)
    RIVET (-3/16-.214-.420)
  • 2
    5243419 GUARD, CHAINCASE SUMP, TUNNEL
    GUARD, CHAINCASE SUMP, TUNNEL
  • 3
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
  • 4
    7621433 RIVET
    RIVET
  • 5
    5243297-293 GRIPPER, BOOT (LEFT) (INDY RED)
    GRIPPER, BOOT (LEFT) (INDY RED)
  • 5
    5243298-293 GRIPPER, BOOT (RIGHT) (INDY RED)
    GRIPPER, BOOT (RIGHT) (INDY RED)
  • 6
    1012880-067 TUNNEL, LIQ. (X-10) (BLK) (INCL. 10, 20, 25)
    TUNNEL, LIQ. (X-10) (BLK) (INCL. 10, 20, 25)
  • 8
    7621432 RIVET (3/16X.402)
    RIVET (3/16X.402)
  • 9
    7661836 RIVET
    RIVET
  • 10
    5241946-067 PANEL, TUNNELBACK (BLK)
    PANEL, TUNNELBACK (BLK)
  • 11
    7621418 POP RIVET
    POP RIVET
  • 12
    5432149-1105 FLAP, SNOW (13.74'') (RED W/WHITE)
    FLAP, SNOW (13.74'') (RED W/WHITE)
  • 13
    2670169 BUMPER, ASSY (REAR) (BLK)
    BUMPER, ASSY (REAR) (BLK)
  • 14
    7512240 BOLT
    BOLT
  • 15
    7552801 LOCK WASHER
    LOCK WASHER
  • 16
    7558301 WASHER
    WASHER
  • 17
    5431995-070 CAP, BUMPER
    CAP, BUMPER
  • 18
    2670133 REFLECTOR ASSY (RED)
    REFLECTOR ASSY (RED)
  • 19
    7661837 RIVET
    RIVET
  • 20
    5241954-067 BRACKET, SUSPENSION (BLK) (REAR) (LEFT)
    BRACKET, SUSPENSION (BLK) (REAR) (LEFT)
  • 20
    5241955-067 BRACKET, SUSPENSION (BLK) (REAR) (RIGHT)
    BRACKET, SUSPENSION (BLK) (REAR) (RIGHT)
  • 21
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 22
    1012898 FOOTREST (LEFT) (BLK)
    FOOTREST (LEFT) (BLK)
  • 22
    1012899 FOOTREST (RIGHT) (BLK)
    FOOTREST (RIGHT) (BLK)
  • 23
    5242494-067 BRACE, FOOTREST/TR.ARM MOUNT (LEFT)
    BRACE, FOOTREST/TR.ARM MOUNT (LEFT)
  • 23
    5242495-067 BRACE, FOOTREST/TR.ARM MOUNT (RIGHT)
    BRACE, FOOTREST/TR.ARM MOUNT (RIGHT)
  • 24
    1012621-067 SUPPORT, TUNNEL (LEFT) (BLK)
    SUPPORT, TUNNEL (LEFT) (BLK)
  • 24
    1012622-067 SUPPORT, TUNNEL (RIGHT) (BLK)
    SUPPORT, TUNNEL (RIGHT) (BLK)
  • 25
    5242612-067 BRACKET, SUSPENSION MOUNTING (LEFT) (FRONT) (BLK)
    BRACKET, SUSPENSION MOUNTING (LEFT) (FRONT) (BLK)
  • 25
    5242613-067 BRACKET, SUSPENSION MOUNTING (RIGHT) (FRONT) (BLK)
    BRACKET, SUSPENSION MOUNTING (RIGHT) (FRONT) (BLK)
  • 26
    7621452 RIVET
    RIVET
  • 27
    5222857 GUARD, ADAPTER GUIDE
    GUARD, ADAPTER GUIDE
  • 28
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 29
    7080398 PLUG, HOLE
    PLUG, HOLE
  • 31
    1013102-067 BULKHEAD, GEN 2 (BLK)
    BULKHEAD, GEN 2 (BLK)
