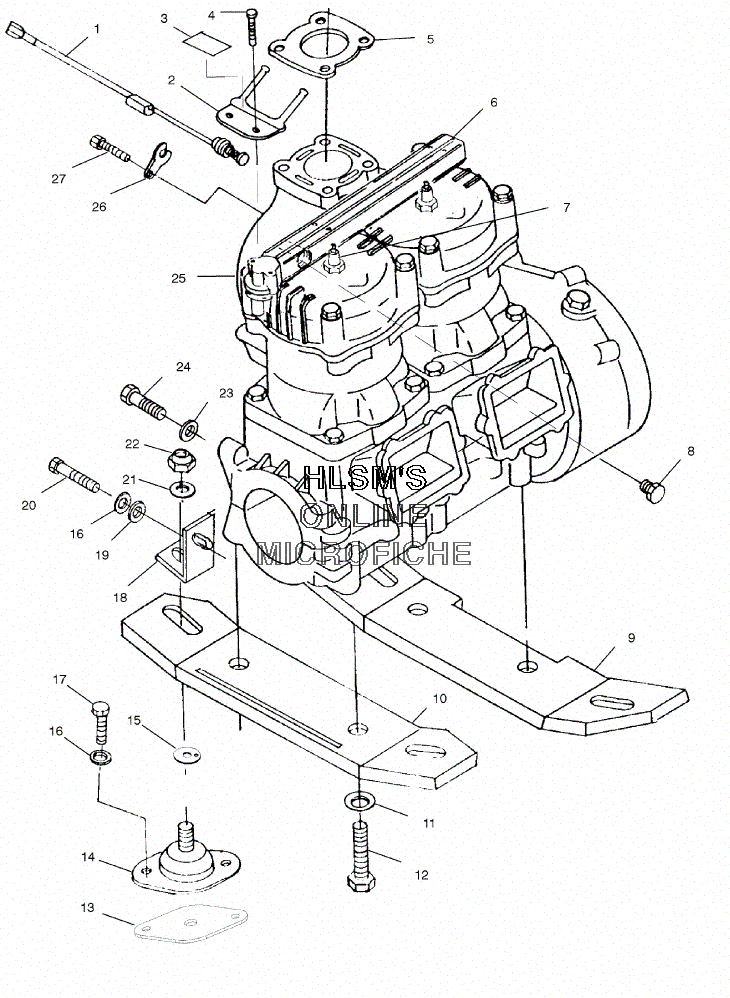

ENGINE MOUNTING W/ SHORT BLOCK для Polaris Virage 3-Pass Euro - 2000 года выпуска`
-
№АртикулНазвание
-
12410187 SWITCH, TEMP W/CONNECTORSWITCH, TEMP W/CONNECTOR
-
25242488 GROUND, SPARKPLUG 2 CYLINDERGROUND, SPARKPLUG 2 CYLINDER
-
37077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
47515149 SCREW, SHOULDERSCREW, SHOULDER
-
55830051 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
67075383 DECAL, WARNINGDECAL, WARNING
-
73070174 SPARK PLUG (BPR 8ES)SPARK PLUG (BPR 8ES)
-
87051527 PLUG, PIPEPLUG, PIPE
-
95630585 PLATE KIT, W/WASHER (FRONT)PLATE KIT, W/WASHER (FRONT)
-
105630584 PLATE KIT, W/WASHER (REAR)PLATE KIT, W/WASHER (REAR)
-
117552609 WASHER, LOCKWASHER, LOCK
-
127517330 SCREWSCREW
-
135244508 PLATE, REPAIR GEN. MOUNT (FRONT)PLATE, REPAIR GEN. MOUNT (FRONT)
-
143021103 MOUNT, ENGINE LORD BENTMOUNT, ENGINE LORD BENT
-
155211727 SHIM, ENGINE MOUNTSHIM, ENGINE MOUNT
-
167552610 WASHER, LOCKWASHER, LOCK
-
177517627 SCREWSCREW
-
181060142 BRACKET, MUFFLER (REAR)BRACKET, MUFFLER (REAR)
-
197555835 WASHER, FLATWASHER, FLAT
-
207515357 BOLTBOLT
-
217555848 WASHER, FLATWASHER, FLAT
-
227542725 NUT, NYLOKNUT, NYLOK
-
237556055 WASHER, LOCKWASHER, LOCK
-
247517497 BOLTBOLT
-
252201620 ENGINE, SHORT BLOCK (FOOTNOTE)ENGINE, SHORT BLOCK (FOOTNOTE)
-
265240876 CLIP, RETAINER TEMP. SWITCHCLIP, RETAINER TEMP. SWITCH
-
277516603 BOLTBOLT
Все узлы модели:
- AIR INLET - ENGINE AND HULL
- BATTERY BOX
- BILGE PUMP
- CARBURETOR
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- CYLINDER W/ INTAKE
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ENGINE FOGGING SYSTEM
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL / WATER SEPARATOR
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- OIL PUMP
- OIL TANK
- PROPULSION
- REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- TOOL KIT
