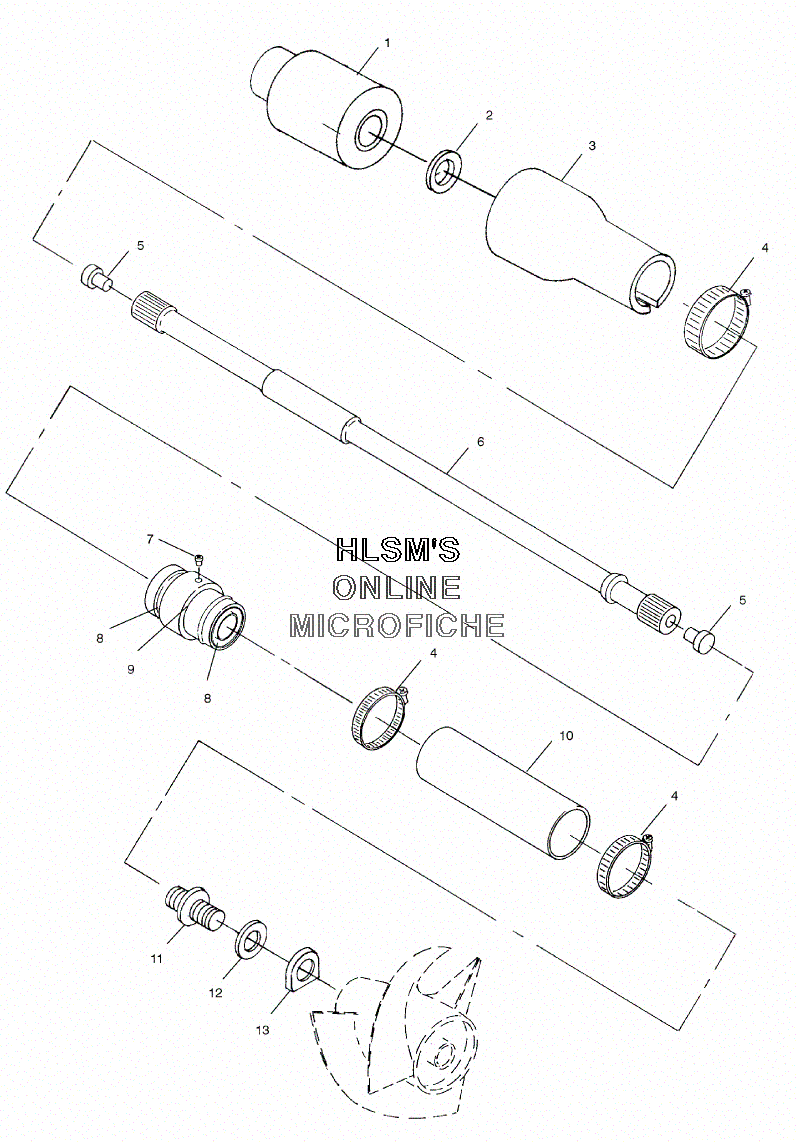

DRIVE SHAFT W/ COUPLER для Polaris Virage 3-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
11060119 COUPLER ASSY., DRIVECOUPLER ASSY., DRIVE
-
25410735 O-RINGO-RING
-
35432129 SHROUD, COUPLERSHROUD, COUPLER
-
47080481 CLAMP, HOSECLAMP, HOSE
-
55410663 BUMPER, DRIVE SHAFTBUMPER, DRIVE SHAFT
-
66230103 SHAFT, DRIVE (24.375'')SHAFT, DRIVE (24.375'')
-
77080629 FITTING, LUBEFITTING, LUBE
-
83610040 SEALSEAL
-
91341145 HOUSING ASSY., BEARING (INCL. 7, 8)HOUSING ASSY., BEARING (INCL. 7, 8)
-
105411027 HOSE, BEARING HOUSINGHOSE, BEARING HOUSING
-
115432298 HOUSING, SHAFT THRU HULL O-RINGHOUSING, SHAFT THRU HULL O-RING
-
125411174 O-RINGO-RING
-
135431985 NUT, SHAFT HOUSINGNUT, SHAFT HOUSING
