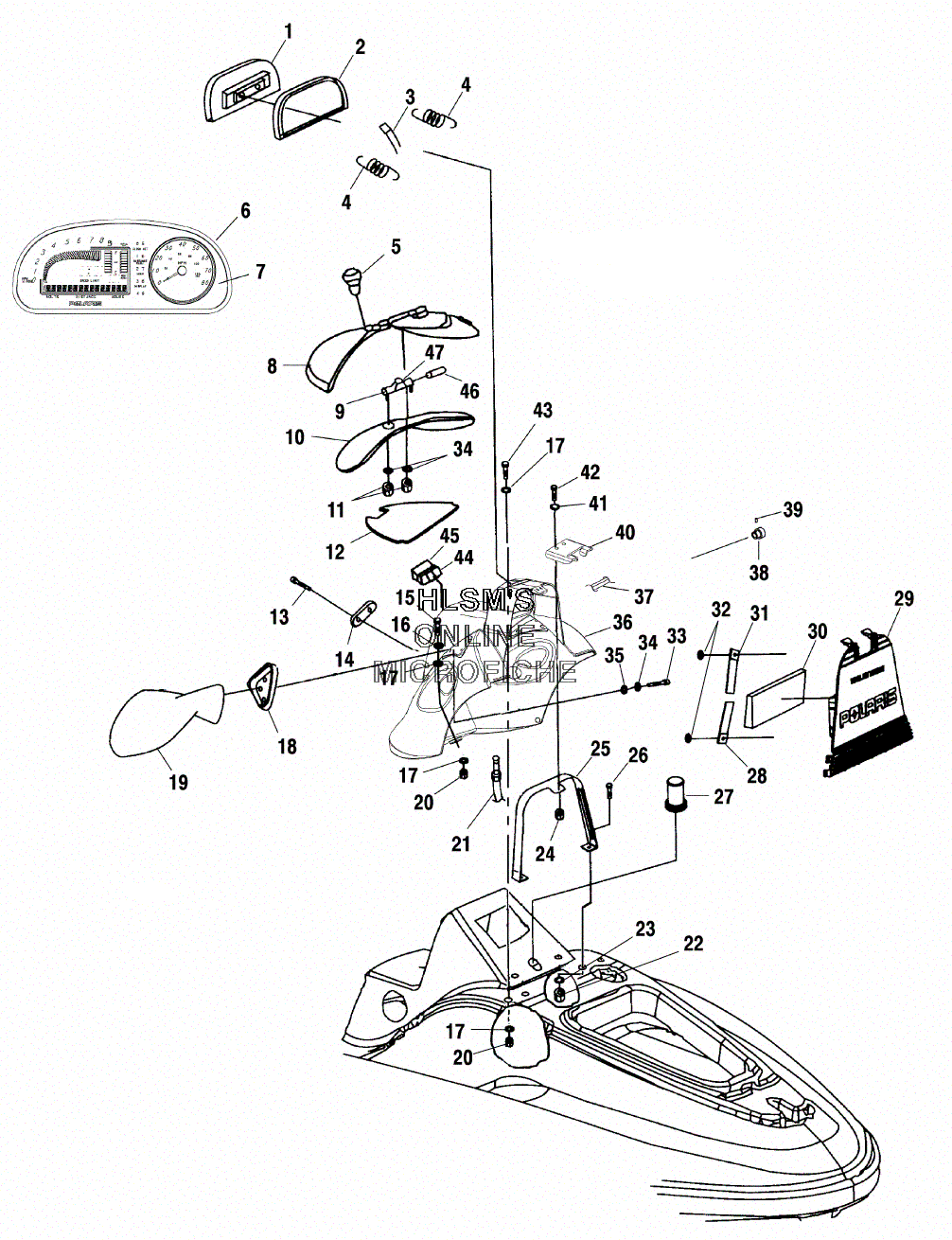

SHROUD W/ INSTRUMENTS AND MIRRORS для Polaris Virage 3-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
13280339 MFI GAUGE, ANALOG/DIGITAL BASICMFI GAUGE, ANALOG/DIGITAL BASIC
-
25411738 GASKETGASKET
-
38450070-190 PITOT LINE, FORMED (90 DEG) (345 CM)PITOT LINE, FORMED (90 DEG) (345 CM)
-
47041931 SPRING, MOUNTINGSPRING, MOUNTING
-
52632234 LATCH ASSY., CONSOLE (1/4 TURN)LATCH ASSY., CONSOLE (1/4 TURN)
-
62201593 MFI, BUTTON REPLACEMENT KITMFI, BUTTON REPLACEMENT KIT
-
73280342 BEZEL MFI, OVERLAYBEZEL MFI, OVERLAY
-
85433709-311 LID, CONS, CATALINA (BLUE METAL)LID, CONS, CATALINA (BLUE METAL)
-
97041754 SPRING TORSION CONSOLESPRING TORSION CONSOLE
-
105521478 SEAL, LID CONSOLESEAL, LID CONSOLE
-
117546705 NUT (6 MM)NUT (6 MM)
-
125811783 PAD, CONSOLEPAD, CONSOLE
-
137516609 SCREWSCREW
-
145211865 PLATE, HOOK CONSOLEPLATE, HOOK CONSOLE
-
157517668 SCREWSCREW
-
167556055 WASHER, LOCKWASHER, LOCK
-
177555874 WASHER, FLATWASHER, FLAT
-
185411557 GASKET MIRROR (LEFT)GASKET MIRROR (LEFT)
-
185411558 GASKET MIRROR (RIGHT)GASKET MIRROR (RIGHT)
-
192631973-070 MIRROR ASSY. (RIGHT/BLACK) (INCL. 18)MIRROR ASSY. (RIGHT/BLACK) (INCL. 18)
-
192631972-070 MIRROR ASSY. (LEFT/BLACK) (INCL. 18)MIRROR ASSY. (LEFT/BLACK) (INCL. 18)
-
207546804 NUT, HEX NYLOKNUT, HEX NYLOK
-
217080926 CABLE, CHOKE SINGLE CARBURETOR THICK NECKCABLE, CHOKE SINGLE CARBURETOR THICK NECK
-
227546704 NUT, NYLOKNUT, NYLOK
-
237555839 WASHER, FLATWASHER, FLAT
-
247541931 NUT, HEXNUT, HEX
-
255244673 BRACKET, SUPPORT SHROUDBRACKET, SUPPORT SHROUD
-
267516717 BOLTBOLT
-
275411664 GROMMET DECK, WIRE HARNESSGROMMET DECK, WIRE HARNESS
-
282690151 STRAP TOOL KIT (LOWER)STRAP TOOL KIT (LOWER)
-
295433210-070 COVER WIRE, SHROUD (BLACK)COVER WIRE, SHROUD (BLACK)
-
312690150 STRAP TOOL KIT (UPPER)STRAP TOOL KIT (UPPER)
-
327710517 RING, RETAINING (.25 STUD)RING, RETAINING (.25 STUD)
-
337516805 SCREWSCREW
-
347552613 WASHER, LOCKWASHER, LOCK
-
357556094 WASHERWASHER
-
365433589-311 SHROUD KIT, W/LIDSHROUD KIT, W/LID
-
375812076 BUMPER, DOOR/SHROUDBUMPER, DOOR/SHROUD
-
382080004 KNOB, CHOKEKNOB, CHOKE
-
392080005 SCREWSCREW
-
405244670 PLATE, LATCH RECEIVERPLATE, LATCH RECEIVER
-
417555837 WASHER, FLATWASHER, FLAT
-
427517818 SCREWSCREW
-
437512045 BOLTBOLT
-
445811552 GASKET, HOOK CONSOLEGASKET, HOOK CONSOLE
-
455433266 HOOK, CONSOLE LATCH (1/4 TURN)HOOK, CONSOLE LATCH (1/4 TURN)
-
465333698 PIN HINGEPIN HINGE
-
475433384 HINGE (3/16 PIN)HINGE (3/16 PIN)
