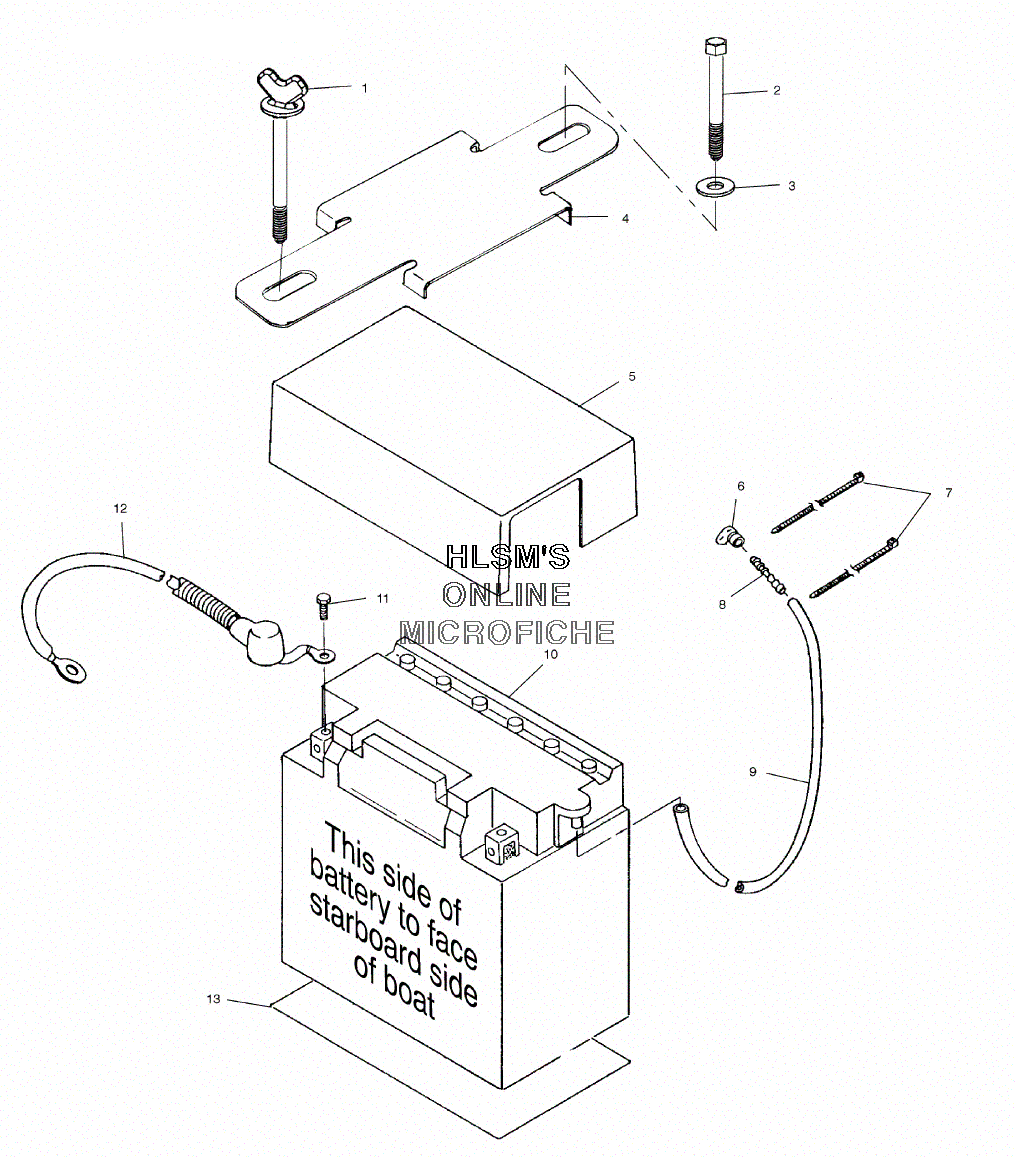

BATTERY BOX для Polaris Virage 3-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
17515192 STUDSTUD
-
27517824 SCREWSCREW
-
37555839 WASHER, FLATWASHER, FLAT
-
45211676 BRACKET, BATTERY HOLDDOWNBRACKET, BATTERY HOLDDOWN
-
55432413 COVER, BATTERY UNIVERSALCOVER, BATTERY UNIVERSAL
-
65410682 GROMMET, VENTGROMMET, VENT
-
77080483 CABLE, TIE (4 IN.)CABLE, TIE (4 IN.)
-
87052078 CONNECTORCONNECTOR
-
95432121 TUBE, VENT (OPT)TUBE, VENT (OPT)
-
104140009 BATTERY (19 AMP)BATTERY (19 AMP)
-
112200619 BOLT, BATTERY KITBOLT, BATTERY KIT
-
124010118 CABLE, GROUND BATTERY/ENGINECABLE, GROUND BATTERY/ENGINE
-
135850136 PAD, BATTERYPAD, BATTERY
