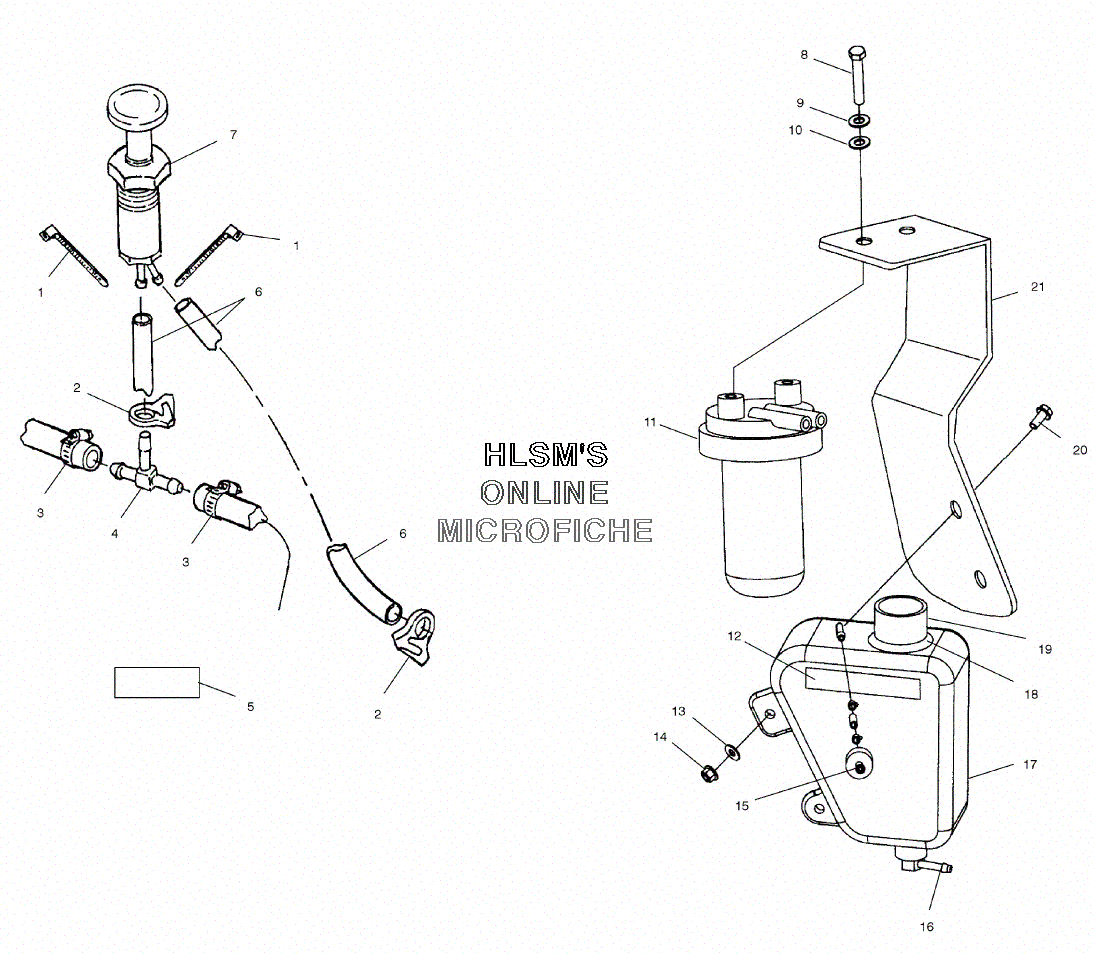

ENGINE FOGGING SYSTEM для Polaris Virage 3-Pass Euro - 2000 года выпуска`
-
№АртикулНазвание
-
17080138 CABLE TIECABLE TIE
-
27080484 CLAMP, HOSECLAMP, HOSE
-
37080476 CLAMP, HOSECLAMP, HOSE
-
47052139 FITTING, TFITTING, T
-
57075738 DECAL, PRIMER ENGINE FOGGERDECAL, PRIMER ENGINE FOGGER
-
68450062 OIL LINE (132 CM) (OPT)OIL LINE (132 CM) (OPT)
-
73160114 PRIMER, ENGINE FOGPRIMER, ENGINE FOG
-
87517798 SCREWSCREW
-
97552613 WASHER, LOCKWASHER, LOCK
-
107555870 WASHER, DISHWASHER, DISH
-
113240220 SEPARATOR, FUEL/WATERSEPARATOR, FUEL/WATER
-
127075732 DECAL, ''FOG OIL ONLY''DECAL, ''FOG OIL ONLY''
-
137555837 WASHER, FLATWASHER, FLAT
-
147541931 NUT, HEXNUT, HEX
-
157052047 CHECKVALVE, VENTCHECKVALVE, VENT
-
167052138 FITTING, 90 DEG.FITTING, 90 DEG.
-
175432362 TANK, OIL FOG KITTANK, OIL FOG KIT
-
185810279 GASKETGASKET
-
195432359 CAP, OIL BOTTLECAP, OIL BOTTLE
-
207512045 BOLTBOLT
-
215244295 BRACKET, BOTTLE FOGBRACKET, BOTTLE FOG
-
212872635 FOGGINGFOGGING
