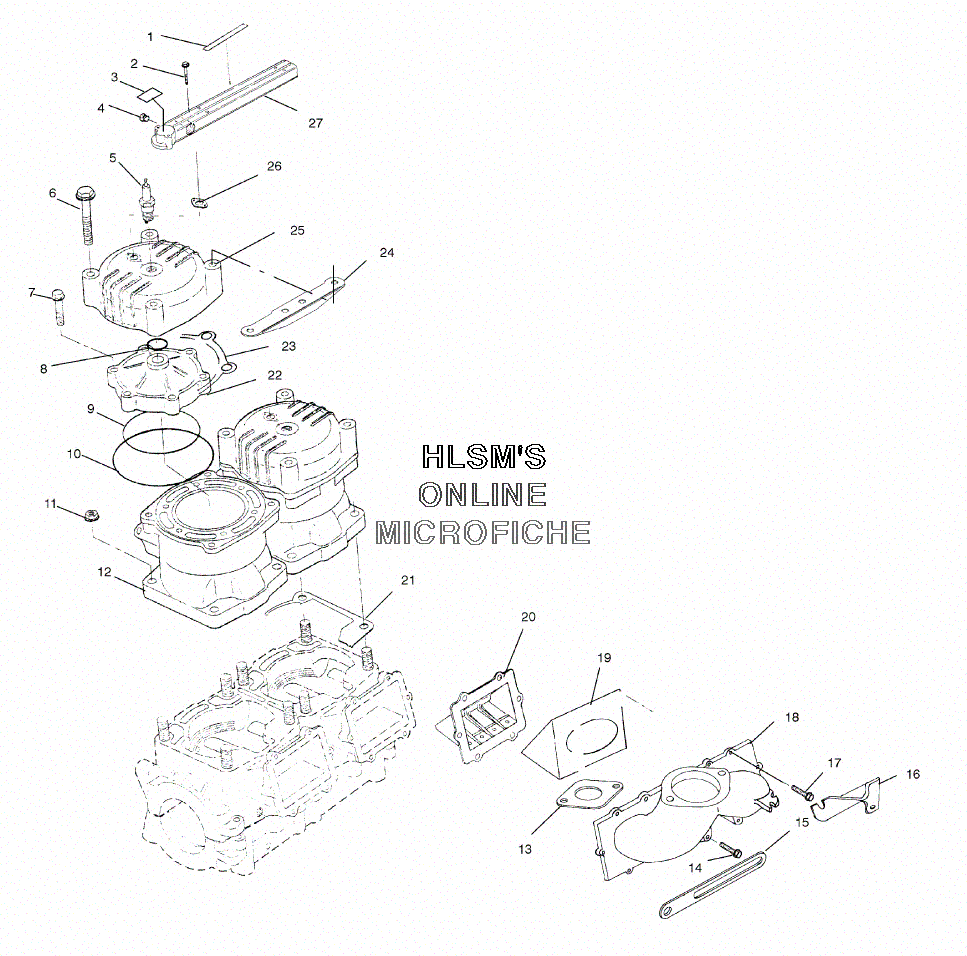

CYLINDER W/ INTAKE для Polaris Virage 3-Pass Euro - 2000 года выпуска`
-
№АртикулНазвание
-
17075383 DECAL, WARNINGDECAL, WARNING
-
27516806 BOLTBOLT
-
37077026 DECAL, SPARK PLUGDECAL, SPARK PLUG
-
47051527 PLUG, PIPEPLUG, PIPE
-
53070174 SPARKPLUG (BPR 8ES)SPARKPLUG (BPR 8ES)
-
67516722 BOLTBOLT
-
77517352 SCREWSCREW
-
85410917 O-RINGO-RING
-
95410932 O-RINGO-RING
-
105410931 O-RINGO-RING
-
117547021 NUTNUT
-
123021019 CYLINDER (81MM)CYLINDER (81MM)
-
135830043 GASKET, CARBURETORGASKET, CARBURETOR
-
147517306 SCREWSCREW
-
157080654 RETAINERRETAINER
-
165241134 BRACKET, OIL PUMP CABLEBRACKET, OIL PUMP CABLE
-
177516807 BOLTBOLT
-
185630656 MANIFOLD INTAKE, CYLINDER (BLACK)MANIFOLD INTAKE, CYLINDER (BLACK)
-
195432104 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
201201689 VALVE, REED ASSY.VALVE, REED ASSY.
-
215830123 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
223021117 HEAD, CYLINDER SING CARBURETOR (81MM)HEAD, CYLINDER SING CARBURETOR (81MM)
-
235241944 RING, HEAD (81MM)RING, HEAD (81MM)
-
245241768-093 BRACKET, HEAD (FIRE RED)BRACKET, HEAD (FIRE RED)
-
255630527-093 COVER, HEAD (RED)COVER, HEAD (RED)
-
265830061 GASKET, WATER MANIFOLDGASKET, WATER MANIFOLD
-
275630826-093 MANIFOLD, WATER (FIRE RED)MANIFOLD, WATER (FIRE RED)
