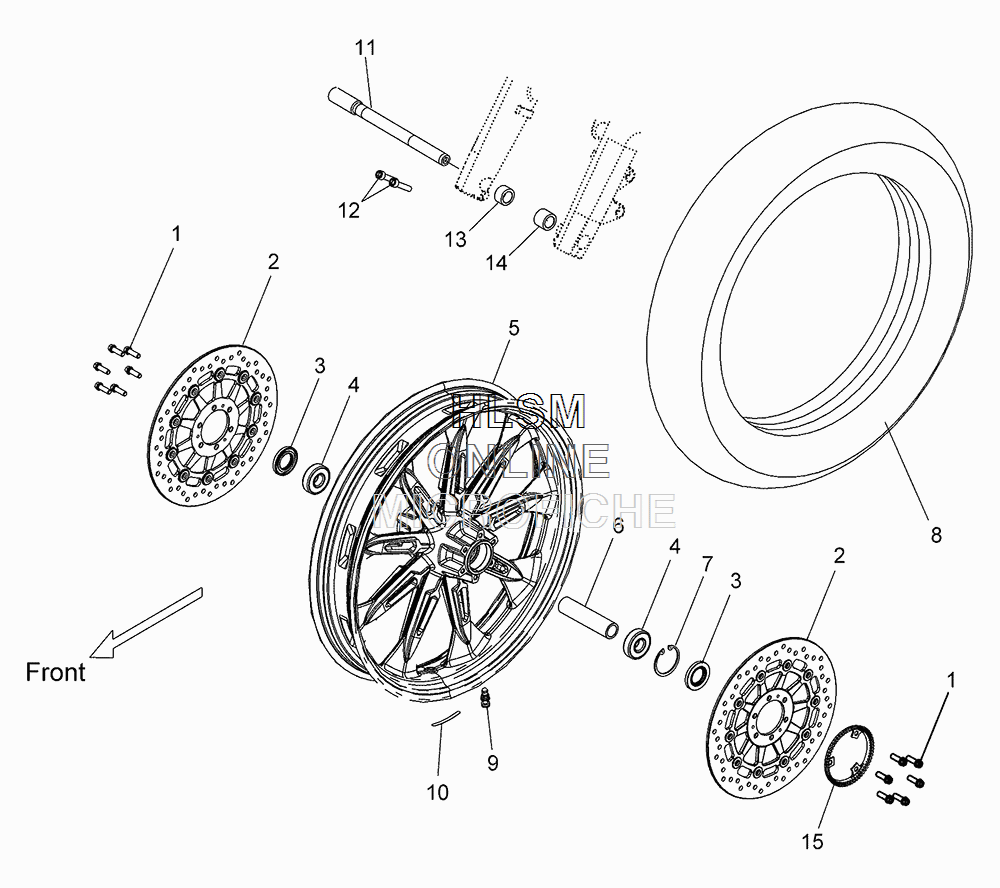

WHEELS- FRONT для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7518661 SCREW, ROTOR BOLT
    SCREW, ROTOR BOLT
  • 2
    1911624-266 ROTOR, BRAKE, BLACK
    ROTOR, BRAKE, BLACK
  • 3
    3610094 SEAL
    SEAL
  • 4
    3514405 BEARING, BALL
    BEARING, BALL
  • 5
    1522247-266 ASM., WHEEL, FRONT, CAST, TR BLACK (INCL. 3-7,9)
    ASM., WHEEL, FRONT, CAST, TR BLACK (INCL. 3-7,9)
  • 6
    5335681 SPACER, BEARING, FRONT WHEEL, MID
    SPACER, BEARING, FRONT WHEEL, MID
  • 7
    7710526 RING, RETAINING
    RING, RETAINING
  • 8
    5414996 TIRE, FRONT, 120/70 R21, E3
    TIRE, FRONT, 120/70 R21, E3
  • 9
    1521312 VALVE, RIM
    VALVE, RIM
  • 10
    1521682 WEIGHT, BALANCE, BLACK
    WEIGHT, BALANCE, BLACK
  • 11
    5138509 AXLE, FRONT
    AXLE, FRONT
  • 12
    7519105 BOLT, PINCH
    BOLT, PINCH
  • 13
    5631479 SPACER, BEARING REAR
    SPACER, BEARING REAR
  • 14
    5631481 SPACER, BEARING FRONT
    SPACER, BEARING FRONT
  • 15
    5632541 RING, TONE, ABS
    RING, TONE, ABS
