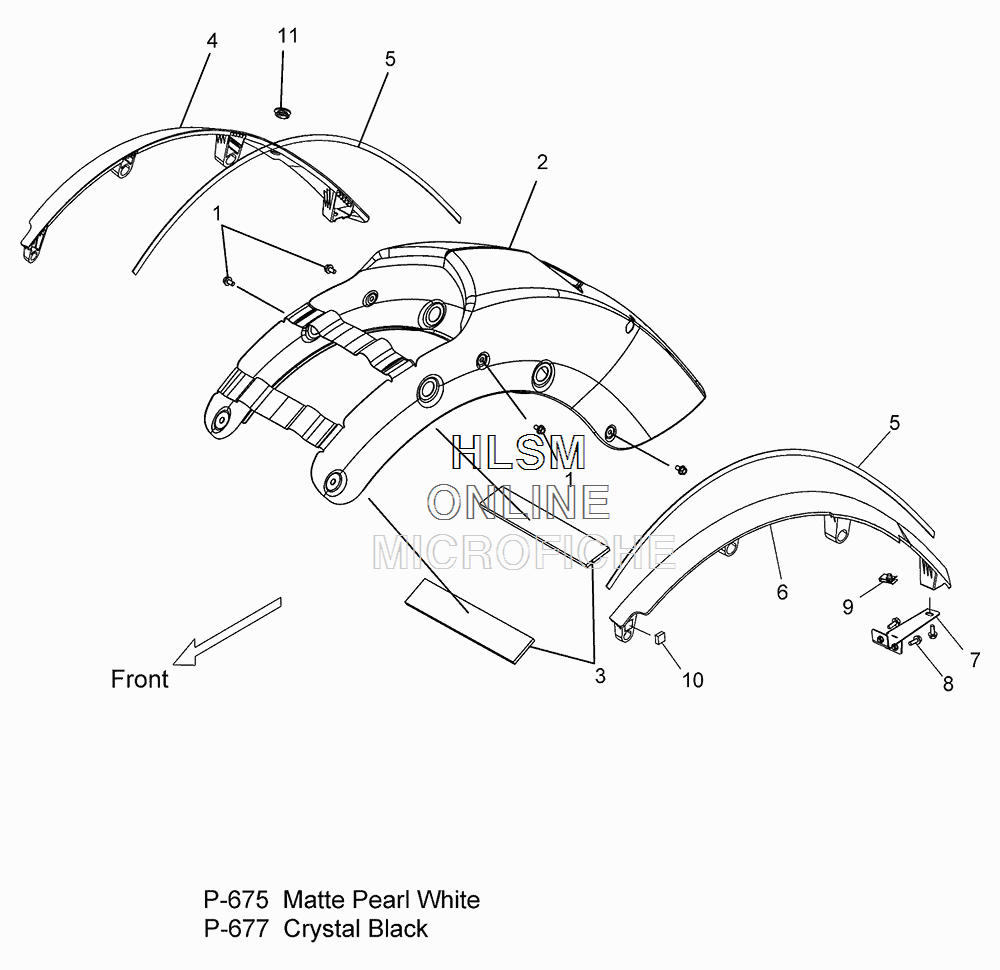

FENDER- REAR для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7517704 SCREW
    SCREW
  • 2
    1016644-675 FENDER, REAR (PEARL WHITE)
    FENDER, REAR (PEARL WHITE)
  • 2
    1016644-677 FENDER, REAR (CRYSTAL BLACK)
    FENDER, REAR (CRYSTAL BLACK)
  • 3
    5413922 BUMPER, FENDER, REAR
    BUMPER, FENDER, REAR
  • 4
    5451016-675 CLOSEOUT, FENDER, REAR, RH (PEARL WHITE)
    CLOSEOUT, FENDER, REAR, RH (PEARL WHITE)
  • 4
    5451016-677 CLOSEOUT, FENDER, REAR, RH (CRYSTAL BLACK)
    CLOSEOUT, FENDER, REAR, RH (CRYSTAL BLACK)
  • 5
    5814095 SEAL, FOAM
    SEAL, FOAM
  • 6
    5451015-675 CLOSEOUT, FENDER, REAR, LH (PEARL WHITE)
    CLOSEOUT, FENDER, REAR, LH (PEARL WHITE)
  • 6
    5451015-677 CLOSEOUT, FENDER, REAR, LH (CRYSTAL BLACK)
    CLOSEOUT, FENDER, REAR, LH (CRYSTAL BLACK)
  • 7
    1021001 BRKT., CLOSEOUT, FENDER, LH
    BRKT., CLOSEOUT, FENDER, LH
  • 7
    1021002 BRKT., CLOSEOUT, FENDER, RH
    BRKT., CLOSEOUT, FENDER, RH
  • 8
    7518591 SCREW
    SCREW
  • 9
    7081305 CLIP-U SPEED NUT
    CLIP-U SPEED NUT
  • 10
    5415109 PAD, RUBBER
    PAD, RUBBER
  • 11
    5437772 GROMMET
    GROMMET
