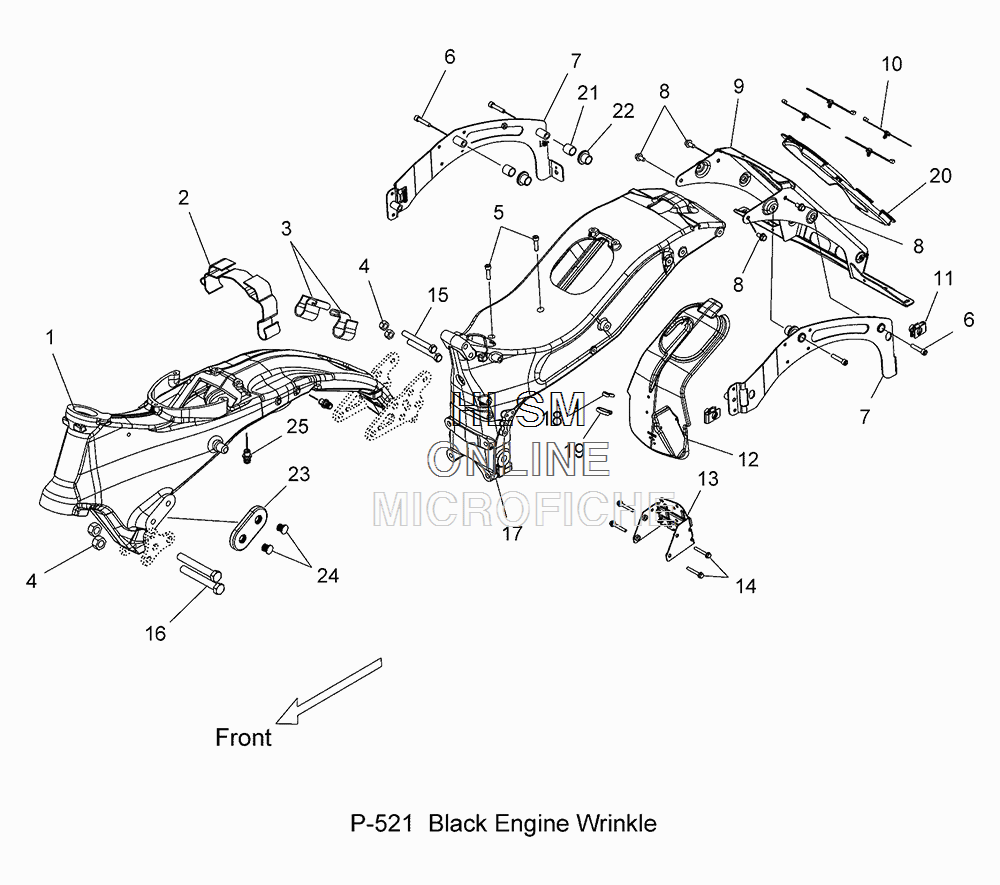

FRAME ASSEMBLY для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1016470-521 ASM., AIRBOX, FRAME, SUB, BLACK (INCL. 25)
    ASM., AIRBOX, FRAME, SUB, BLACK (INCL. 25)
  • 2
    5438092 CLIP, AIRBOX LINES
    CLIP, AIRBOX LINES
  • 3
    5521778 CLIP, EXTRUDED, HARNESS
    CLIP, EXTRUDED, HARNESS
  • 4
    7547232 NUT
    NUT
  • 5
    7517361 SCREW
    SCREW
  • 6
    7518178 SCREW
    SCREW
  • 7
    1017862 BRACKET, SB, LH
    BRACKET, SB, LH
  • 7
    1017863 BRACKET, SB, RH
    BRACKET, SB, RH
  • 8
    7519005 SCREW
    SCREW
  • 9
    1017822-329 SUBSTRUCTURE, REAR, BLACK
    SUBSTRUCTURE, REAR, BLACK
  • 10
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 11
    7547748 NUT-U TYPE, M10, SHORT
    NUT-U TYPE, M10, SHORT
  • 12
    5813569 FLAP, DEBRIS
    FLAP, DEBRIS
  • 13
    1017358 BRACKET, CRUISE CONTROL
    BRACKET, CRUISE CONTROL
  • 14
    7517950 SCREW
    SCREW
  • 15
    7518125 SCREW
    SCREW
  • 16
    7519028 SCREW
    SCREW
  • 17
    5136323-521 FRAME, MAIN, REAR, BLACK
    FRAME, MAIN, REAR, BLACK
  • 18
    7670102 CLIP, SILENCER
    CLIP, SILENCER
  • 19
    7081645 CLIP
    CLIP
  • 20
    5438964 PANEL, SHIELD, DEBRIS
    PANEL, SHIELD, DEBRIS
  • 21
    5438724 BUSHING
    BUSHING
  • 22
    5438725 BUSHING, FLANGED
    BUSHING, FLANGED
  • 23
    5414106 COVER, HWY BAR MOUNT
    COVER, HWY BAR MOUNT
  • 24
    7670131 PLUG, NYLON
    PLUG, NYLON
  • 25
    5135322 FITTING
    FITTING
