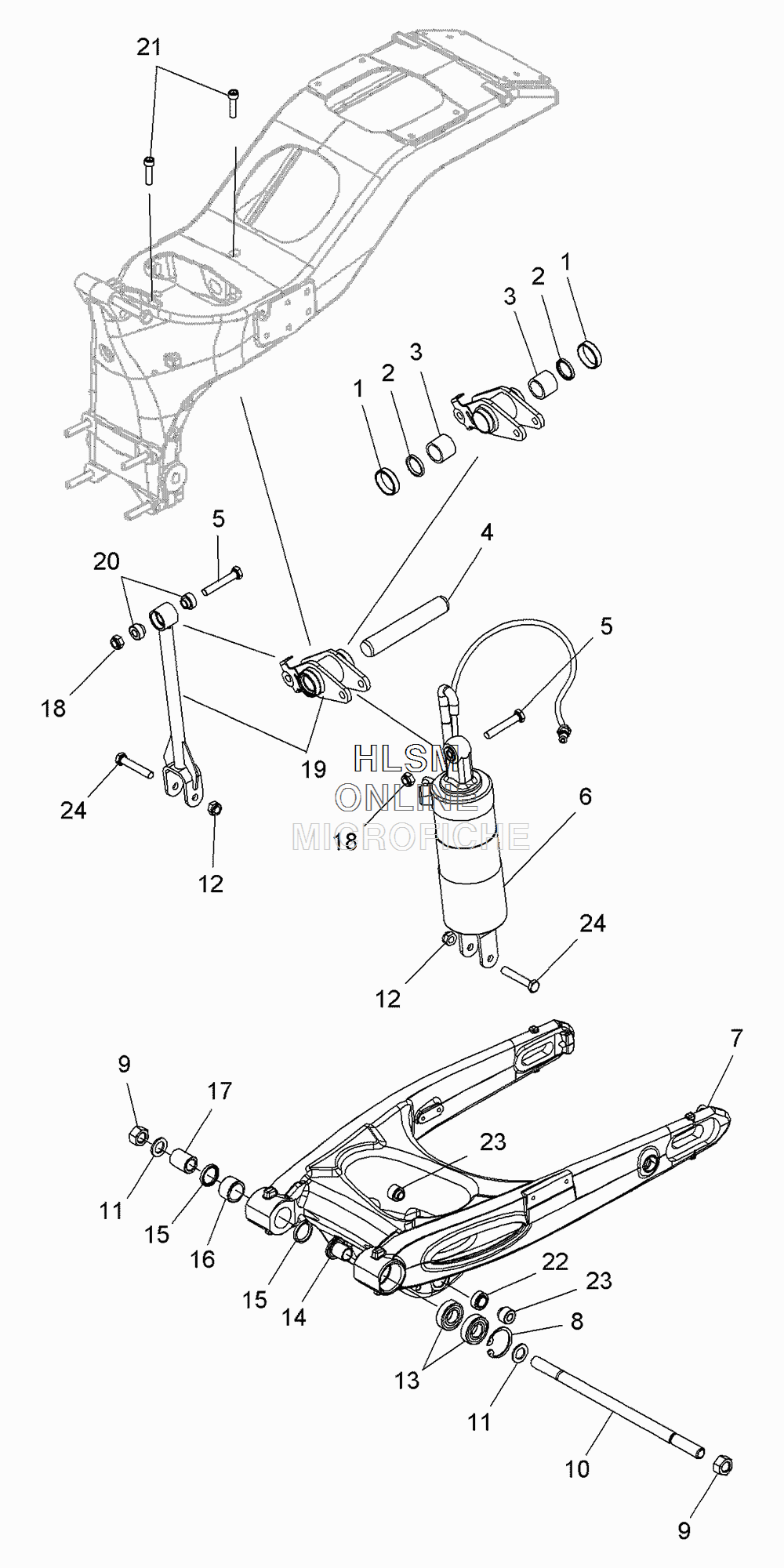

REAR SWING ARM AND SHOCK для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска`
-
№АртикулНазвание
-
13514545 BEARING, THRUSTBEARING, THRUST
-
23610096 SEALSEAL
-
33514544 BEARING, NEEDLE ROLLERBEARING, NEEDLE ROLLER
-
45135513 PIVOT, ROCKERPIVOT, ROCKER
-
57517988 SCREWSCREW
-
61543514 SHOCK, KYB, AIR, LNGSHOCK, KYB, AIR, LNG
-
71016712 ASM., SWING ARM W/BEARINGS (INCL. 8,12,13,15,16,22,23)ASM., SWING ARM W/BEARINGS (INCL. 8,12,13,15,16,22,23)
-
87670149 RING, RETAININGRING, RETAINING
-
97540001 NUTNUT
-
105137444 PIVOT, SUSPENSIONPIVOT, SUSPENSION
-
117556236 WASHER, FLATWASHER, FLAT
-
127547313 NUTNUT
-
133514414 BEARING, BALLBEARING, BALL
-
145631478 BUSHING, SWING ARMBUSHING, SWING ARM
-
153610096 SEALSEAL
-
163514413 BEARING, NEEDLE ROLLERBEARING, NEEDLE ROLLER
-
175137441 BUSHING, SWING ARM NEEDLE BEARINGBUSHING, SWING ARM NEEDLE BEARING
-
187547268 NUT, NYLOKNUT, NYLOK
-
192881022 KIT, PUSHROD, ROCKER, LOWKIT, PUSHROD, ROCKER, LOW
-
205137695 SPACER, BEARING, SPERICALSPACER, BEARING, SPERICAL
-
217517361 SCREWSCREW
-
223514547 BEARING, SPHERICALBEARING, SPHERICAL
-
235136092 SPACER, BEARING, SPHERICALSPACER, BEARING, SPHERICAL
-
247518291 SCREWSCREW
